Whiteline Front and Rear Sway Bar - Vehicle Kit to Suit BMW 1 Series E80, 3 Series E90

SKU: BBK004

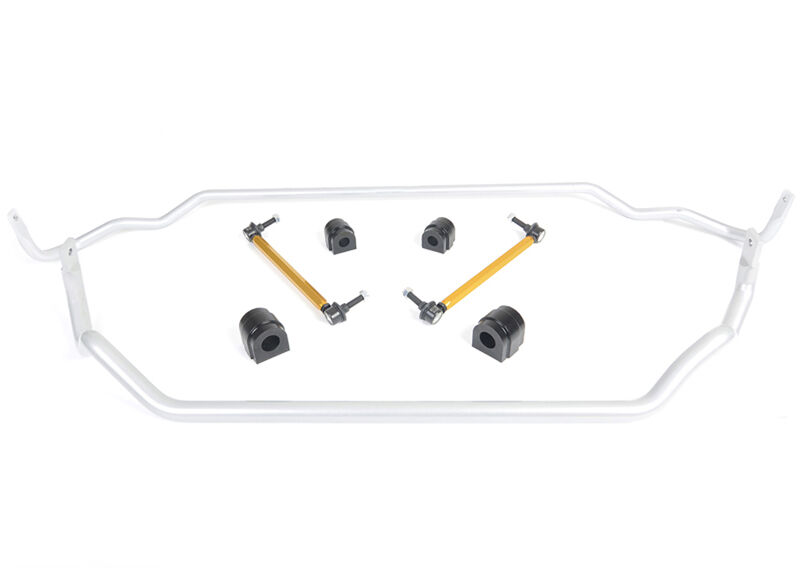

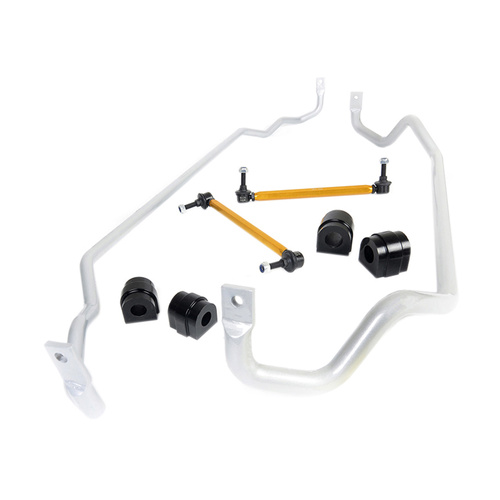

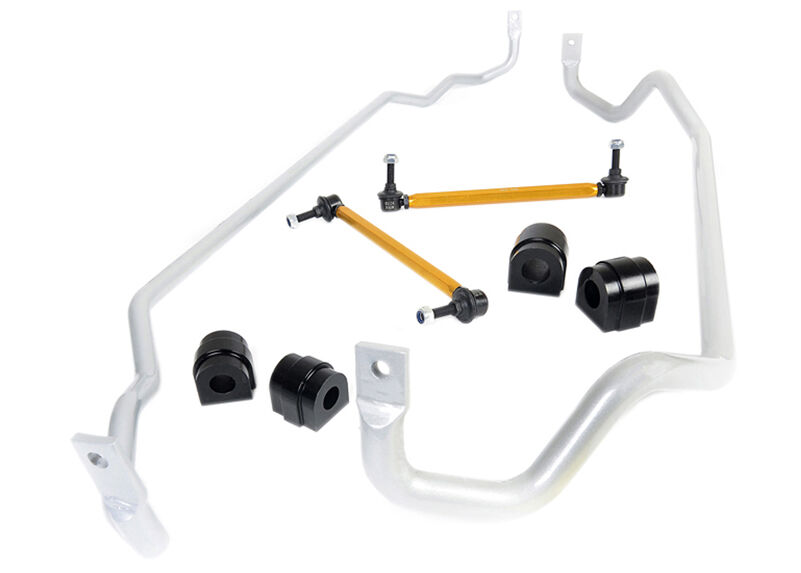

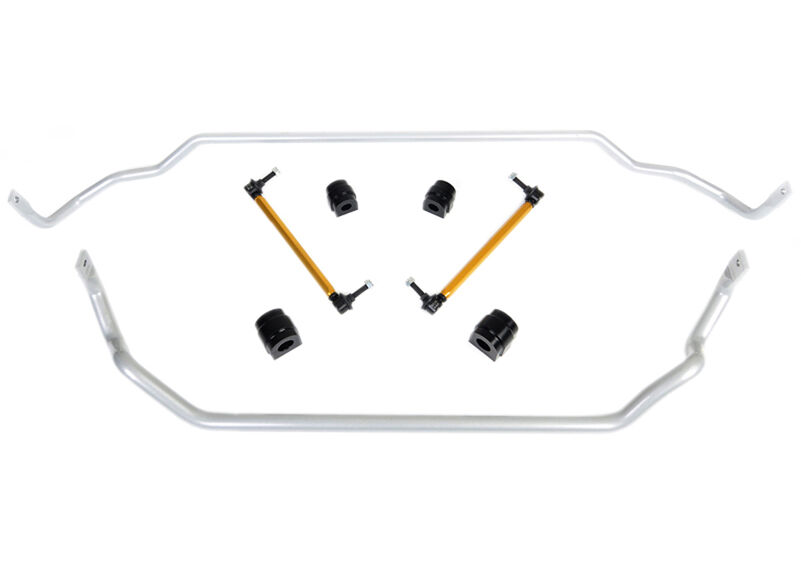

Kit Contains:

BBF43, BBR44 and KLC154 - essential to 'Activate more grip'

  • Front Sway bar - 27mm non adjustable
  • Rear Sway bar - 20mm non adjustable
  • Front Sway bar - link kit

Upgrading the sway bars on your vehicle will;

  • Minimising excess body roll
  • Dramatically improving handling performance
  • Tyre life
  • Steering response
  • Braking stability and response
  • No compromise to ride quality, NVH or comfort of the vehicle

We recommend fitting this kit as a complete handling upgrade.

Benefit Note: Engineered to 'Activate More Grip', BBK004 is a packaged solution designed to improve performance and enhance the driving experience of your vehicle. Boasting a 27mm fixed front sway bar and 20mm fixed rear sway bar, the kit is completed with high quality sway bar links and mounting accessories that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this Whiteline Sway Bar Kit.


Kit Specifications

Location Front Rear
Sway Bar BBF43 BBR44
Diameter (mm) 27 20
Diameter (in) Fraction 1 1/16" 51/64"
Diameter (in) Decimal 1.062 0.787
Material Solid Spring Steel Solid Spring Steel
Sway Bar Adjustment Type Non Adjustable Non Adjustable
Sway Bar Link Included Yes No

Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.


Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight11.8kg26.01lbs
Length120cm47.24"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUBBK004
Components Per2 Sway Bars, 2 Links, 4 Bushings
Kits Required1
Sub brandPerformance
Product NoteImproves grip and boosts stability; a complete, premium upgrade. Includes: 27mm non-adjustable Front Sway bar, 20mm non-adjustable Rear Sway bar & Front Sway bar link kit.
EAN9319924397396
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU BBK004
