Whiteline Front and Rear Lift Kit to Suit Jeep Wrangler JK

SKU: KLK008

Benefit Note: Whiteline Lift Kits are a quick and easy way to lift a standard height Dual or Single Cab 4WD Ute and still maintain the standard suspension. Whiteline lift kits have been put through their paces by our R and D to ensure the lift for each application maintains a safe working height for the vehicles standard suspension.

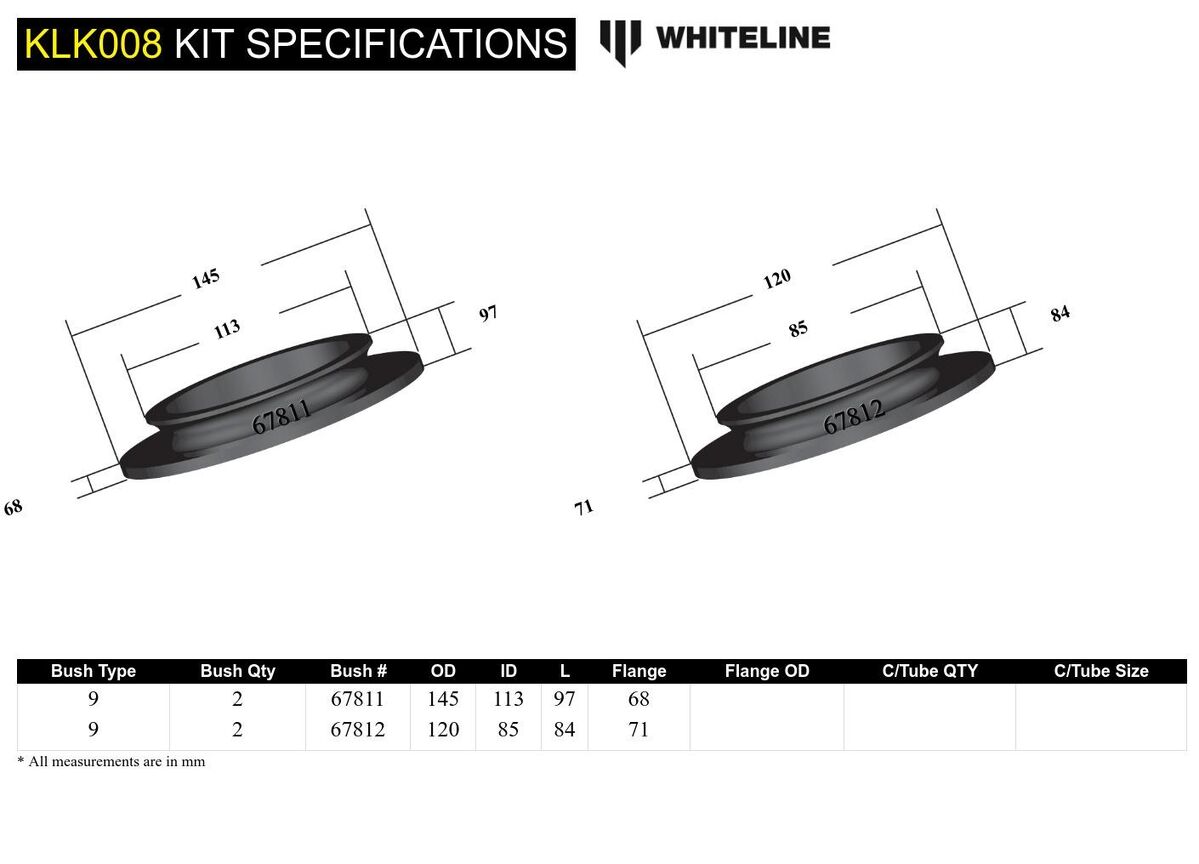

Kit Specifications

Bush Type 9 - Coil Spring Seats And Spacer Bushing 9 - Coil Spring Seats And Spacer Bushing
Bush Quantity 2 mm 2 mm
OD (A) 145 mm 120 mm
ID (B) 113 mm 85 mm
Length (C) 97 mm 84 mm
Flange Thickness (D) 68 mm 71 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 9 - Coil Spring Seats And Spacer Bushing
Bushing Type 9 - Coil Spring Seats And Spacer Bushing

Bushing Design Dimensions (mm)

Bush Type 9 9
QTY 2 2
OD (A) 145 120
ID (B) 113 85
Length (C) 97.0 84.0
FL (D) 68 71
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 9

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight3.44kg7.58lbs
Length80cm31.5"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUKLK008
Components Per4 Bushings
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 4 Bushings
EAN9319924458769
  • Lifetime Warranty
Brand Whiteline
SKU KLK008
Unit Of Measure Kit
