Benefit Note: Whiteline bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

Kit Specifications

Bush Type	6 - Male/female Interconnecting Bushing	6 - Male/female Interconnecting Bushing	6 - Male/female Interconnecting Bushing	6 - Male/female Interconnecting Bushing	6 - Male/female Interconnecting Bushing	6 - Male/female Interconnecting Bushing
Bush Quantity	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
OD (A)	34.6 mm	47 mm	39.7 mm	34.6 mm	47 mm	39.7 mm
ID (B)	22 mm	25.4 mm	25.4 mm	22.2 mm	25.4 mm	25.4 mm
Length (C)	42.7 mm	46.6 mm	64 mm	33.3 mm	34 mm	38 mm
Flange Thickness (D)	33.2 mm	36.6 mm	54 mm	23.3 mm	22.5 mm	28.5 mm
Flange OD (E)	71.2 mm	87 mm	84 mm	64 mm	75 mm	59.3 mm
C/Tube Quantity	2 / 2 / 2	2 / 2 / 2	2 / 2 / 2	2 / 2 / 2	2 / 2 / 2	2 / 2 / 2
C/Tube ODxIDxL	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm
Similar Bushing Size	Click Here	Click Here	Click Here	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

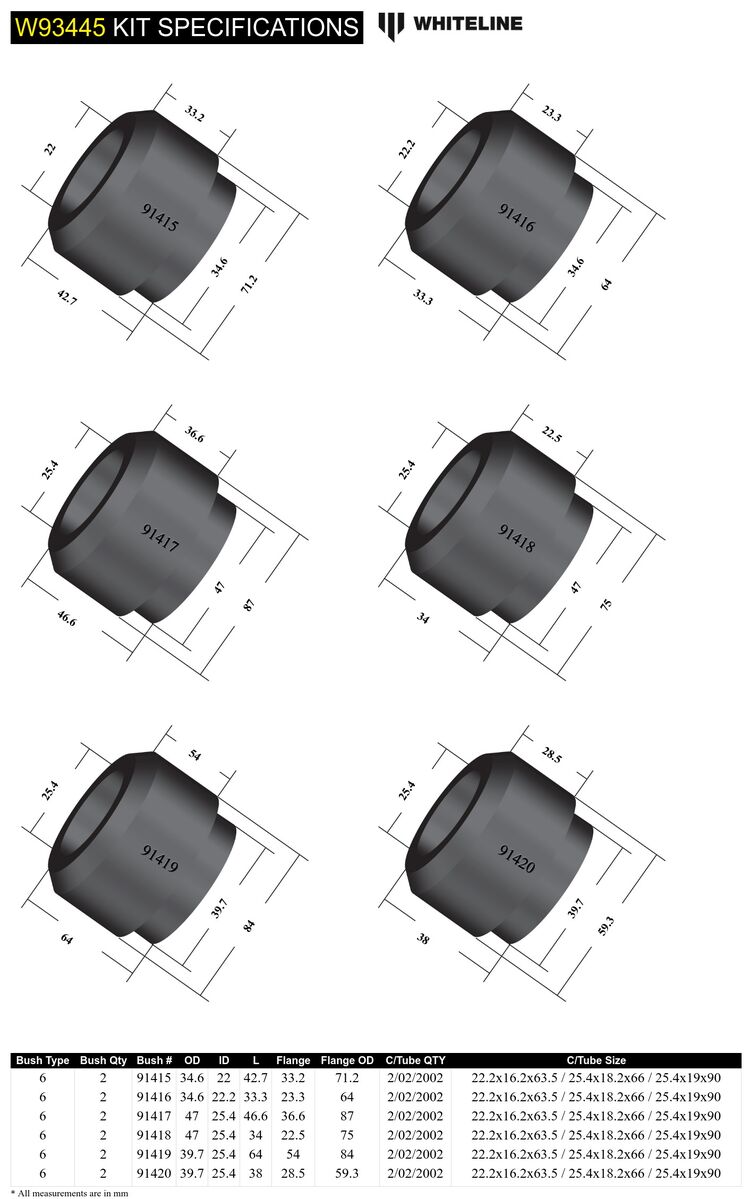

Bushing Design Dimensions (mm)

Bush Type	6	6	6	6	6	6
QTY	2	2	2	2	2	2
OD (A)	34.6	47	39.7	34.6	47	39.7
ID (B)	22	25.4	25.4	22.2	25.4	25.4
Length (C)	42.7	46.6	64.0	33.3	34.0	38.0
FL (D)	33.2	36.6	54	23.3	22.5	28.5
FLOD (E)	71.2	87	84	64	75	59.3
C/Tube Qty	2 / 2 / 2	2 / 2 / 2	2 / 2 / 2	2 / 2 / 2	2 / 2 / 2	2 / 2 / 2
C/Tube Size	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90	22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90
Similar Bushings	Click Here	Click Here	Click Here	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	4.7kg	10.36lbs
Length	40cm	15.75"
Width	10cm	3.94"
Height	20cm	7.87"

Misc. Product Information

More Information

SKU	W93445

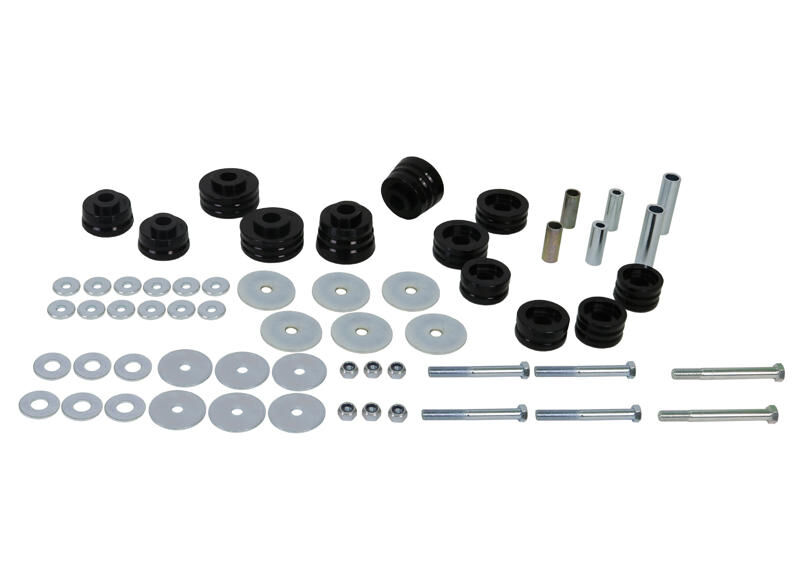

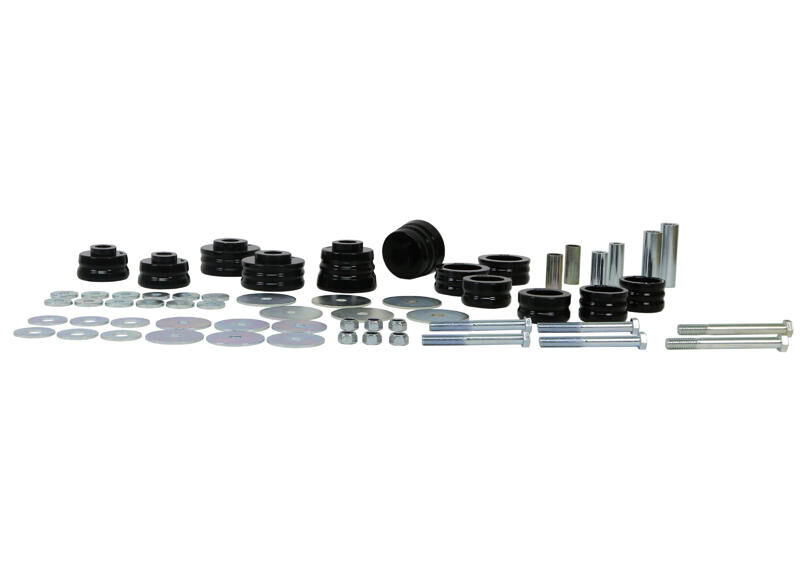

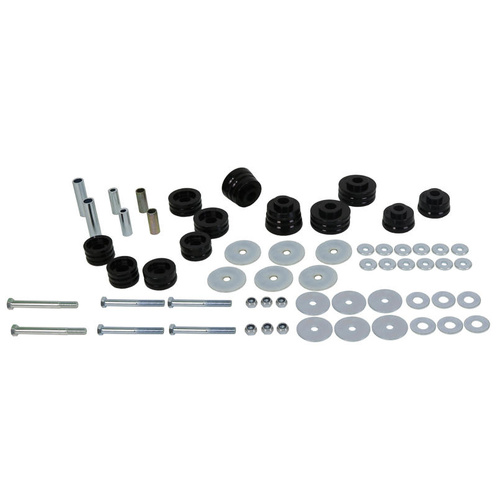

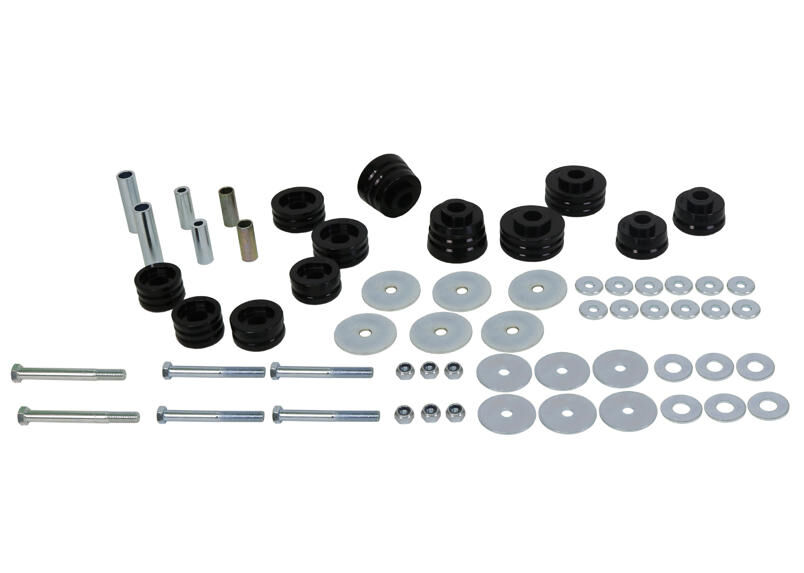

Components Per	12 Bushings, 6 Tubes, 6 Bolts, 30 Washers, 6 Nuts
Kits Required	1
Sub brand	Replacement
Product Note	Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 12 Bushings, 6 Tubes, 6 Bolts, 30 Washers & 6 Nuts
EAN	9319924461134
