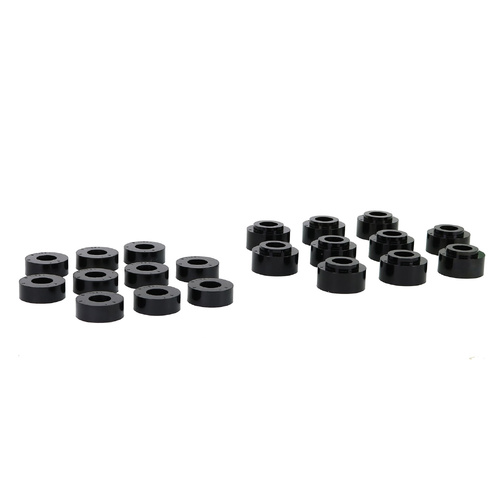

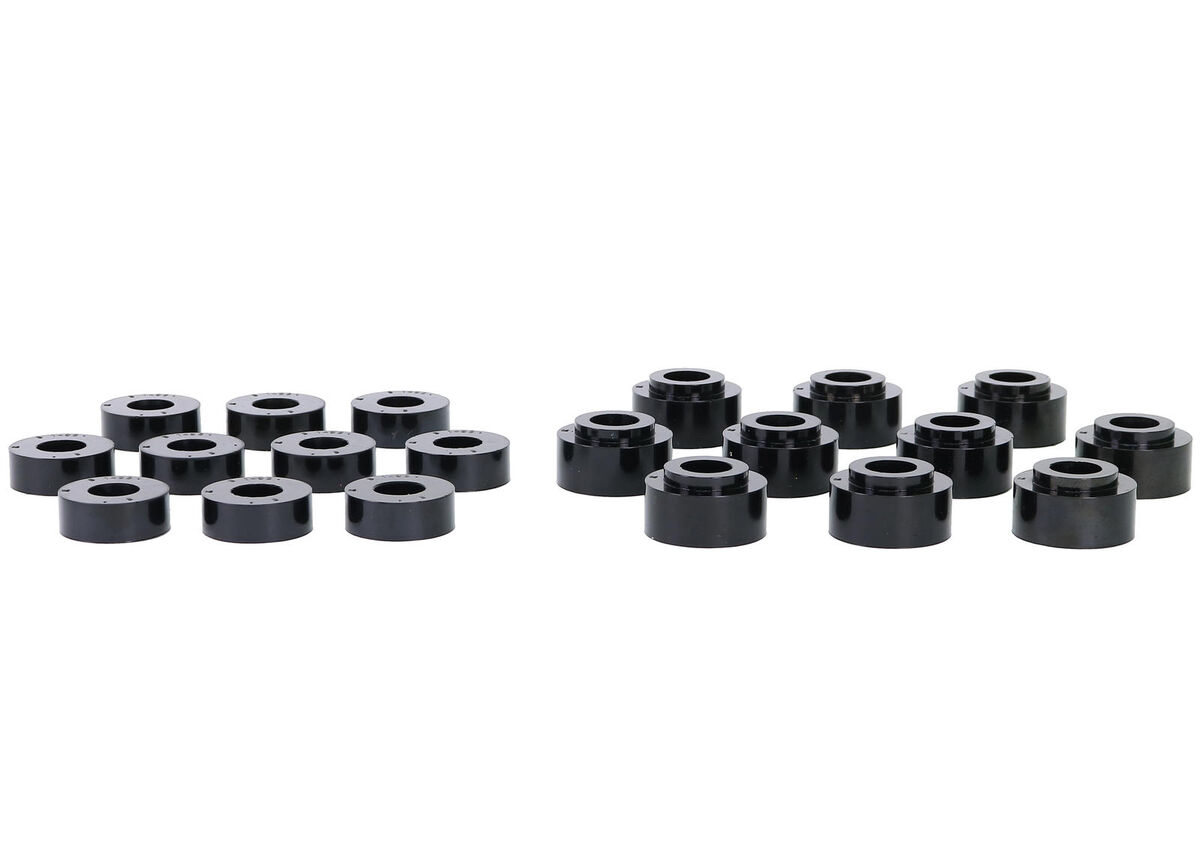

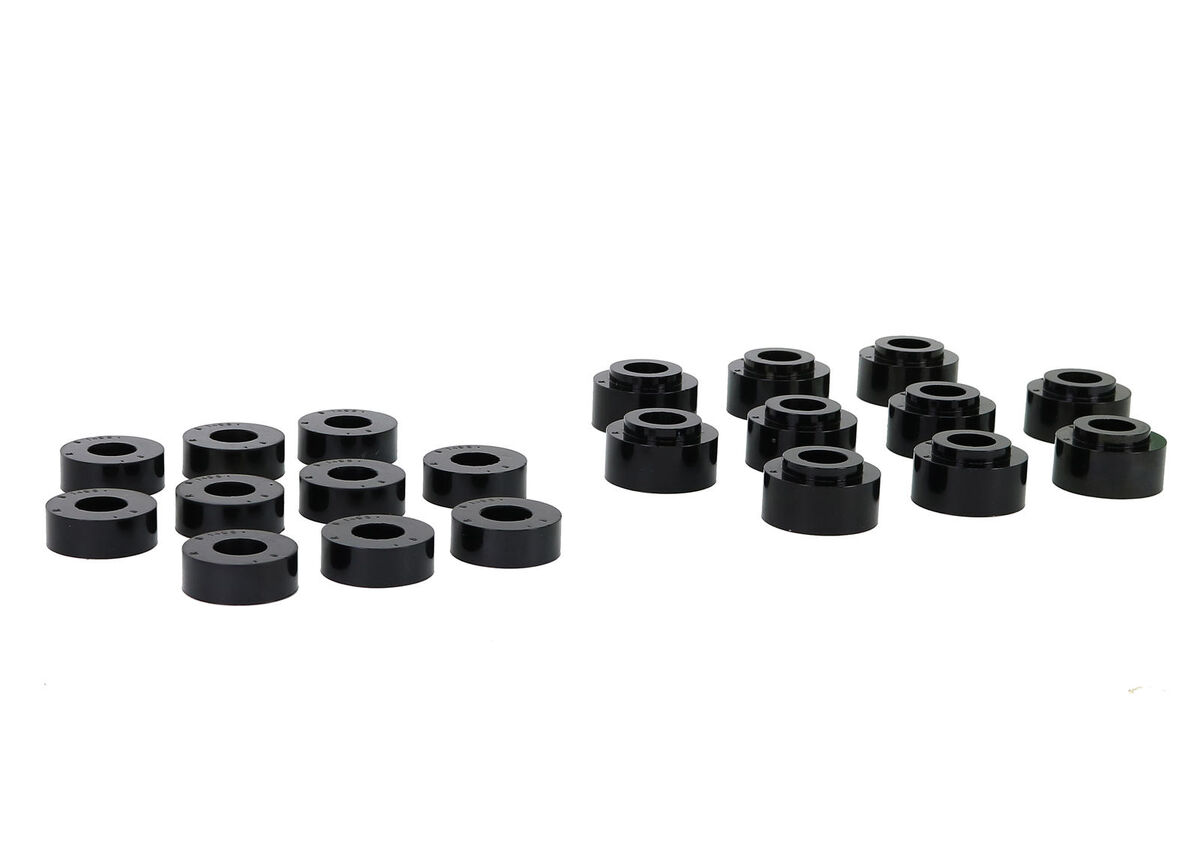

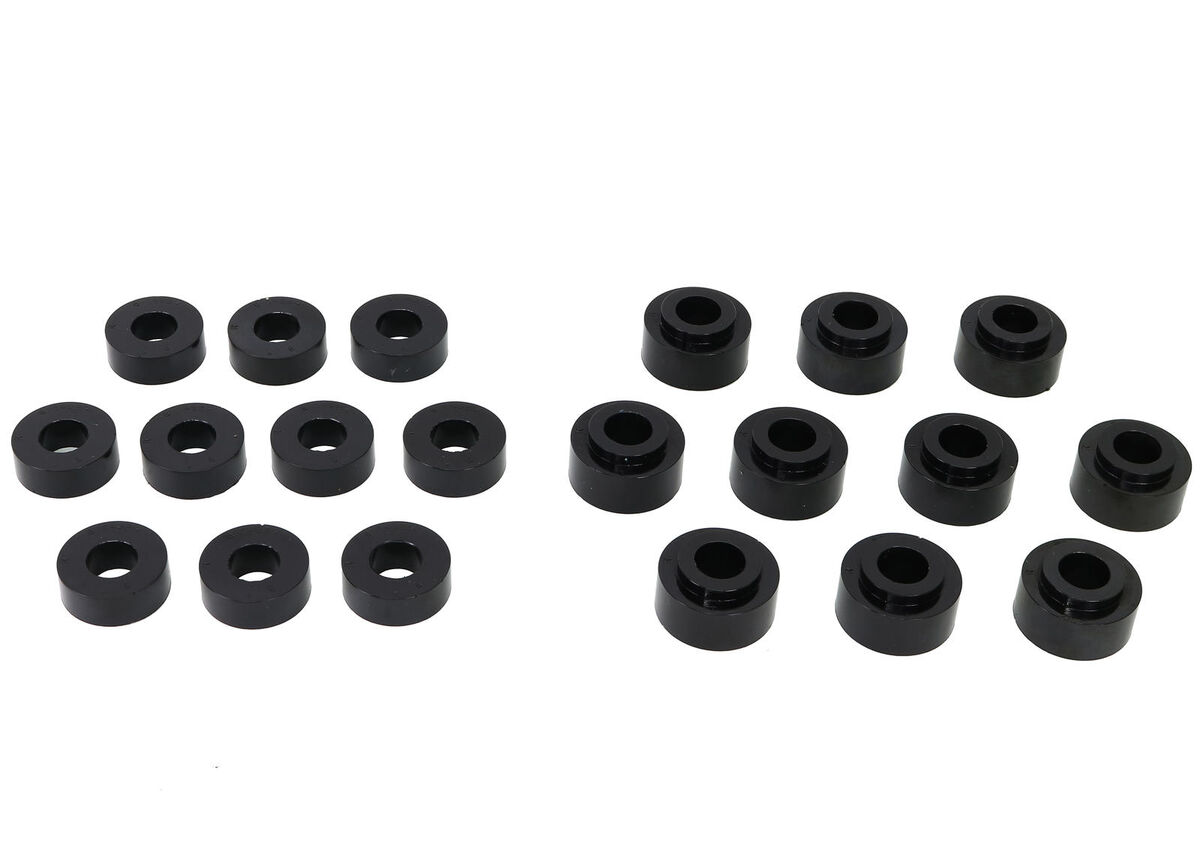

Whiteline Front and Rear Body Mount - Bushing Kit to Suit Holden HQ-HZ

SKU: W91498

Benefit Note: Whiteline bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.


Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot 7 - Pin Bush With & Without Spigot
Bush Quantity 10 mm 10 mm
OD (A) AI=51.7 AII=35.8 mm 46.8 mm
ID (B) 22 mm 22 mm
Length (C) 22 mm 16.7 mm
Flange Thickness (D) 6 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 7 - Pin Bush With & Without Spigot

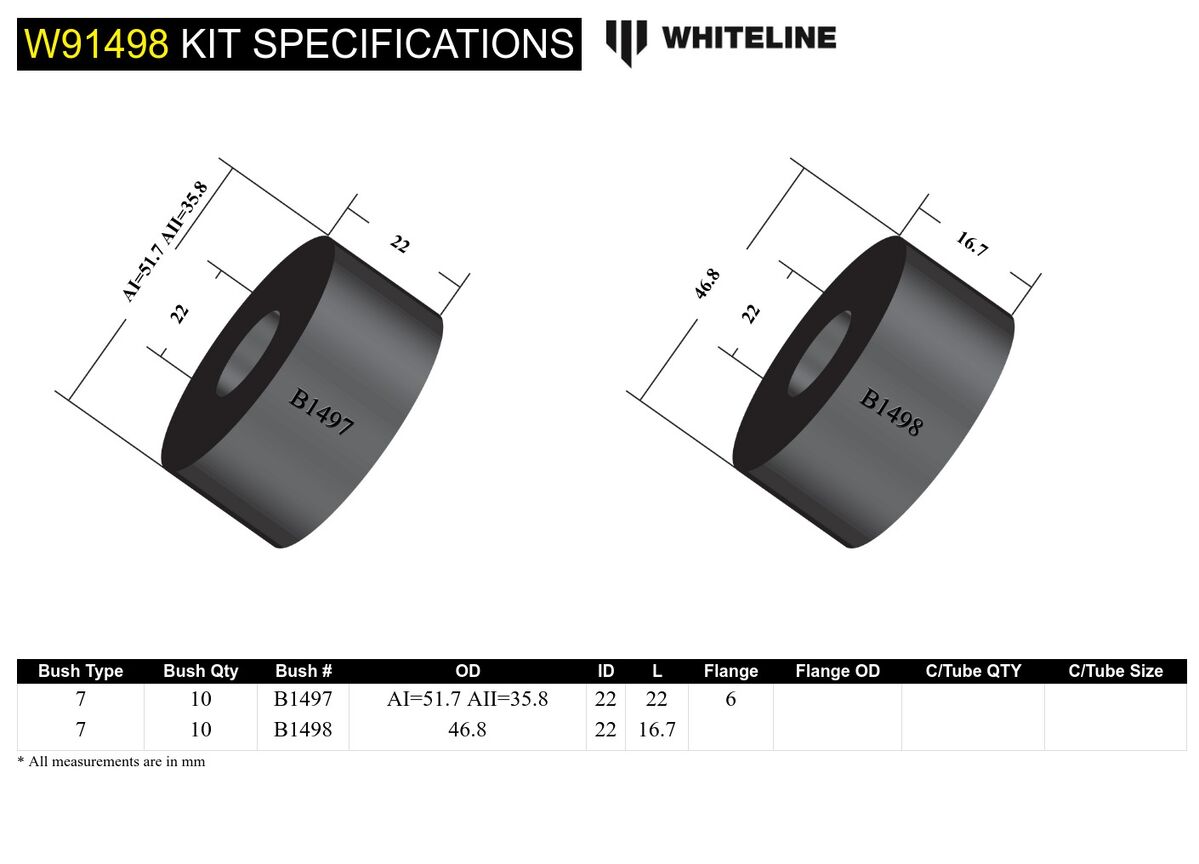

Bushing Design Dimensions (mm)

Bush Type 7 7
QTY 10 10
OD (A) AI=51.7 AII=35.8 46.8
ID (B) 22 22
Length (C) 22.0 16.7
FL (D) 6
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.8kg1.76lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW91498
Components Per20 Bushings
Kits Required1
Sub brandReplacement
Product NoteCreates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 20 Bushings
EAN9319924468881
  • Lifetime Warranty
Brand Whiteline
SKU W91498
Unit Of Measure Kit
