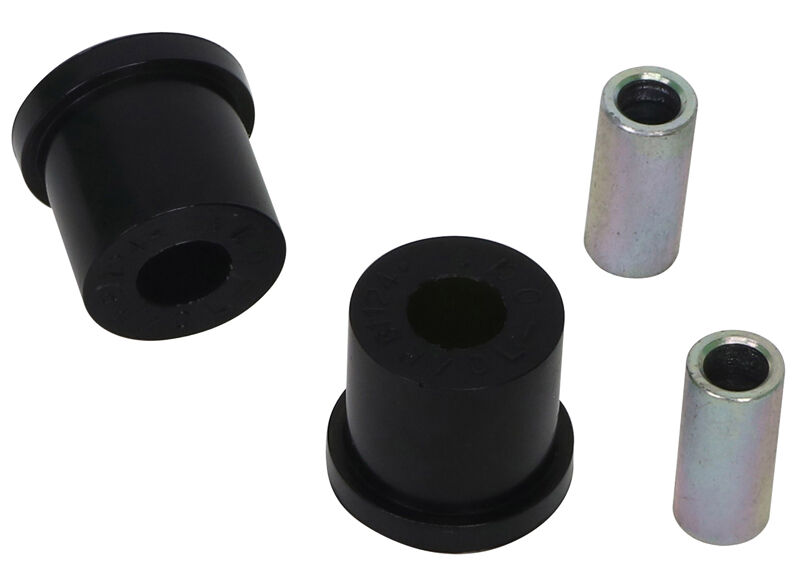

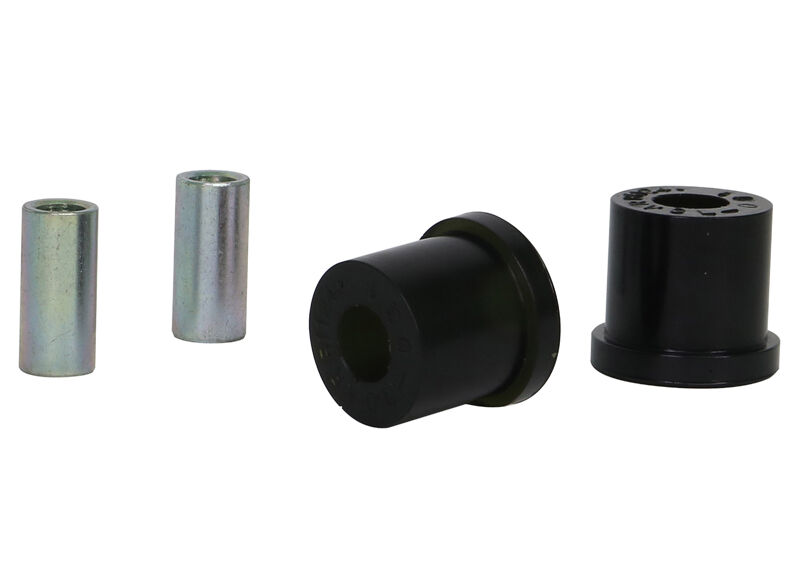

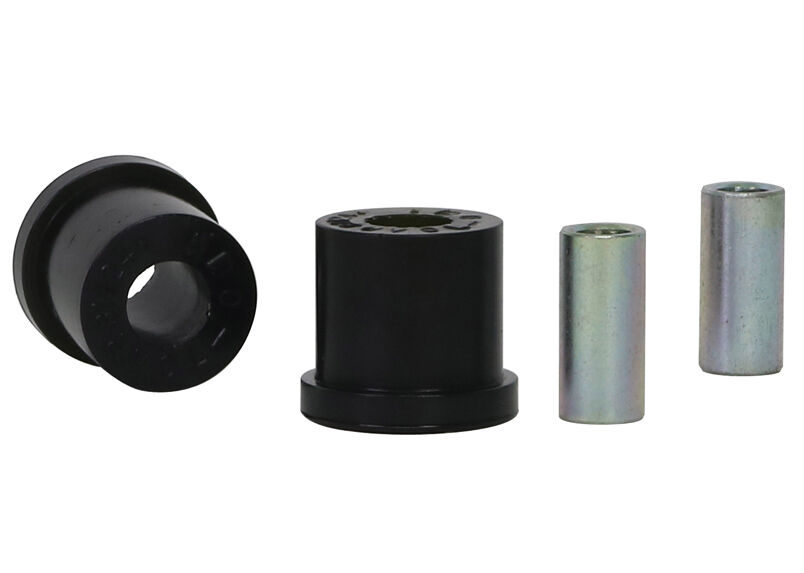

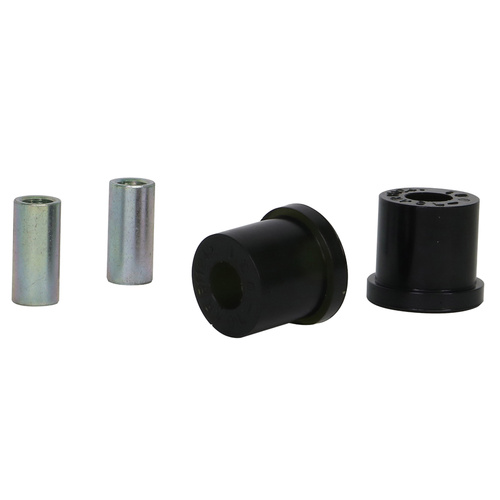

Whiteline Front Alternator/Aircon/Psteer Mount - Bushing Kit to Suit Volvo 240, 260, 740, 760 and 850

SKU: W91124

Benefit Note: Replace worn suspension bushings to as new condition and appearance with Whiteline black synthetic elastomer bushings.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 2 mm
OD (A) 27.4 mm
ID (B) 12.7 mm
Length (C) 28.5 mm
Flange Thickness (D) 5.2 mm
Flange OD (E) 31.7 mm
C/Tube Quantity 2
C/Tube ODxIDxL 12.7x8.5x28 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 2
OD (A) 27.4
ID (B) 12.7
Length (C) 28.5
FL (D) 5.2
FLOD (E) 31.7
C/Tube Qty 2
C/Tube Size 12.7x8.5x28
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.09kg0.2lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW91124
Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 2 Bushings & 2 Tubes
EAN9319924357628
  • Lifetime Warranty
Brand Whiteline
SKU W91124
Unit Of Measure Kit
