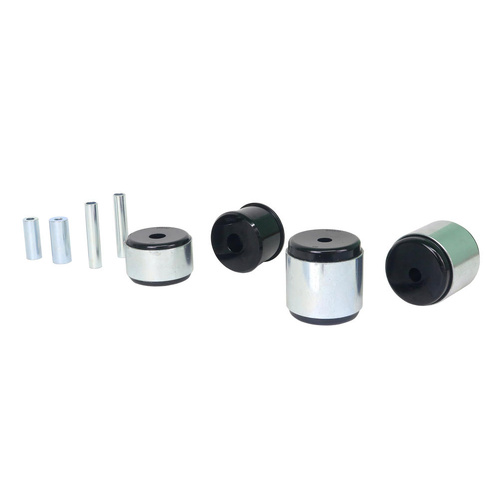

Whiteline Engine Mount - Bushing Kit to Suit Hyundai Excel X3

SKU: W93455

Benefit Note: Soft factory bushings whilst they do a good job of not transmitting engine vibration, they do create vague and unresponsiveness in the vehicles drive train. Under hard acceleration, the engine and transmission rotates, Whiteline's engine mount bushings give your car better throttle response as well as more crisp and defined gear shifts.


Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing 16 - Shell Without Flange Bushing 16 - Shell Without Flange Bushing
Bush Quantity 1 mm 1 mm 2 mm
OD (A) 70.1 mm 80.1 mm 80.1 mm
ID (B) 23.8 mm 19.8 mm 15.8 mm
Length (C) 55 mm 52 mm 82 mm
Flange Thickness (D) DI=8 DII=6 mm 6 mm 12.8 mm
Flange OD (E) 75 mm 75 mm 75 mm
C/Tube Quantity 1 / 2 / 1 1 / 2 / 1 1 / 2 / 1
C/Tube ODxIDxL 16x12.3x82 / 20x10.3x52 / 24x10.3x56 mm 16x12.3x82 / 20x10.3x52 / 24x10.3x56 mm 16x12.3x82 / 20x10.3x52 / 24x10.3x56 mm
Similar Bushing Size Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing
Bushing Type 16 - Shell Without Flange Bushing
Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 10 16 16
QTY 1 1 2
OD (A) 70.1 80.1 80.1
ID (B) 23.8 19.8 15.8
Length (C) 55.0 52.0 82.0
FL (D) DI=8 DII=6 6 12.8
FLOD (E) 75 75 75
C/Tube Qty 1 / 2 / 1 1 / 2 / 1 1 / 2 / 1
C/Tube Size 16x12.3x82 / 20x10.3x52 / 24x10.3x56 16x12.3x82 / 20x10.3x52 / 24x10.3x56 16x12.3x82 / 20x10.3x52 / 24x10.3x56
Similar Bushings Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10
Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight2.142kg4.72lbs
Length30cm11.81"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUW93455
Components Per3 Shell Bushings, 1 Bushing, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteBuilt tough for better durability and long-lasting performance; the perfect, complete upgrade. Includes: 3 Shell Bushings, 1 Bushing & 4 Tubes
EAN9319924477968
  • Lifetime Warranty
Brand Whiteline
SKU W93455
Unit Of Measure Kit
