Whiteline Bushing and Bearing Press Tool Kit

SKU: WTK001

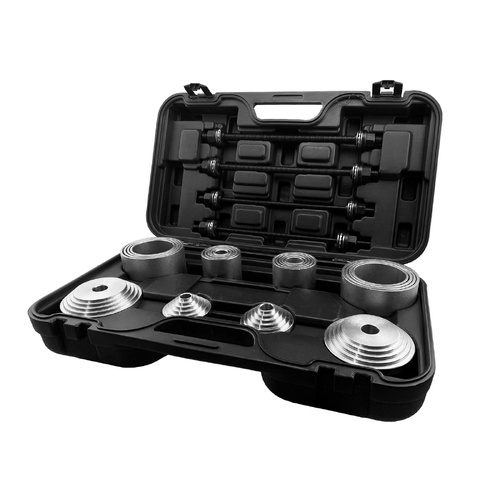

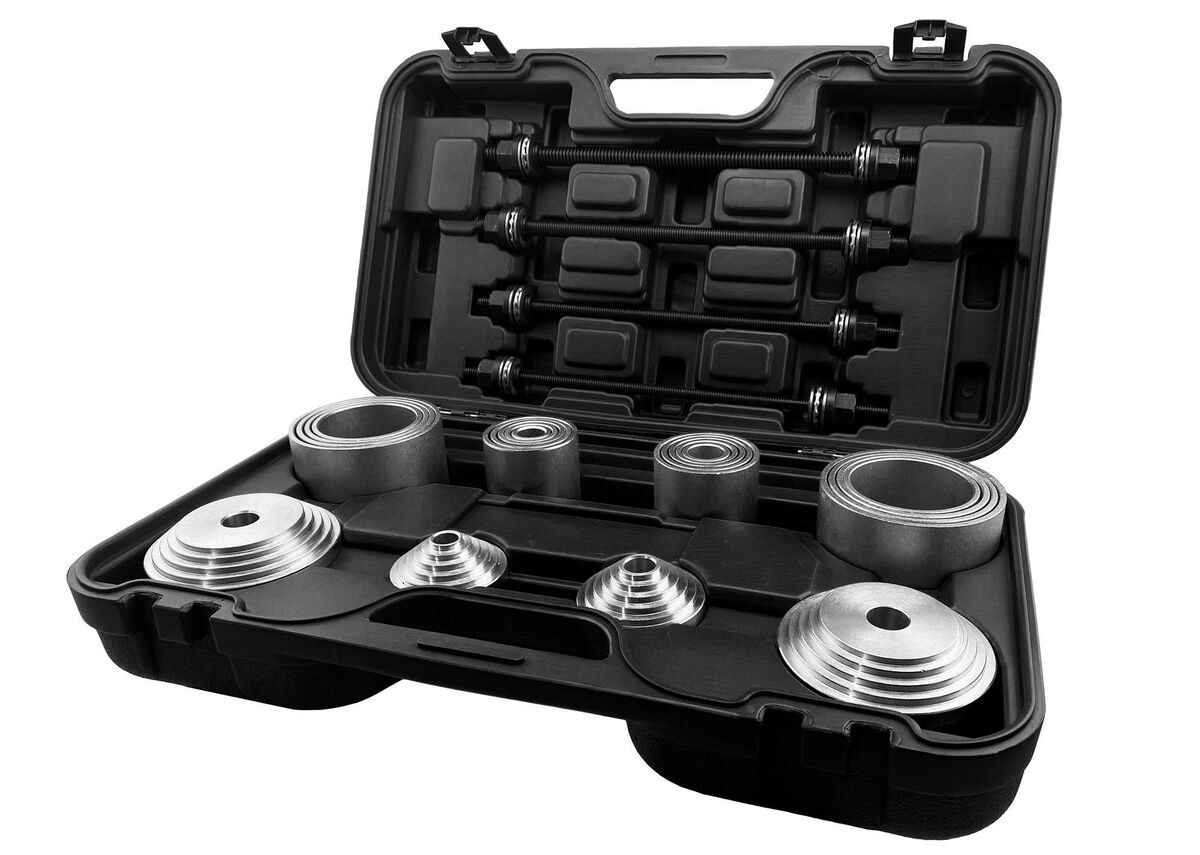

Kit Contains:

  • 18 x sleeves - 28mm-113mm diameter (5mm increments)
  • 4 x press plates
  • 4 x pulling spindles covering bolt sizes (M10, M12, M14, M16)
    • Rolled thread on spindles
    • Nuts with double washers and encapsulated lubricated ball bearings for strength and longevity (stops nut from binding and stripping thread)
Ideal for bushings, bearings, spherical joints or other applications. Can be used on workshop press or better yet on car simply and easily. Less force required to remove / install bushings, bearings and joints making use easy even without power tools Benefit Note: Most old and new suspension bushings are pressed in and out with old bearing shells, sockets or just anything you can find. This creates a safety issue, given that heat treated steel will shatter under stress. The assortment of sleeves that make up the Nolathane Press Tool Kit are made from mild steel to allow distortion or crush when over-pressed. These newly designed tools provide an easy way to install and remove Whiteline polyurethane bushings and aid in other workshop pressing requirements.


Kit Specifications

Bush Type
Bush Quantity
OD (A)
ID (B)
Length (C)
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register


Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight18kg39.68lbs
Length30cm11.81"
Width15cm5.91"
Height55cm21.65"

Misc. Product Information

More Information
SKUWTK001
Components Per18 Tubes, 4 Stepped Plates, 4 Threaded Rods, 4 Spare Bearings, 8 Spare Bearing Plates
Kits Required1
Sub brandReplacement
Product NoteEnables safe and efficient bushing removal and installation; ideal for workshop or field use. Includes: 18 sleeves (113mm in 5mm steps), 4 press plates & 4 pulling spindles (M10, M12, M14, M16).
EAN9319924459650
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU WTK001
Unit Of Measure Kit
