Whiteline Beam Axle - Bushing Kit to Suit Renault Megane BZ, KZ

SKU: KDT965

Benefit Note: A critical rear end bushing for any front wheel drive vehicle as it absorbs all the cornering and braking energy. Over compliance leads to early wear and tear, especially in performance applications. Reduce rear end cornering squirm and improve braking efficiencies with the Whiteline beam axle kit.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 67.5 mm 67.5 mm
ID (B) 29.8 mm 28.2 mm
Length (C) 43 mm 45 mm
Flange Thickness (D) 10 mm 12 mm
Flange OD (E) 80 mm 80 mm
C/Tube Quantity 2 / 2 2 / 2
C/Tube ODxIDxL 30x12.2x90 / 30x14.3x90.5 mm 30x12.2x90 / 30x14.3x90.5 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 67.5 67.5
ID (B) 29.8 28.2
Length (C) 43.0 45.0
FL (D) 10 12
FLOD (E) 80 80
C/Tube Qty 2 / 2 2 / 2
C/Tube Size 30x12.2x90 / 30x14.3x90.5 30x12.2x90 / 30x14.3x90.5
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight2.19kg4.83lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKDT965
Components Per4 Bushings, 4 Tubes
Kits Required1
Sub brandPerformance

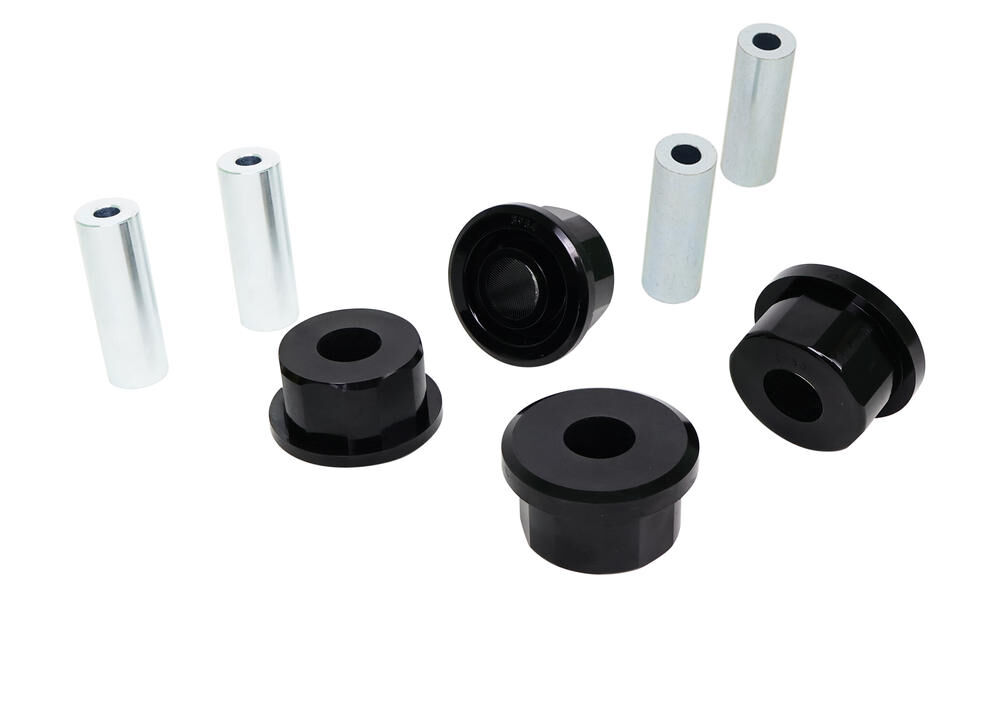

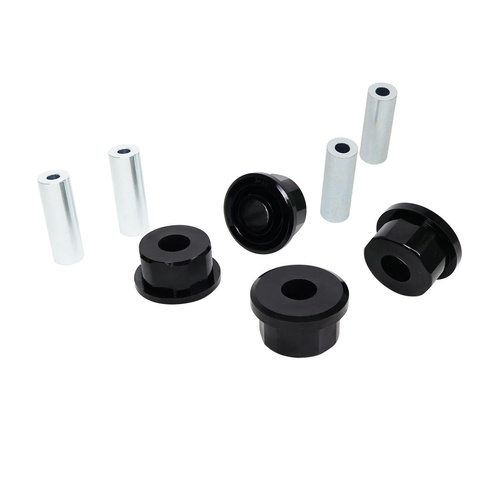

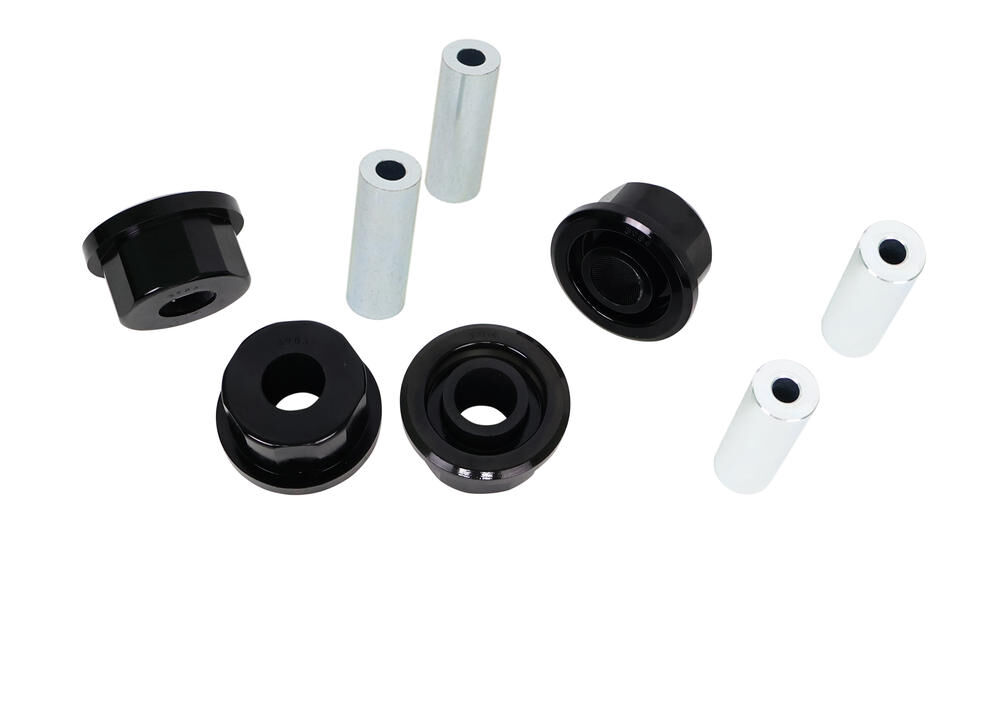

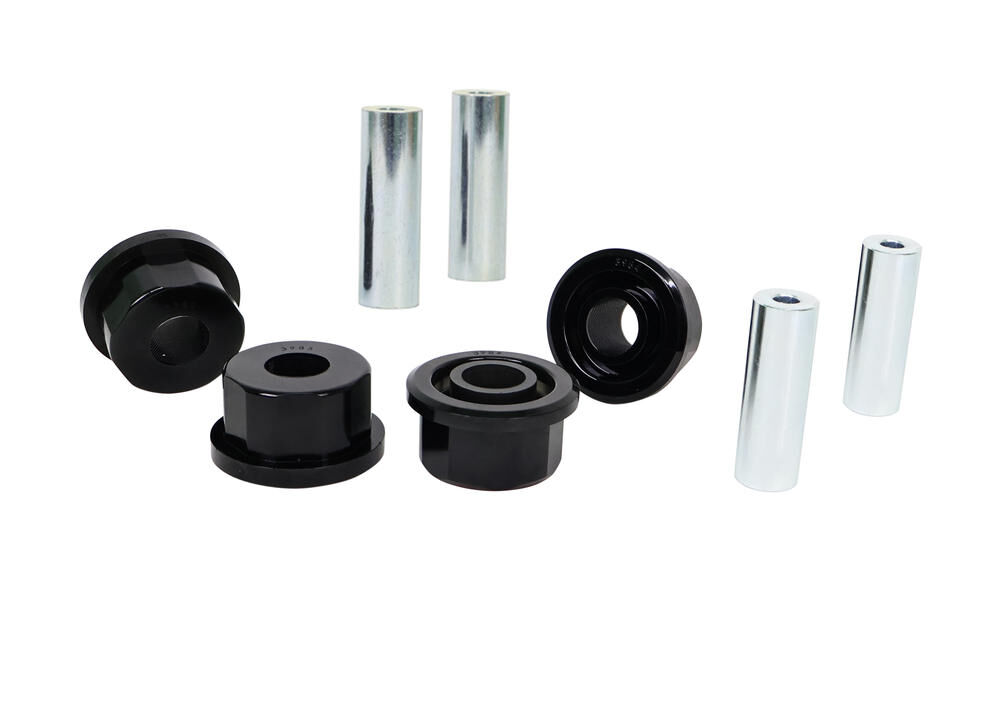

Product NoteBuilt tough for better durability and long-lasting performance; the perfect, complete upgrade. Includes: 4 Bushings & 4 Tubes
EAN9319924479191
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KDT965
Unit Of Measure Kit
