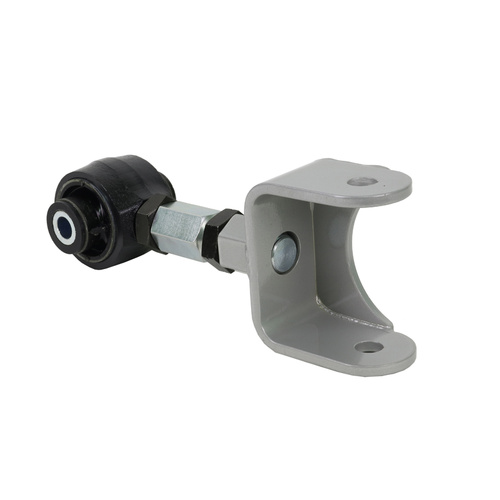

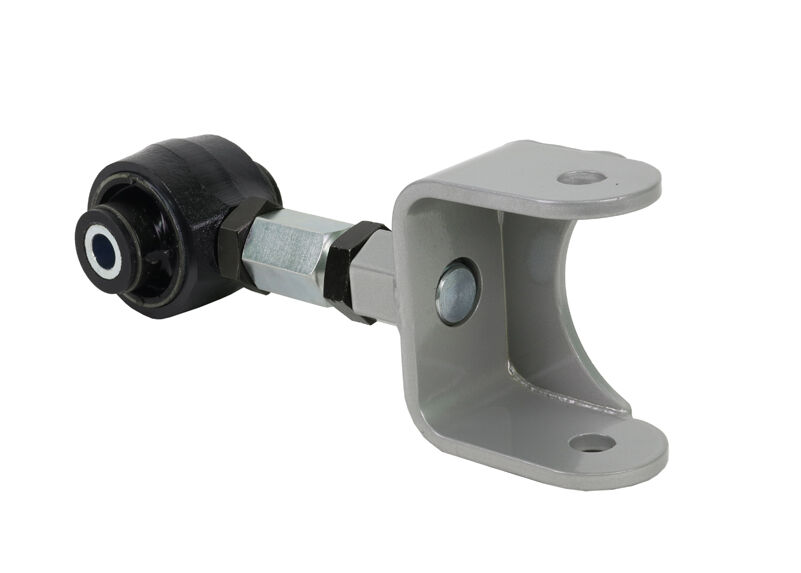

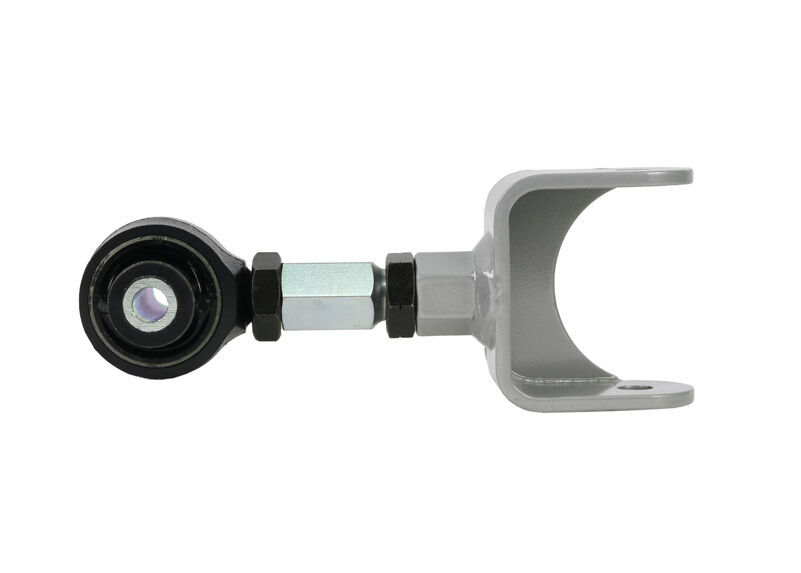

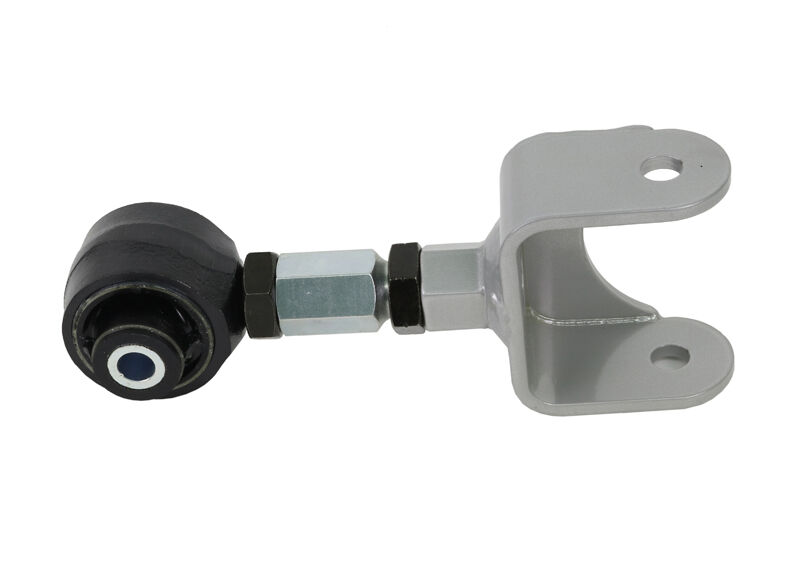

Whiteline Adjustable Rear Upper Control Arm to Suit Ford Mustang S197

SKU: KTA204

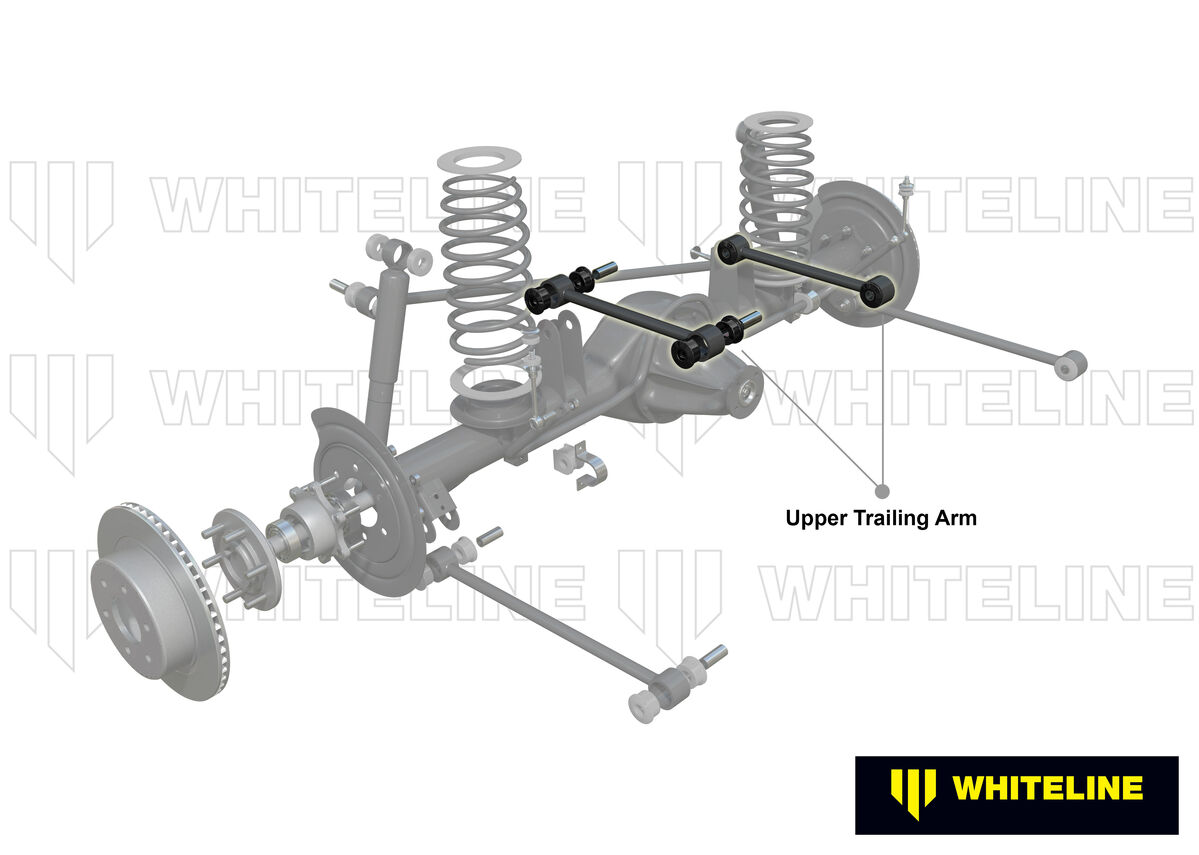

Benefit Note: The S197 chassis third link set up has suffered from brake hop and axle tramp with the stock arm and the ultra-compliant stock bushing is designed for comfort and leaves something desired for performance driving. Whiteline's upper control arm is built with 4130 Chromalloy and features the longer arm length which Ford incorporated in the 2011 change which reduces brake hop. The synthetic elastomer bushing adds increased stability to the rear end without the harshness of the commonly used bearing design and features and eccentric crush tube which allows pinion angle / instant centre adjustment without weakening the arm with a turnbuckle adjustment. The pinhole voiding feature allows the bushing to articulate without binding. The heavy duty mount adds to the increased rigidity of the arm and is designed to be universal for all years of the S197 chassis.


Kit Specifications

Arm Type Alignment
Units Single
Ball Joint Included Not Applicable
Adjustable (Arms) Yes
Alignment Type Pinion
Adjustment Type Turnbuckle
On Car Adjustable Yes

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight2.36kg5.2lbs
Length36cm14.17"
Width6cm2.36"
Height18cm7.09"

Misc. Product Information

More Information
SKUKTA204
Components Per1 Arm
Kits Required1
Sub brandPerformance
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 1 Arm
EAN9319924440467
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KTA204
Unit Of Measure Each
