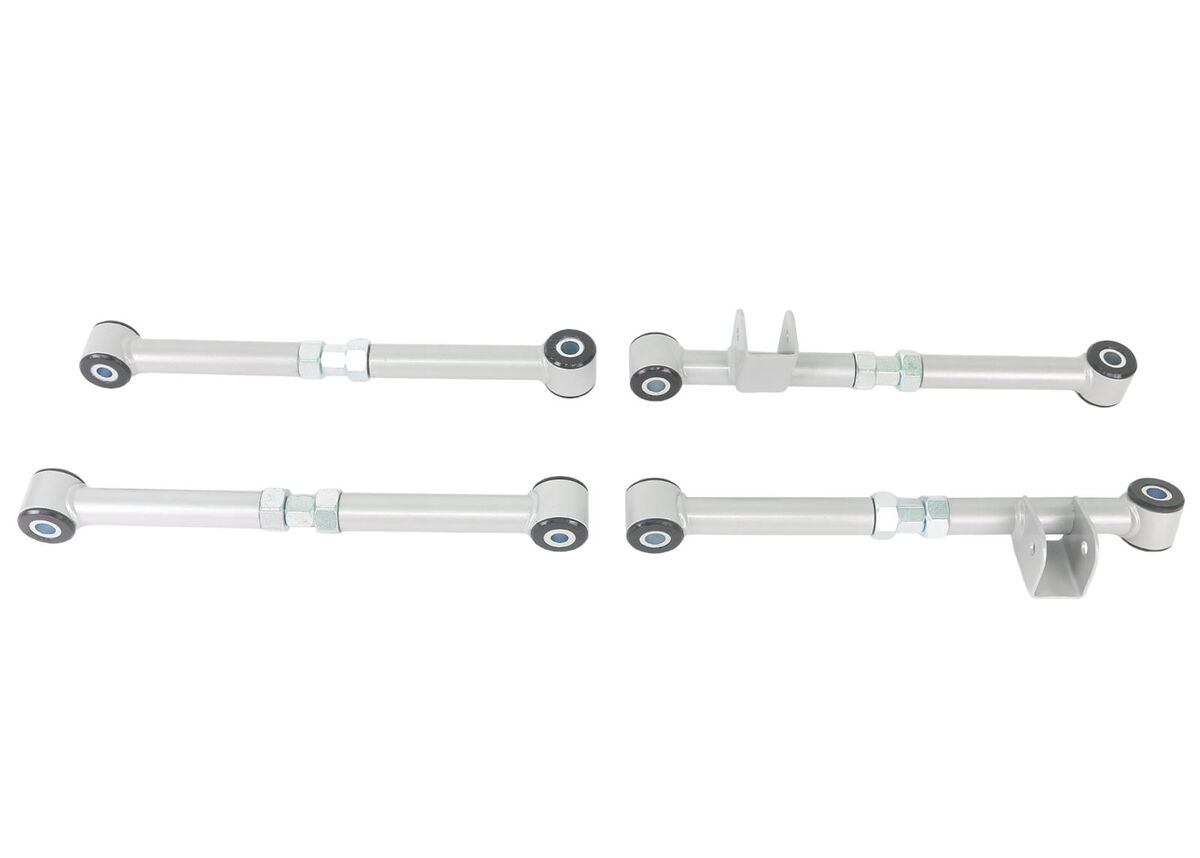

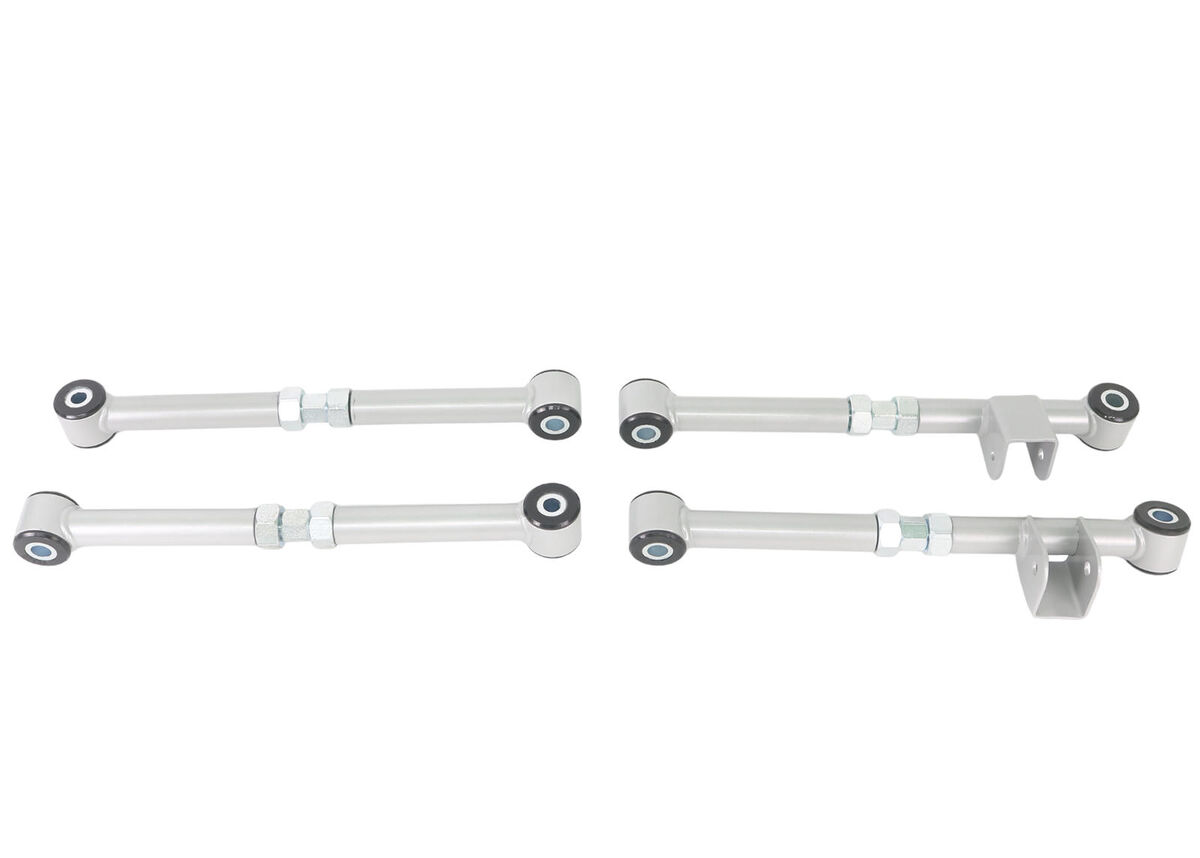

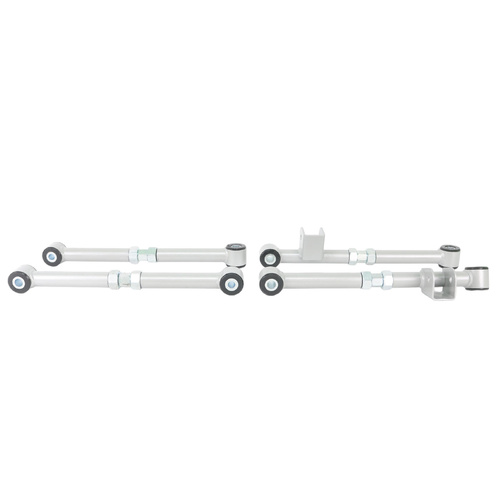

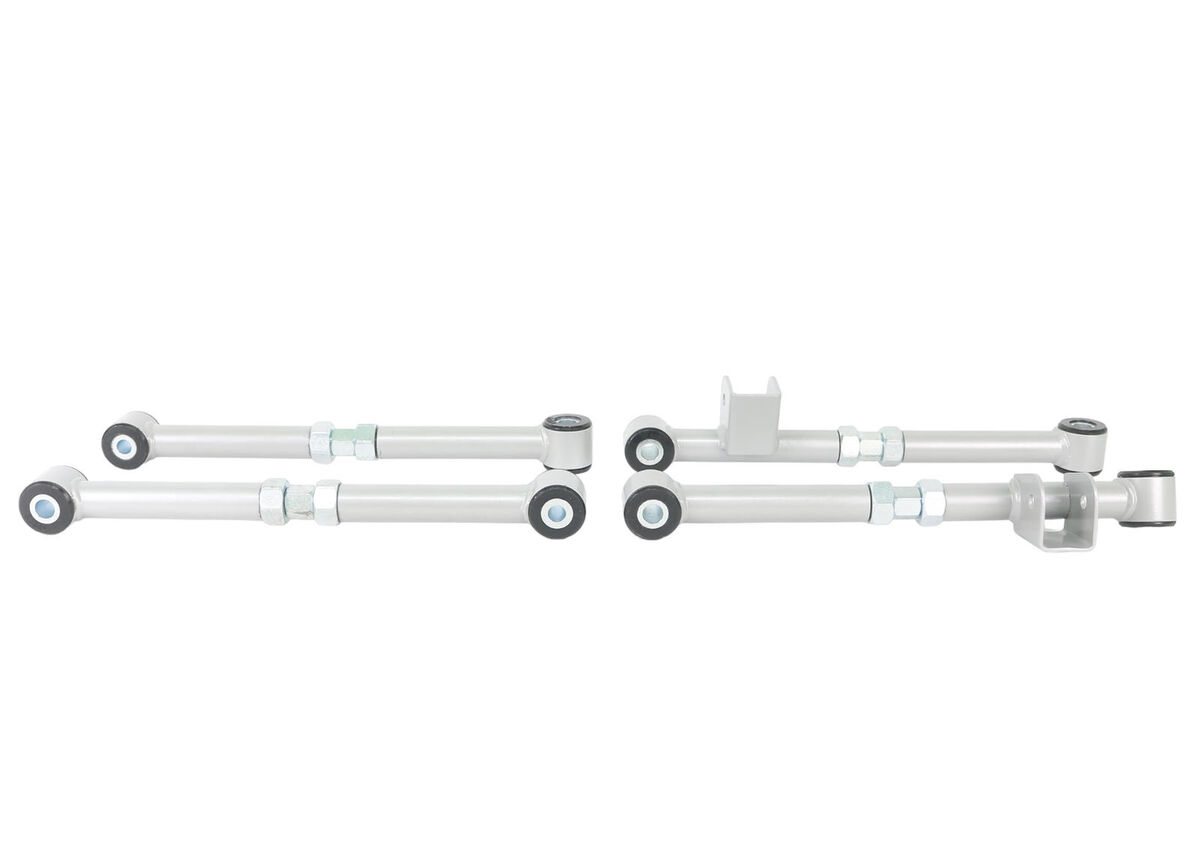

Whiteline Adjustable Rear Lateral Control Arm Kit to Suit Subaru Forester SF and Impreza GD incl WRX/STi

SKU: KTA109

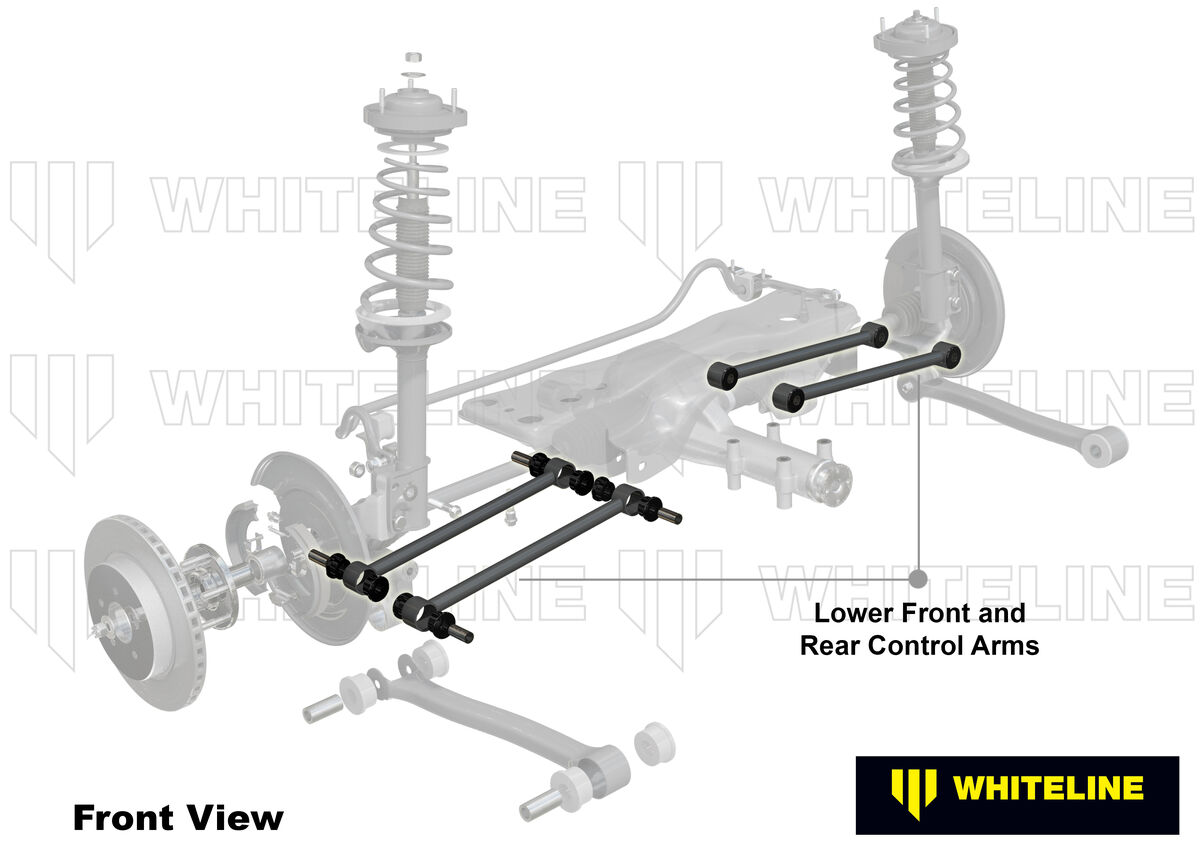

Benefit Note: This series of adjustable trailing arms are designed to modify factory camber - toe and track on the rear of Subaru Impreza and Liberty. Use KTA107 as an economical solution for lack of rear toe adjustment particularly on Impreza GD-GH (MY01- on) series. This kit is supplied as 2x adjustable front arms and matching rear arm poly bushings. KTA108 and KTA109 utilise 4 complete adjustable arms with performance low compliance bushings. The result is greater range and more precise adjustment and a more direct connection between body and rear suspension delivering more predictable dynamic behaviour. Left-right-hand thread adjustment turn-buckle nut allows for easy on-car adjustment.


Kit Specifications

Arm Type Alignment
Units Pair
Ball Joint Included Not Applicable
Adjustable (Arms) Yes
Alignment Type Camber / Toe
Adjustment Type Turnbuckle
On Car Adjustable Yes

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight10kg22.05lbs
Length59cm23.23"
Width20cm7.87"
Height10cm3.94"

Misc. Product Information

More Information
SKUKTA109
Components Per4 Arms
Kits Required1
Sub brandPerformance
Product NoteDelivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 4 Arms
EAN9319924343508
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KTA109
Unit Of Measure Kit
