Whiteline Adjustable Front Upper Control Arms to Suit Toyota Fortuner, Hilux GUN KUN and Foton Tunland 4wd

SKU: KTA342

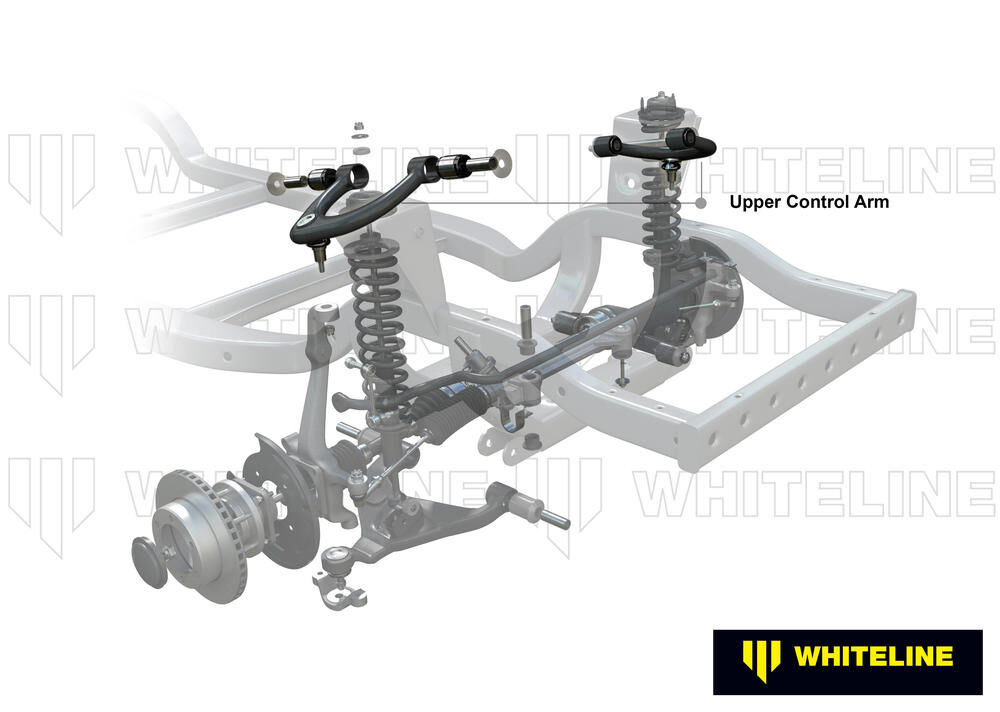

Benefit Note: A short fall of the modern day IFS 4wd is the adjustment range provided for successful wheel alignments, this becomes even more of an issue when the vehicle is lifted by more than 1 inch. Not only does the vehicle run into camber and caster issues, but ball joint articulation and clearance issues to the coil over strut at ride and droop height. The new Whiteline adjustable UCA (Upper Control Arm) is an all-in-one solution for any vehicle that has been lifted between 30mm and 70mm. Providing an increase between +0.5 to +3.5 degrees of caster and -1.5 to +1.5 degrees of camber increase (figures quoted are based off an approximate 50mm/ 2 inch) along with greater clearance to the coil over strut and more articulation of the arm by virtue of new maintenance free GIIRO bushing technology.


Kit Specifications

Arm Type Alignment
Units Pair
Ball Joint Included Yes
Adjustable (Arms) Yes
Alignment Type Camber / Caster
Adjustment Type Eccentric
On Car Adjustable Yes

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight11.5kg25.35lbs
Length17cm6.69"
Width34cm13.39"
Height42.5cm16.73"

Misc. Product Information

More Information
SKUKTA342
Components Per2 Arms
Kits Required1
Sub brandPerformance
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 2 Arms
EAN9319924475919
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KTA342
Unit Of Measure Each
