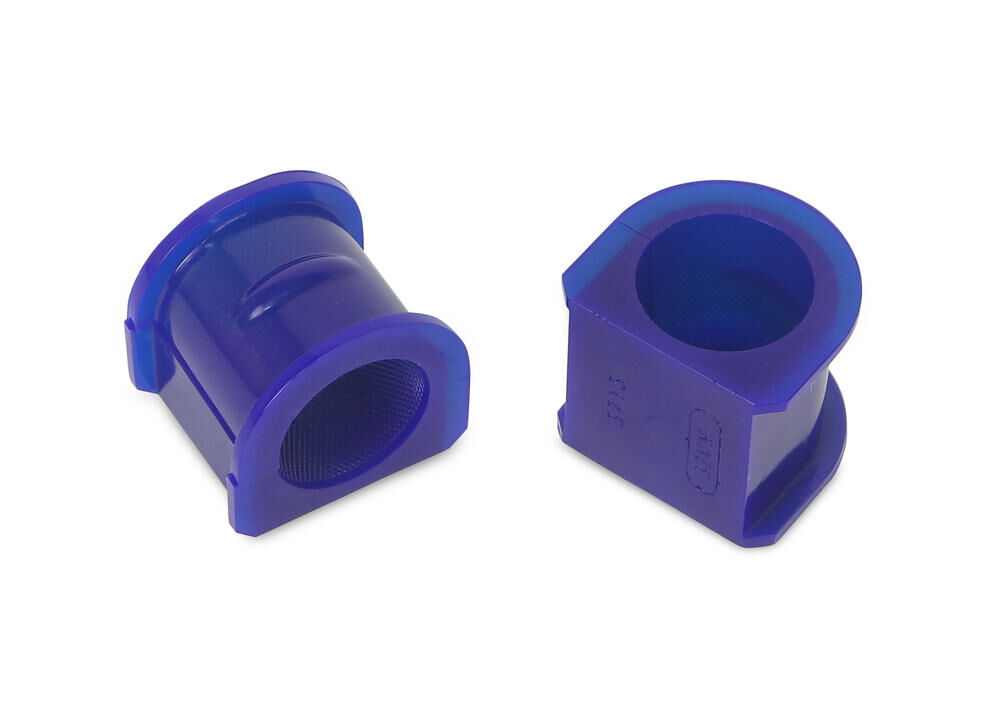

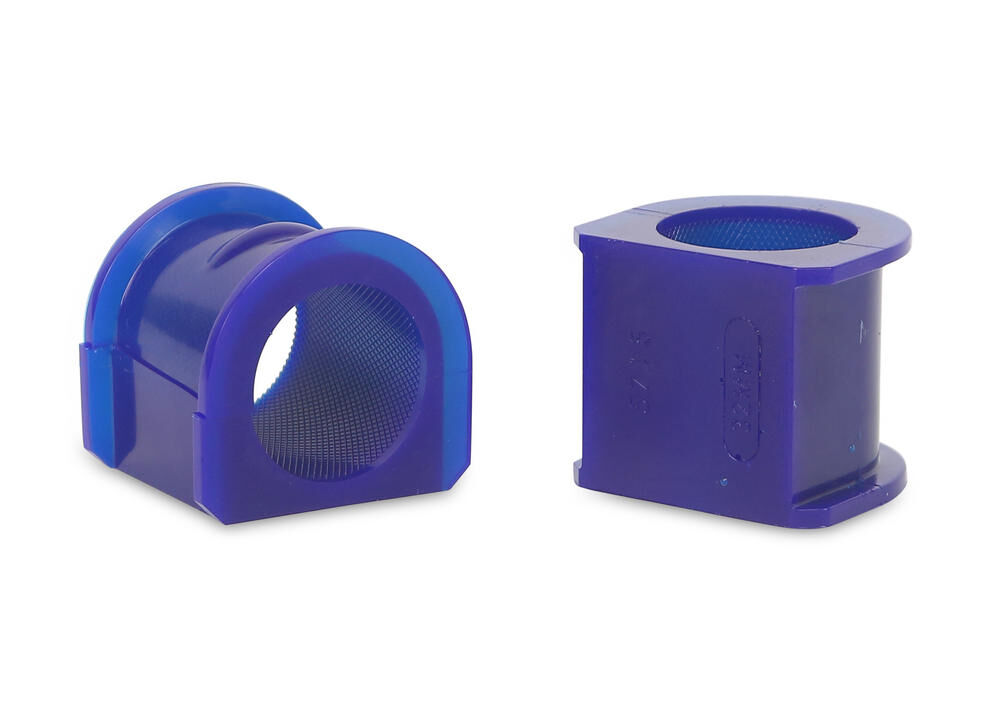

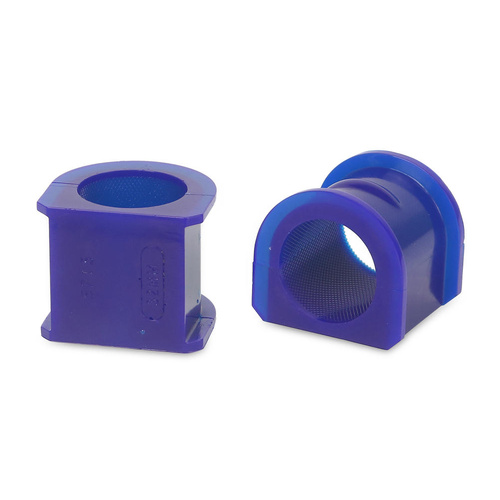

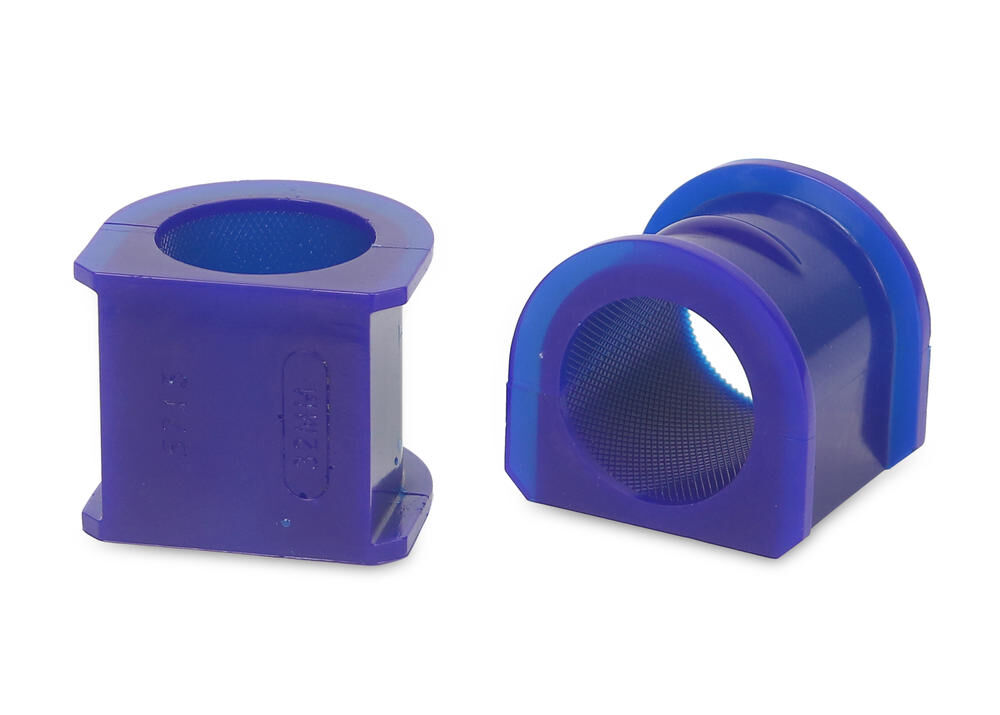

SuperPro Sway Bar Mount - Bushing Kit-32mm to Suit LDV D90 4wd

SKU: SPF5715-32K

Benefit Note: Sway Bar mount bushes are an important part of the whole sway bar system. Worn or rubber bushes in these locations lead to movement in the sway bar in unwanted directions that effect the effectiveness of the sway bar. An upgrade to SuperPro bushings can return lost sway bar performance and improve handling.


Kit Specifications

Bush Type 4 - D-bushing With Flange
Bush Quantity 2 mm
OD (A) 39.7 mm
ID (B) 32 mm
Length (C) 41 mm
Flange Thickness (D) 3 mm
Flange OD (E) 44.2 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register

Bushing Type 4 - D-bushing With Flange

Bushing Design Dimensions (mm)

Bush Type 4
QTY 2
OD (A) 39.7
ID (B) 32
Length (C) 41.0
FL (D) 3
FLOD (E) 44.2
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here SuperPro Suspensions Bushing Type & Size Register

Bushing Type 4

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.082kg0.18lbs
Length5cm1.97"
Width21cm8.27"
Height15.5cm6.1"

Misc. Product Information

More Information
SKU IconSKU
SPF5715-32K
Kit Contents IconKit Contents
2 Bushings
Kits Required IconKits Required
1
Fitting Position IconFitting Position
Rear Axle
Foot Note 3 IconFoot Note 3
lifetime warranty
Sub brand IconSub brand
SuperPro SPF
EAN IconEAN
9317745057154
Product Note IconProduct Note
Makes handling more predictable and reliable; a complete, premium upgrade. Includes: 2 Sway Bar Bushings
  • Lifetime Warranty
Brand SuperPro
SKU SPF5715-32K
Unit Of Measure Kit
