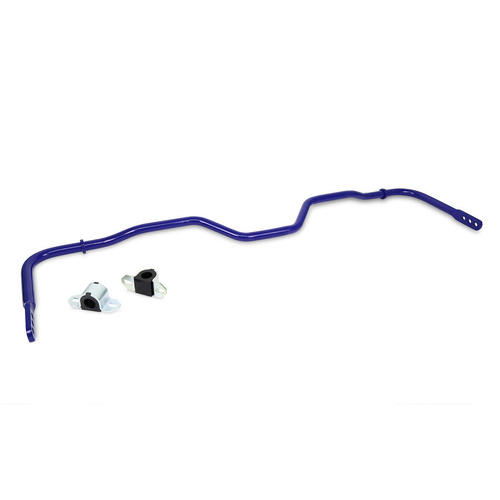

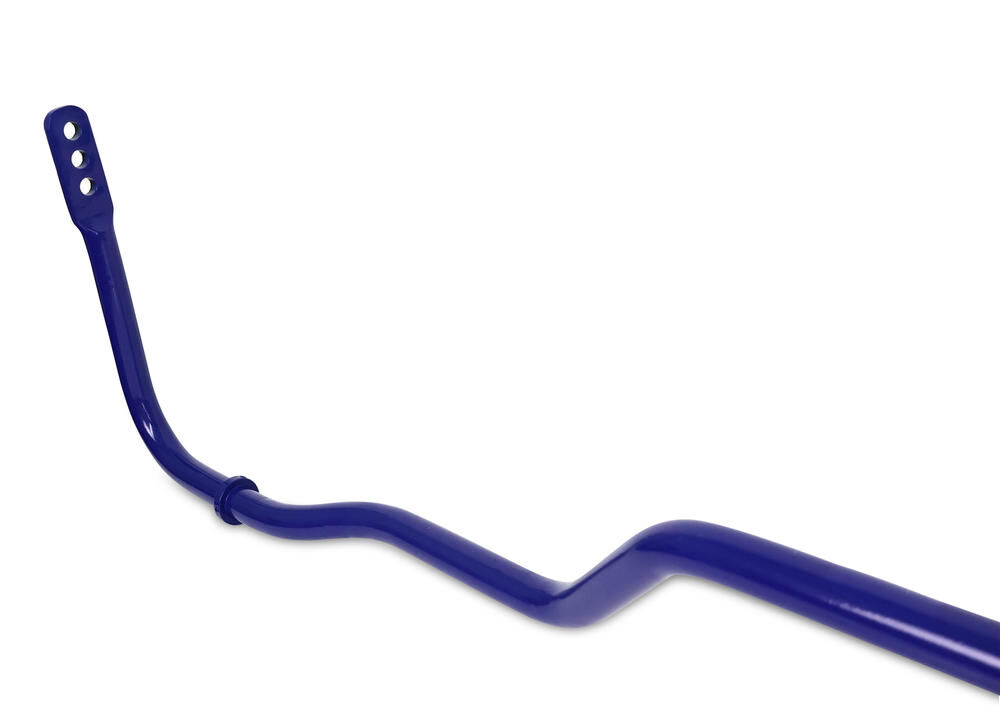

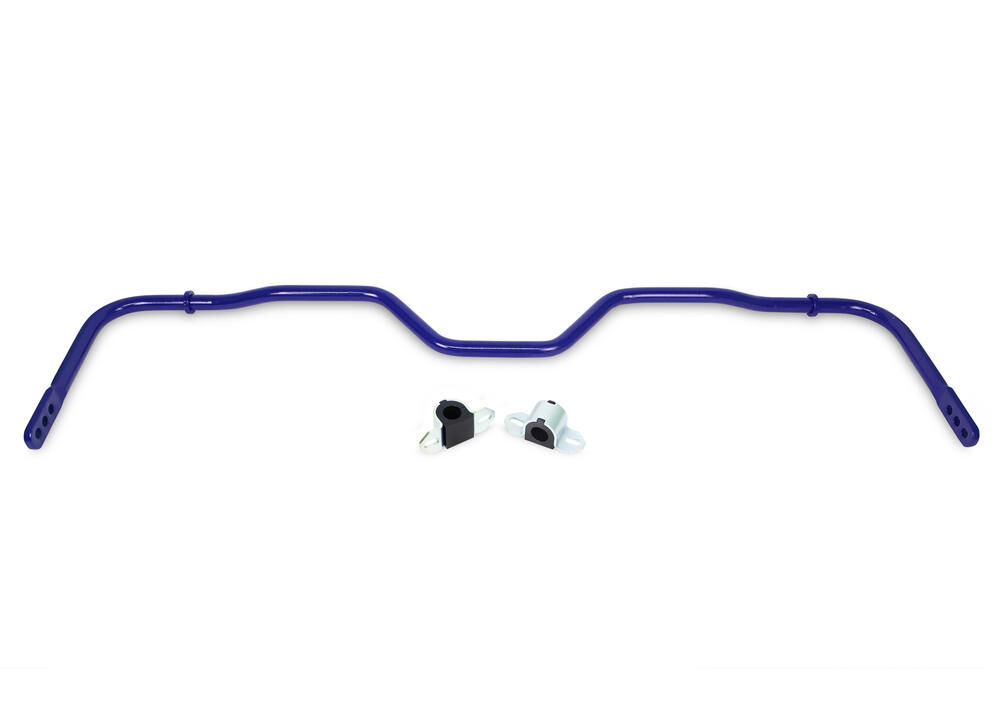

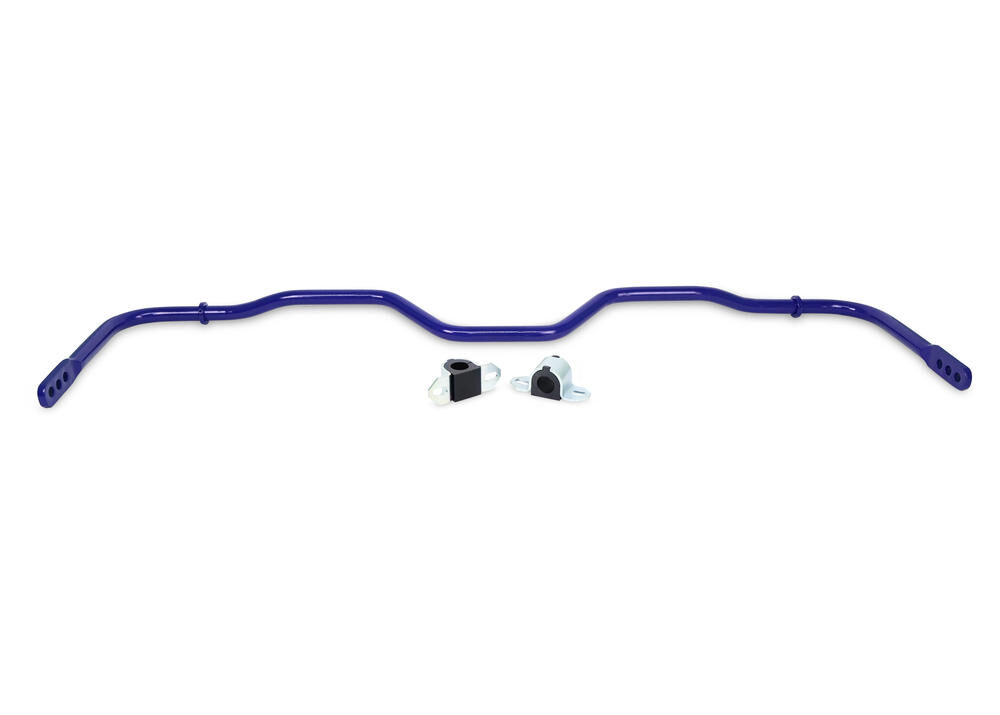

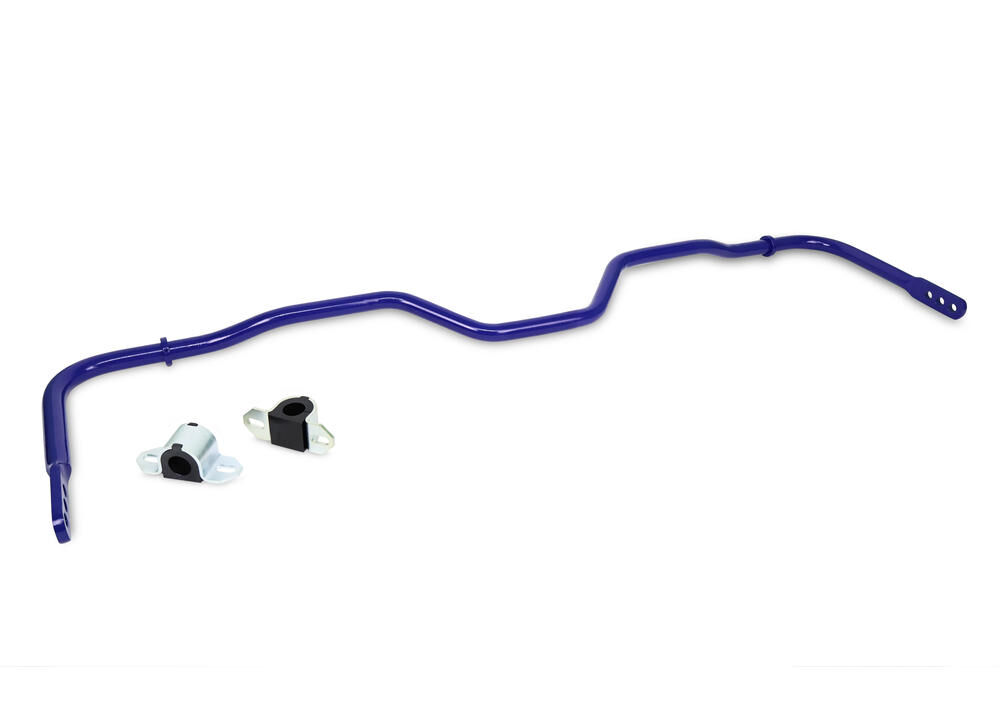

SuperPro Sway Bar - 24mm 3 Point Adjustable to Suit Jeep Gladiator

SKU: RC0109RZ-24

If you are looking for increased cornering capabilities with decreased body roll, Roll Control sway bars are the answer!

By being adjustable the Sway bar rates can be increased between 30-50% over OE sway bars by simply changing the end link position on the sway bar.


Kit Specifications

Diameter (mm) 24
Diameter (in) Fraction 61/64"
Diameter (in) Decimal 0.944
Material Solid Spring Steel
Sway Bar Adjustment Type 3 Point Adjustable

Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.


Sway Bar Adjustment Settings

Setting Effective Bar Size (mm) % Change vs Previous Setting % Stiffer Than OE
Soft - Comfort / low grip 23 mm - +74.9%
Medium - Balanced 24 mm +18.6% +107.4%
Hard - Maximum roll control 25 mm +17.7% +144.1%

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight8kg17.64lbs
Length200cm78.74"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKU IconSKU
RC0109RZ-24
Kit Contents IconKit Contents
1 Sway Bar, 2 Bushings, 2 Saddles
Kits Required IconKits Required
1
Fitting Position IconFitting Position
Rear Axle
Foot Note 3 IconFoot Note 3
lifetime warranty
Sub brand IconSub brand
Roll Control
EAN IconEAN
9317745820017
Product Note IconProduct Note
Built Tough and Durable to Withstand any terrains; a complete, premium upgrade. Includes: 1 Sway Bar, 2 Bushings & 2 Saddles
  • Lifetime Warranty
Brand SuperPro
SKU RC0109RZ-24
