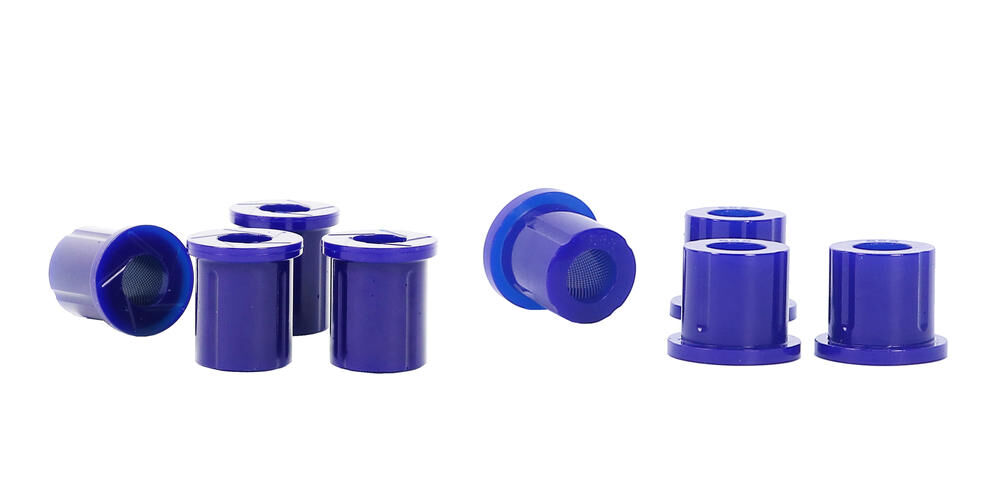

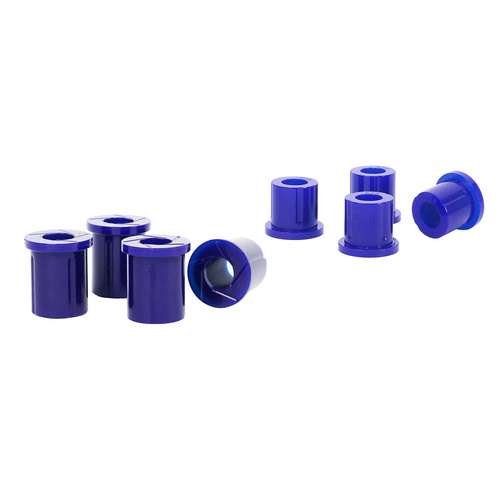

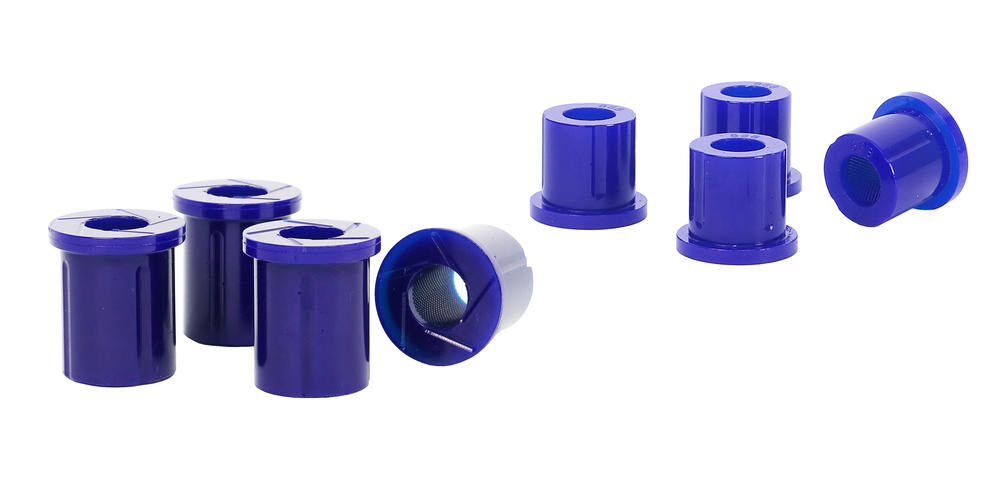

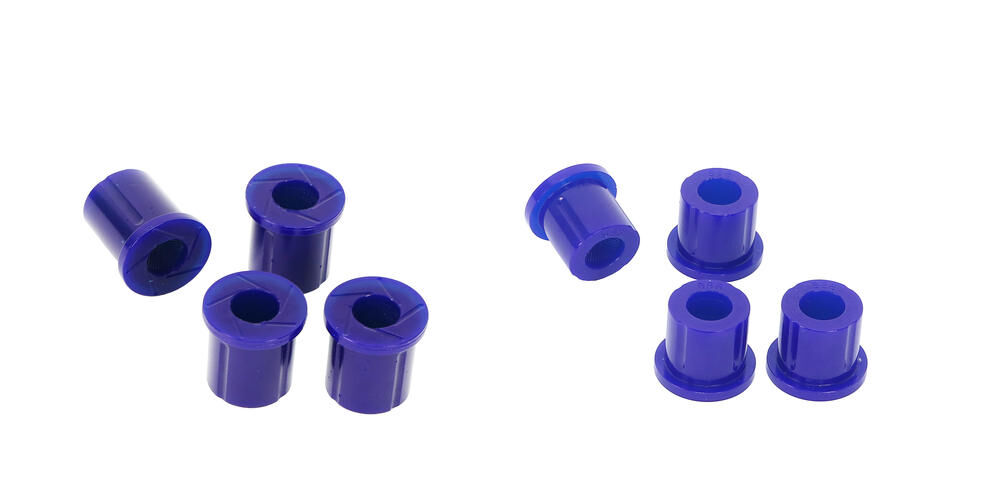

SuperPro Spring Rear Bush Kit All

SKU: SPF0888K


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 4 mm 4 mm
OD (A) 32 mm 32 mm
ID (B) 18 mm 18 mm
Length (C) 33.25 mm 45 mm
Flange Thickness (D) 4.25 mm 5 mm
Flange OD (E) 40 mm 38 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 4 4
OD (A) 32 32
ID (B) 18 18
Length (C) 33.3 45.0
FL (D) 4.25 5
FLOD (E) 40 38
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here SuperPro Suspensions Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.2kg0.44lbs
Length5cm1.97"
Width21cm8.27"
Height15.5cm6.1"

Misc. Product Information

More Information
SKU IconSKU
SPF0888K
Kit Contents IconKit Contents
4 Bushings
Kits Required IconKits Required
1
Fitting Position IconFitting Position
Rear Axle
Foot Note 3 IconFoot Note 3
lifetime warranty
Sub brand IconSub brand
SuperPro SPF
EAN IconEAN
9317745008880
Product Note IconProduct Note
Boost precision and control; a complete, premium upgrade. Includes: 4 Leaf Spring Bushings
  • Lifetime Warranty
Brand SuperPro
SKU SPF0888K
Unit Of Measure Kit
