SuperPro Shifter Bush Kit to suit Ford Ranger PXI & PXII & Mazda BT-50 UP, UR

SKU: SPF5426K

The SuperPro Shifter Bush Kit is an economic repair solution to avoid the expensive replacement of the complete O.E. shifter mechanism.


Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 1 mm 2 mm
OD (A) 21.9 mm 24 mm
ID (B) 13.8 mm 13.8 mm
Length (C) 30 mm 23 mm
Flange Thickness (D) 2.7 mm
Flange OD (E) 27 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

Bush Type 7 10
QTY 1 2
OD (A) 21.9 24
ID (B) 13.8 13.8
Length (C) 30.0 23.0
FL (D) 2.7
FLOD (E) 27
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here SuperPro Suspensions Bushing Type & Size Register

Bushing Type 7
Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.1kg0.22lbs
Length7cm2.76"
Width14cm5.51"
Height20cm7.87"

Misc. Product Information

More Information
SKU IconSKU
SPF5426K
Kit Contents IconKit Contents

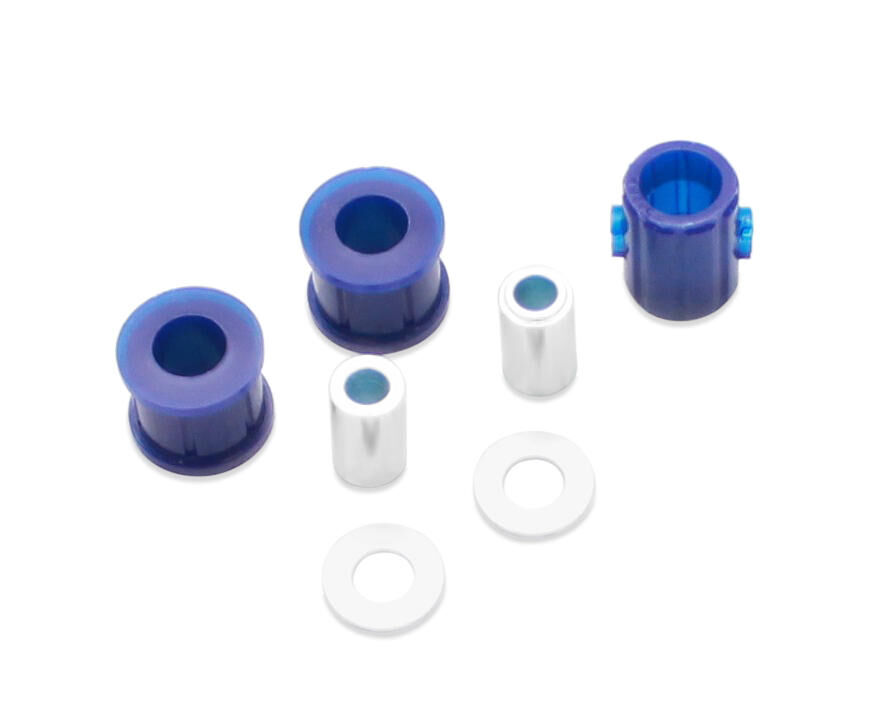

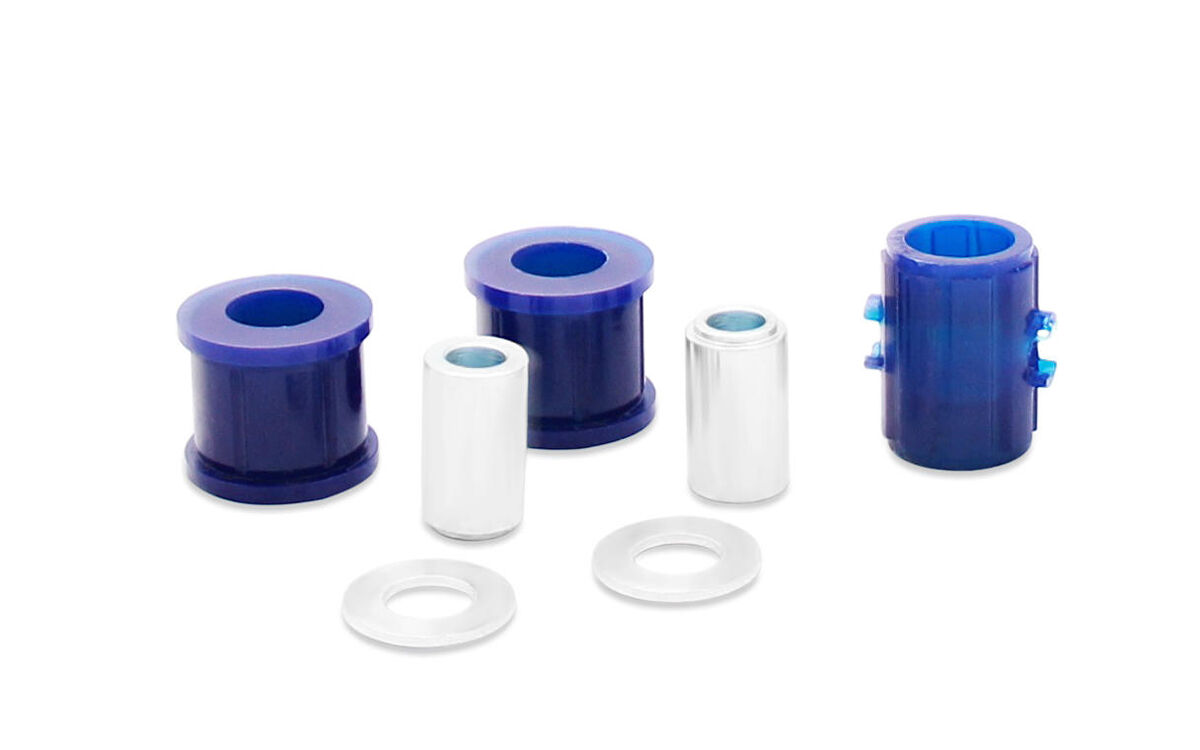

3 Bushings, 2 Tubes, 2 Washers
Kits Required IconKits Required
1
Fitting Position IconFitting Position
Front Axle
Foot Note 3 IconFoot Note 3
lifetime warranty
Sub brand IconSub brand
SuperPro SPF
EAN IconEAN
9317745054269
Product Note IconProduct Note
Boost precision and control; a complete, premium upgrade. Includes: 3 Shifter Bushings, 2 Tubes & 2 Washers
  • Lifetime Warranty
Brand SuperPro
SKU SPF5426K
Unit Of Measure Kit
