SuperPro Replacement Bush Kit for Front Upper Fixed Offset Control Arm TRC6710
SKU: KIT6710K
SKU: KIT6710K
- Enhances vehicle control & cornering traction; an all-in-one handling solution. Includes: 2 x fixed offset upper control arm replacement bushings
Upgrade your 4WD with a SuperPro 4x4 Control Arm! Gain extra clearance, articulation, correct alignment and install a stronger control arm designed for harsh off road conditions.
- Lifetime Warranty
- Enhances your 4WD's handling and performance
- Designed to solve alignment issues when you lift your 4WD
- Approved Nationally - VSB 14 Compliant (ADR compliant)
- High quality, form factor welding and assembly
- High grade Steel, for increased strength
For every inch a vehicle is raised the vehicles geometry is permanently changed, causing alignment issues. If a lift kit is installed, then a control arm should also be installed to solve alignment issues.
SuperPro's 4WD control arms are manufactured, tested and designed in Australia, ensuring high quality development and manufacturing with local reliable resources. SuperPro 4WD control arms are built to meet the high quality requirements set by SuperPro's Q&A team; designed to outperform both competitor and OE products. Following our business motto "Engineered to Outperform", SuperPro exceeds many design expectations and has been certified as such.
Kit Specifications
| Bush Type | 16 - Shell Without Flange Bushing |
|---|---|
| Bush Quantity | 2 mm |
| OD (A) | 47.9 mm |
| ID (B) | 26.8 mm |
| Length (C) | 59.5 mm |
| Flange Thickness (D) | DI=8.5 DII=7.5 mm |
| Flange OD (E) | 53.7 mm |
| C/Tube Quantity | 2 |
| C/Tube ODxIDxL | 27x16.2x60 mm |
| Similar Bushing Size | Click Here |
Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register
Bushing Design Dimensions (mm)
| Bush Type | 16 |
|---|---|
| QTY | 2 |
| OD (A) | 47.9 |
| ID (B) | 26.8 |
| Length (C) | 59.5 |
| FL (D) | DI=8.5 DII=7.5 |
| FLOD (E) | 53.7 |
| C/Tube Qty | 2 |
| C/Tube Size | 27x16.2x60 |
| Similar Bushings | Click Here |
Looking for that hard-to-find part? Start your search here SuperPro Suspensions Bushing Type & Size Register
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 0.8kg | 1.76lbs |
| Length | 5cm | 1.97" |
| Width | 26cm | 10.24" |
| Height | 18.5cm | 7.28" |
Misc. Product Information
 SKU | KIT6710K |
|---|---|

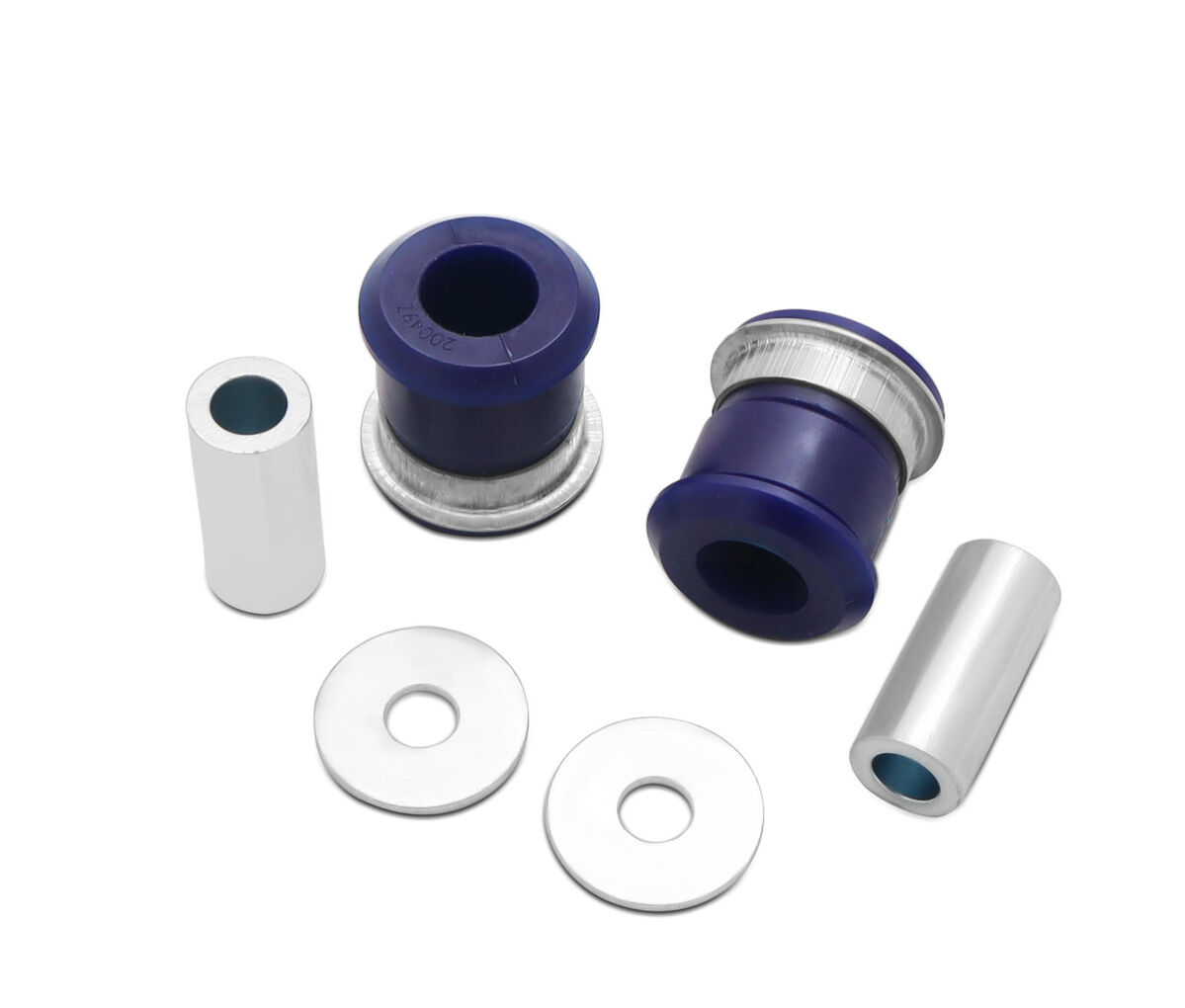

 Kit Contents | 2 Bushings, 2 Tubes, 2 Washers |
| Kits Required | 2 |
 Fitting Position | Front Axle |
| Foot Note 1 | Replacement bush kit to suit TRC6710 |
| Foot Note 3 | Lifetime Warranty |
| Sub brand | Roll Control |
| EAN | 9317745802259 |
| Product Note | Enhances vehicle control & cornering traction; an all-in-one handling solution. Includes: 2 x fixed offset upper control arm replacement bushings |
- Lifetime Warranty
| Brand | SuperPro |
| SKU | KIT6710K |
| Unit Of Measure | Kit |
