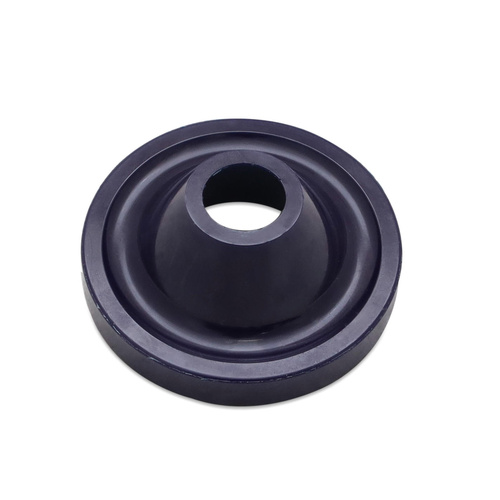

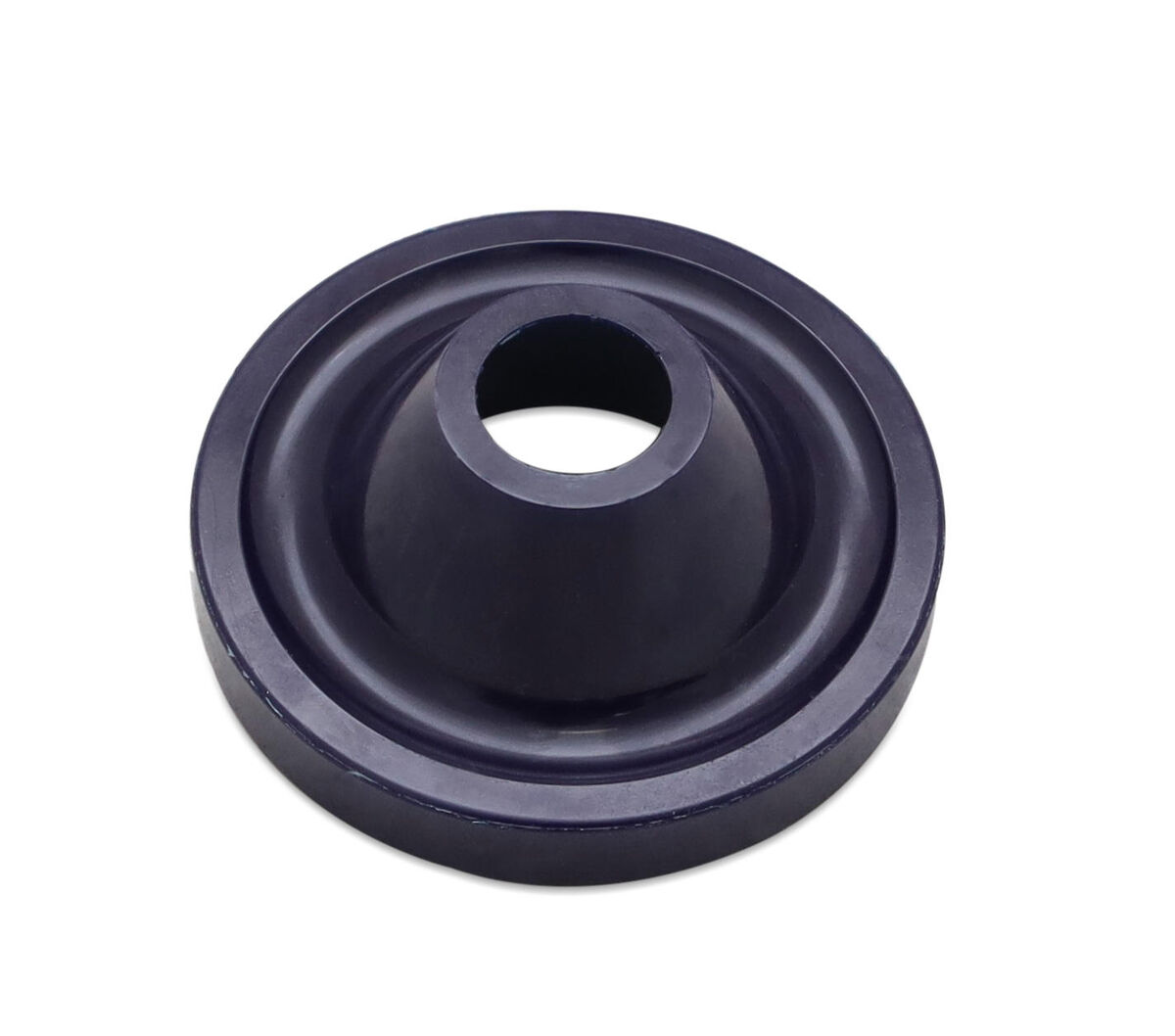

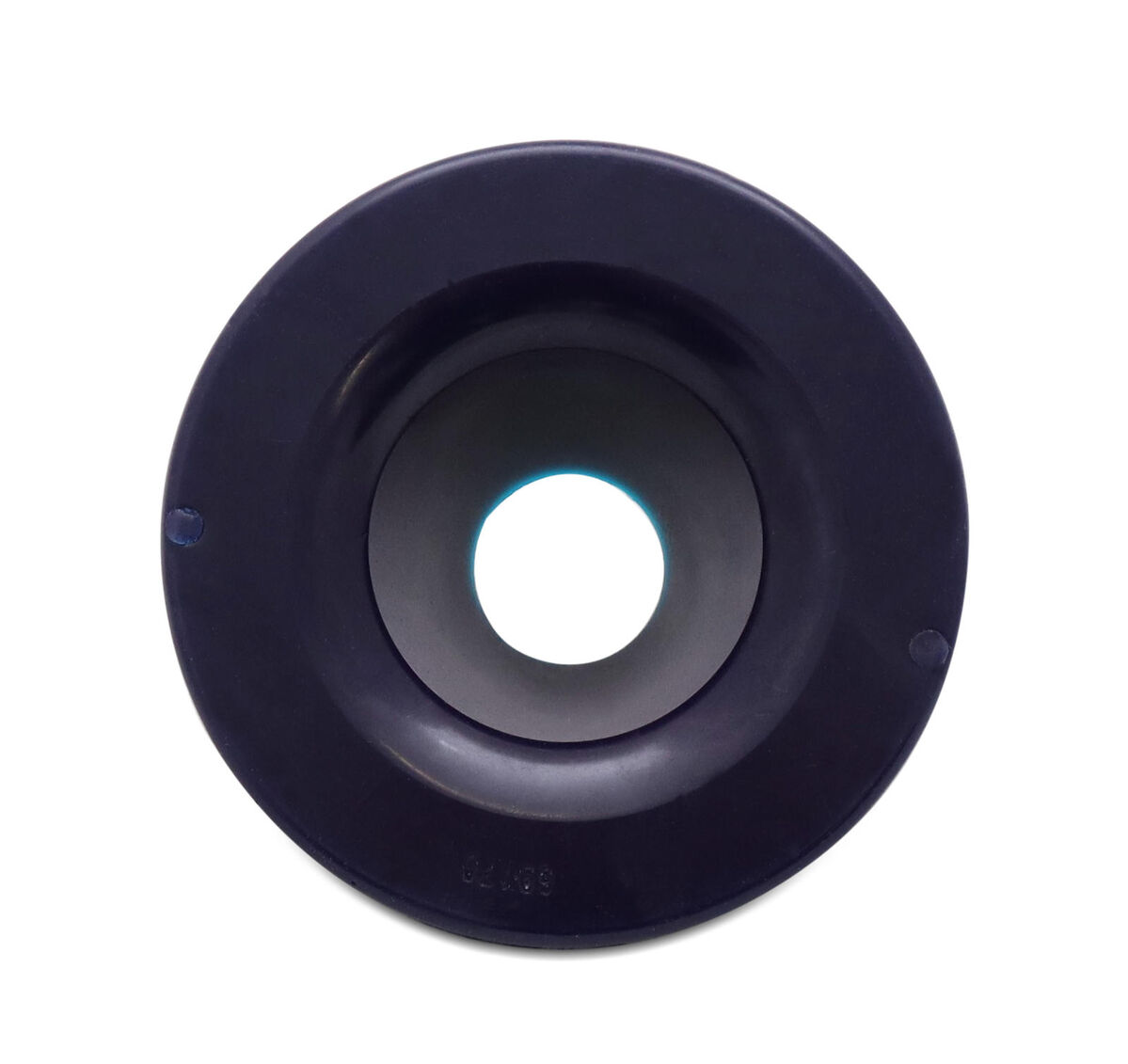

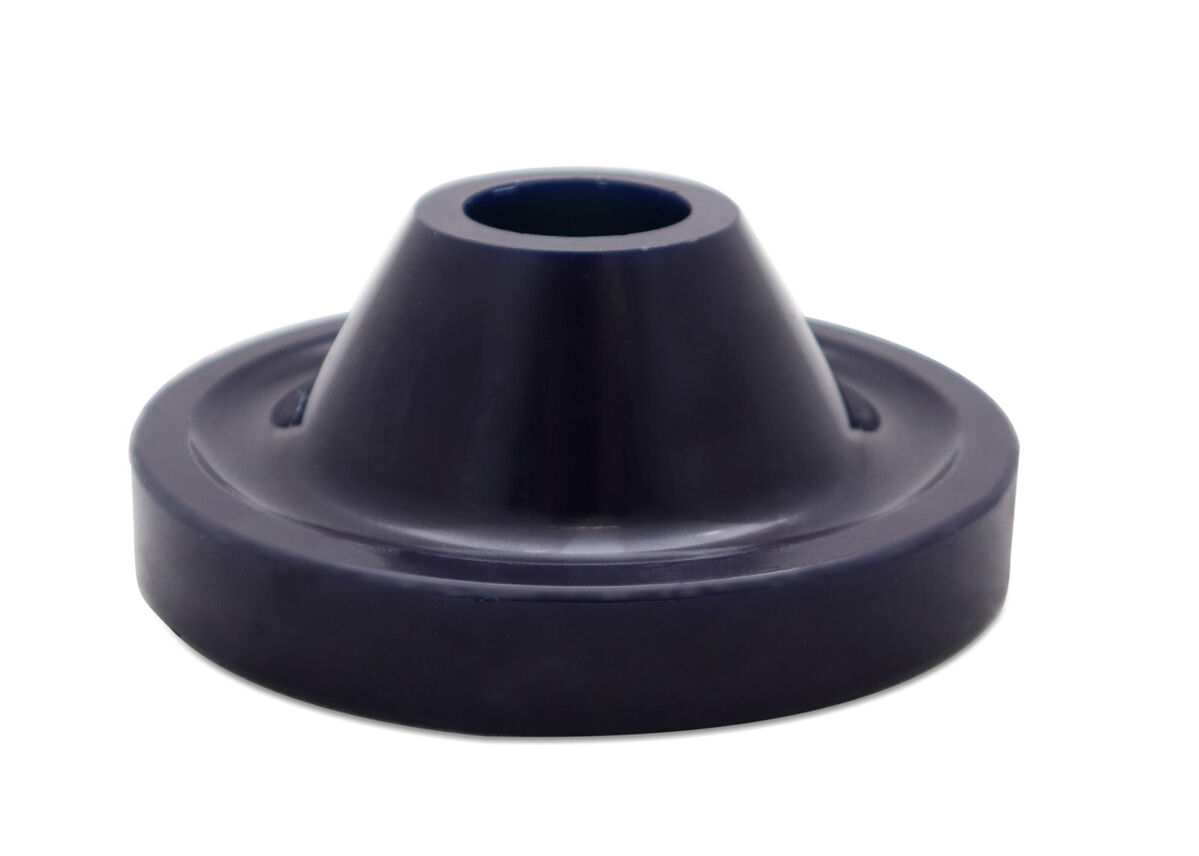

SuperPro Rear Upper Standard Height Coil Spring Bush Kit to suit Jeep Wrangler JL

SKU: SPF5574K

A=108mm B=65mm C=10mm


Kit Specifications

Bush Type 9 - Coil Spring Seats And Spacer Bushing
Bush Quantity 1 mm
OD (A) 113 mm
ID (B) 28 mm
Length (C) 45 mm
Flange Thickness (D) 18 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register

Bushing Type 9 - Coil Spring Seats And Spacer Bushing

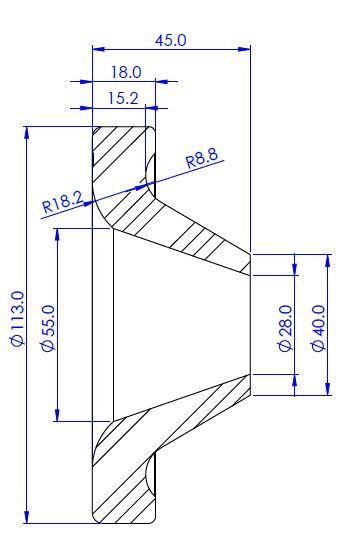

Bushing Design Dimensions (mm)

Bush Type 9
QTY 1
OD (A) 113
ID (B) 28
Length (C) 45.0
FL (D) 18
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here SuperPro Suspensions Bushing Type & Size Register

Bushing Type 9

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.202kg0.45lbs
Length5cm1.97"
Width26cm10.24"
Height18.5cm7.28"

Misc. Product Information

More Information
SKU IconSKU
SPF5574K
Kit Contents IconKit Contents
1 Bushing
Kits Required IconKits Required
1
Fitting Position IconFitting Position
Rear Axle
Foot Note 1 IconFoot Note 1
standard height
Foot Note 3 IconFoot Note 3
lifetime warranty
Sub brand IconSub brand
SuperPro SPF
EAN IconEAN
9317745055747
Product Note IconProduct Note
A=108mm B=65mm C=10mm
  • Lifetime Warranty
Brand SuperPro
SKU SPF5574K
Unit Of Measure Kit
