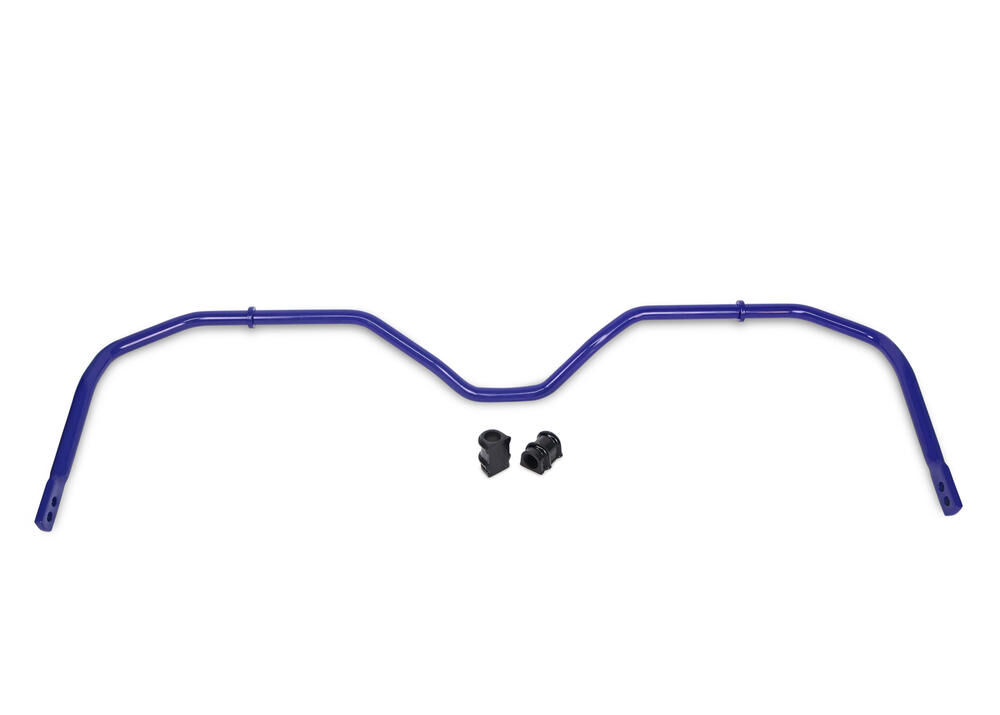

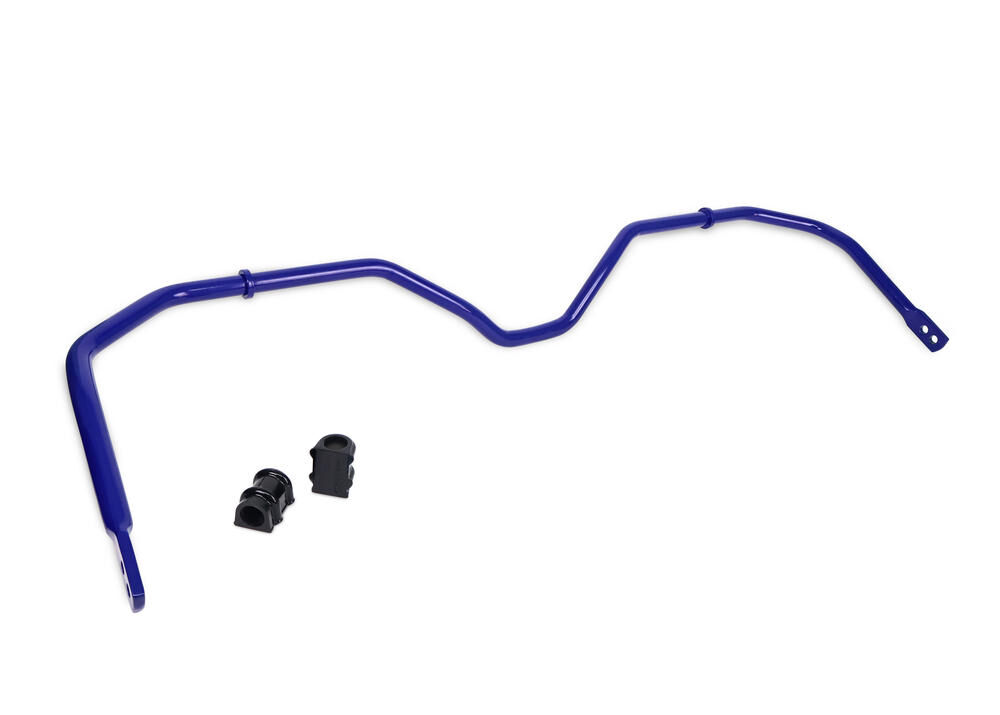

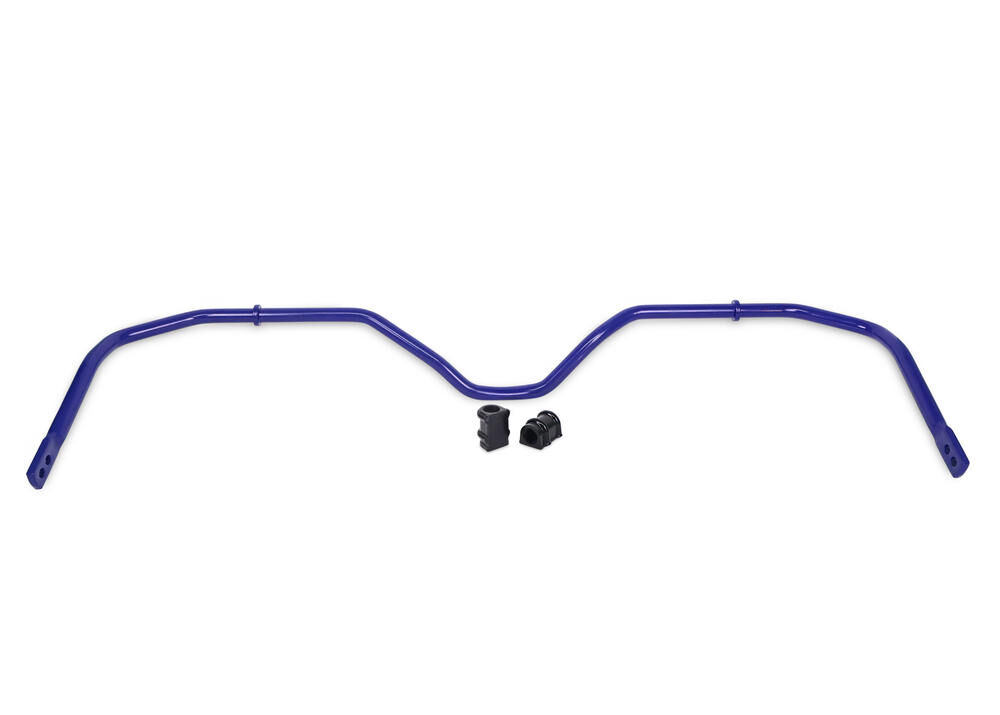

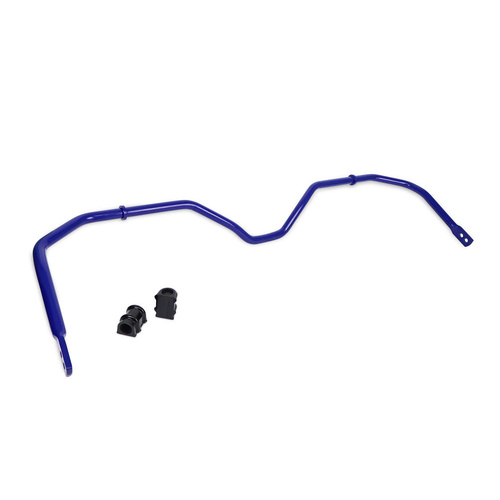

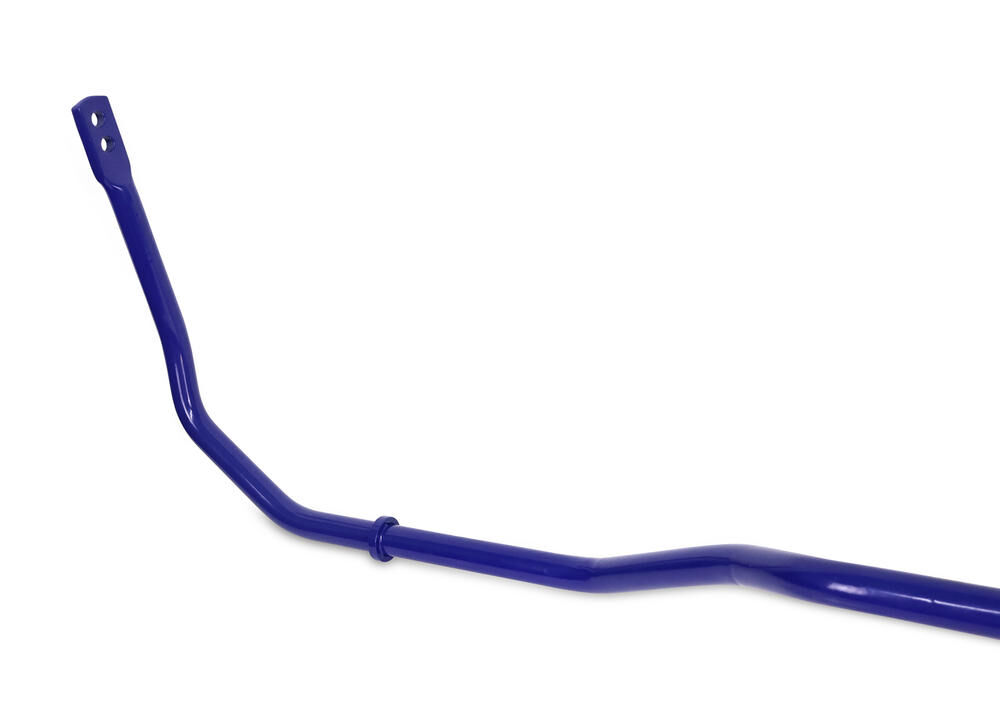

SuperPro Rear Sway Bar - 24mm Adjustable to Suit Toyota LandCruiser Prado 250

SKU: RC0131RZ-24

Benefit Note: If you are looking for increased cornering capabilities with decreased body roll, Roll Control sway bars are the answer!


By being adjustable the Sway bar rates can be increased between 30-50% over OE sway bars by simply changing the end link position on the sway bar.


Kit Specifications

Diameter (mm) 24
Diameter (in) Fraction 61/64"
Diameter (in) Decimal 0.944
Material Solid Spring Steel
Sway Bar Adjustment Type 2 Point Adjustable

Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.


Sway Bar Adjustment Settings

Setting Effective Bar Size (mm) % Change vs Previous Setting % Stiffer Than OE
Soft - Comfort / low grip 23.5 mm - +30.2%
Hard - Maximum roll control 24.5 mm +18.1% +53.8%

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight6.9kg15.21lbs
Length200cm78.74"
Width20cm7.87"
Height10cm3.94"

Misc. Product Information

More Information
SKU IconSKU
RC0131RZ-24
Kit Contents IconKit Contents
1 Sway Bar, 2 Bushings
Kits Required IconKits Required
1
Fitting Position IconFitting Position
Rear Axle
Foot Note 3 IconFoot Note 3
lifetime warranty
Sub brand IconSub brand
Roll Control
EAN IconEAN
9317745840602
Product Note IconProduct Note
Makes handling more predictable and reliable; a complete, premium upgrade. Includes: 1 Sway Bar, 2 Bushings
  • Lifetime Warranty
Brand SuperPro
SKU RC0131RZ-24
