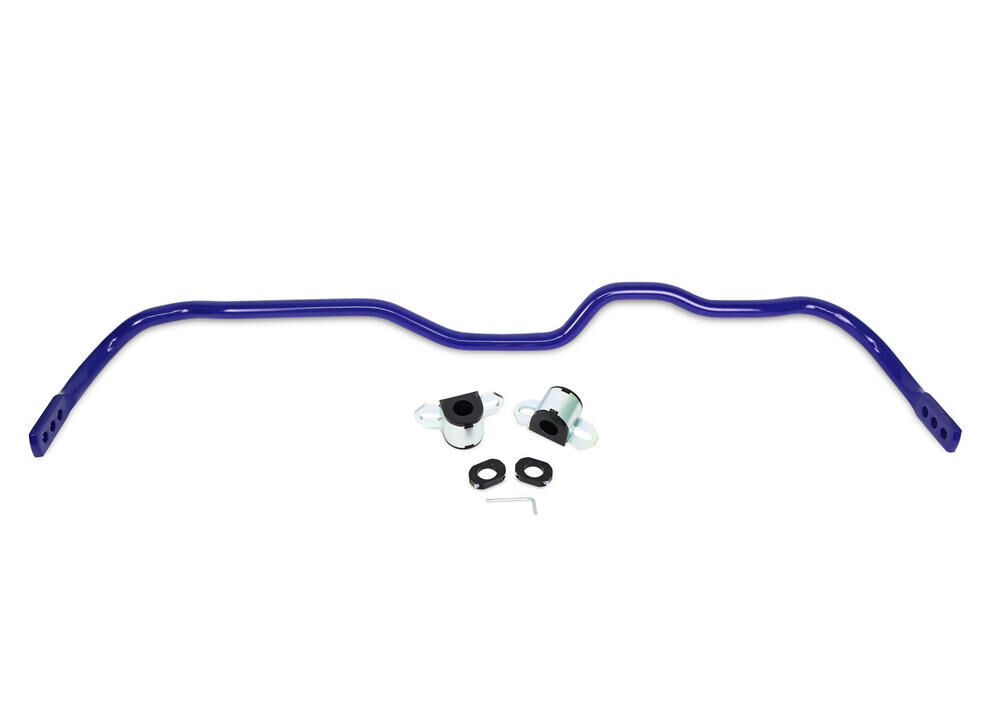

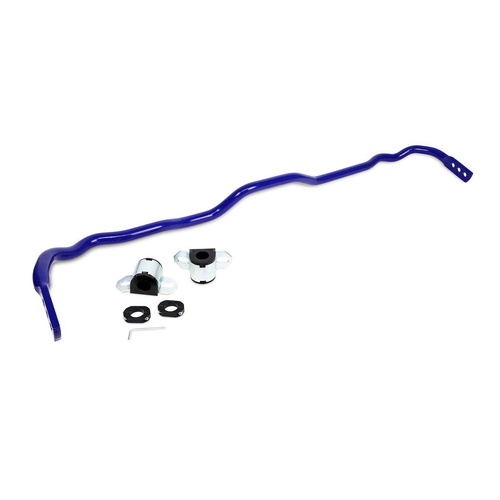

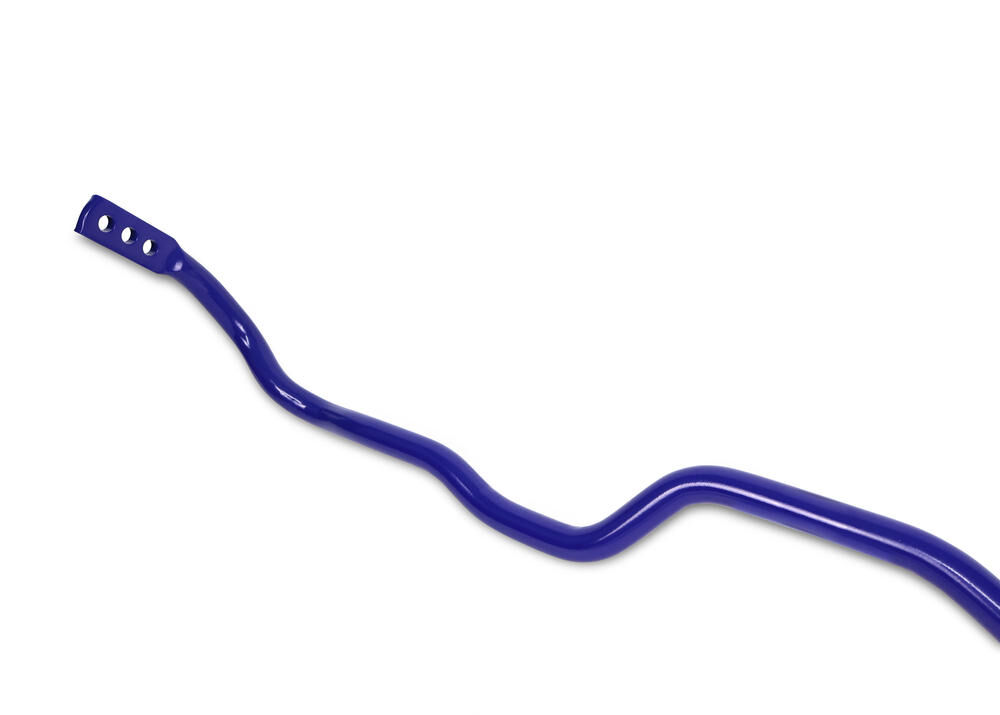

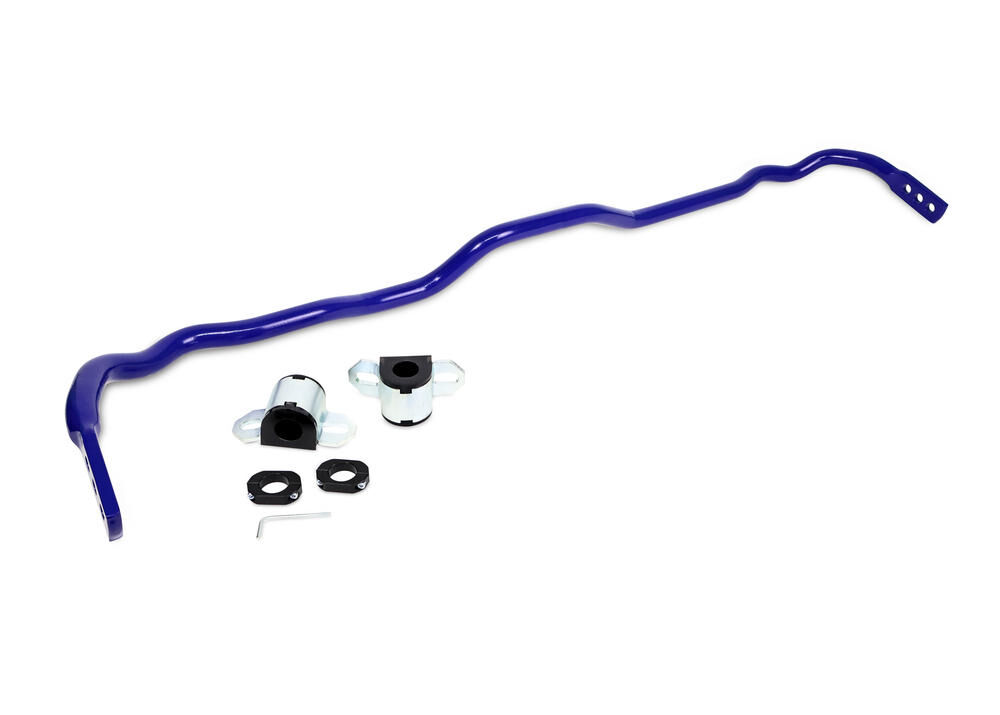

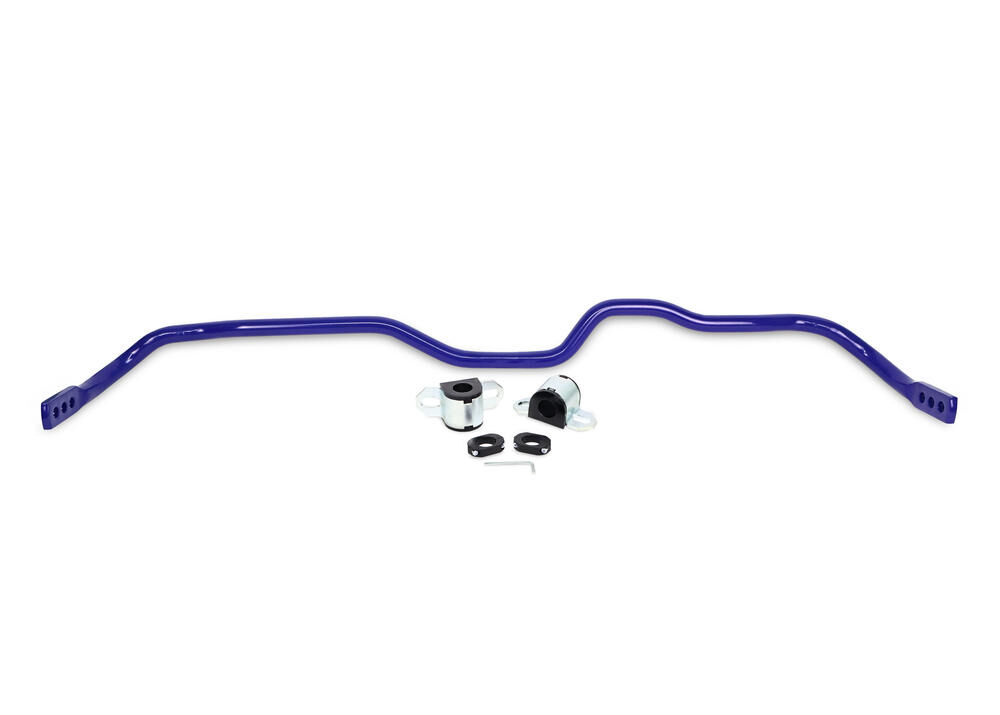

SuperPro Rear Sway Bar - 24mm 3 Point Adjustable to Suit Toyota GR Yaris and GR Corolla

SKU: RC0134RZ-24

Benefit Note: If you are looking for increased cornering capabilities with decreased body roll, Roll Control sway bars are the answer! By being adjustable the Sway bar rates can be increased between 30-50% over OE sway bars by simply changing the end link position on the sway bar.


Kit Specifications

Diameter (mm) 24
Diameter (in) Fraction 61/64"
Diameter (in) Decimal 0.944
Material Solid Spring Steel
Sway Bar Adjustment Type 3 Point Adjustable

Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.


Sway Bar Adjustment Settings

Setting Effective Bar Size (mm) % Change vs Previous Setting % Stiffer Than OE
Soft - Comfort / low grip 23 mm - +114.7%
Medium - Balanced 24 mm +18.6% +154.6%
Hard - Maximum roll control 25 mm +17.7% +199.7%

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight7kg15.43lbs
Length160cm62.99"
Width20cm7.87"
Height24cm9.45"

Misc. Product Information

More Information
SKU IconSKU
RC0134RZ-24
Kit Contents IconKit Contents
1 Sway Bar, 2 Bushings, 2 Saddles, 2 Lateral Locks
Kits Required IconKits Required
1
Fitting Position IconFitting Position
Rear Axle
Foot Note 3 IconFoot Note 3
lifetime warranty
Sub brand IconSub brand
Roll Control
EAN IconEAN
9317745831303
Product Note IconProduct Note
Boosts Vehicle Performance and responsiveness; a complete, premium upgrade. Includes: 1 Sway Bar, 2 Bushings, 2 Saddles & 2 Lateral Locks
  • Lifetime Warranty
Brand SuperPro
SKU RC0134RZ-24
