SuperPro Rear Subframe to Chassis Mount Bush Kit to suit Jeep Grand Cherokee WK 2011-on (does not suit Trackhawk)

SKU: SPF5392K

Offering a solid rear end which results to a better driver control and feel for the rear of the car


Kit Specifications

Bush Type 6 - Male/female Interconnecting Bushing 6 - Male/female Interconnecting Bushing
Bush Quantity 4 mm 4 mm
OD (A) 102 mm 100 mm
ID (B) 36 mm 59 mm
Length (C) 88.5 mm 32.5 mm
Flange Thickness (D) 21 mm 17.5 mm
Flange OD (E) 130 mm 120 mm
C/Tube Quantity 4 4
C/Tube ODxIDxL 36x22.2x88.5 mm 36x22.2x88.5 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register

Bushing Type 6 - Male/female Interconnecting Bushing
Bushing Type 6 - Male/female Interconnecting Bushing

Bushing Design Dimensions (mm)

Bush Type 6 6
QTY 4 4
OD (A) 102 100
ID (B) 36 59
Length (C) 88.5 32.5
FL (D) 21 17.5
FLOD (E) 130 120
C/Tube Qty 4 4
C/Tube Size 36x22.2x88.5 36x22.2x88.5
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here SuperPro Suspensions Bushing Type & Size Register

Bushing Type 6

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight6.65kg14.66lbs
Length26cm10.24"
Width23cm9.06"
Height20cm7.87"

Misc. Product Information

More Information
SKU IconSKU
SPF5392K
Kit Contents IconKit Contents

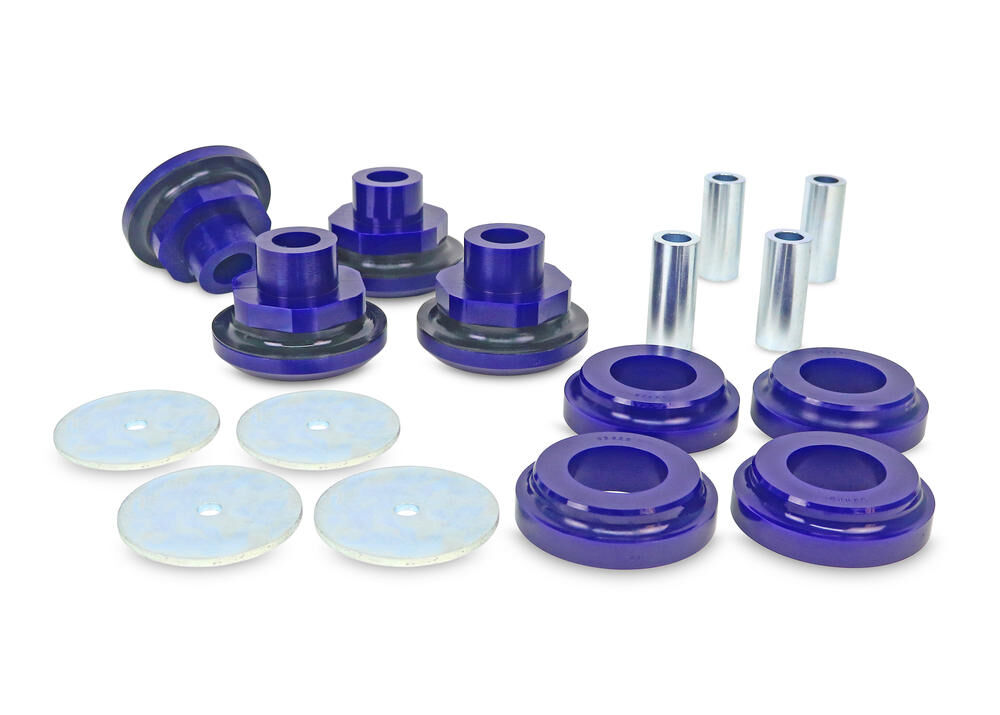

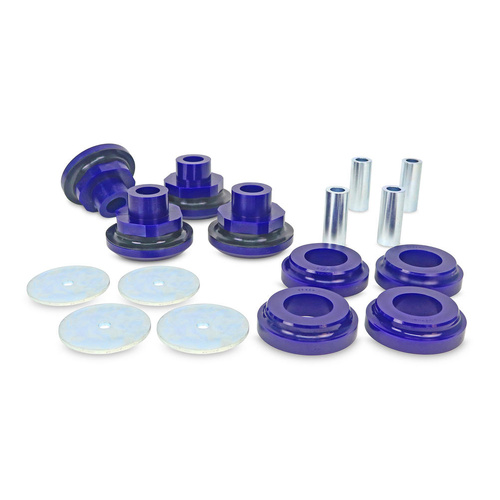

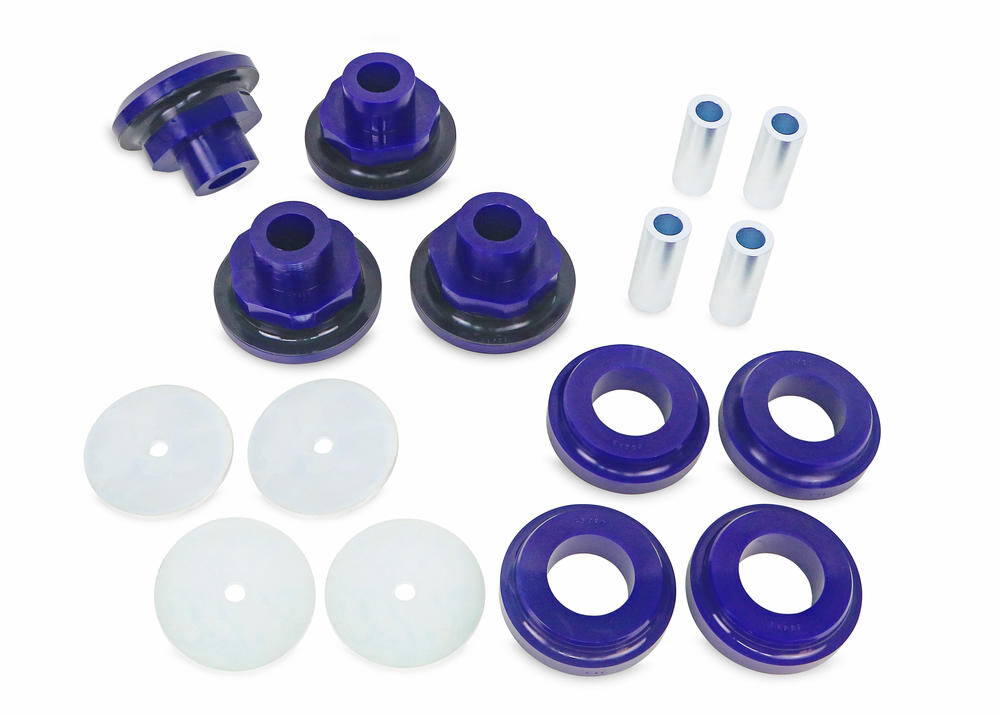

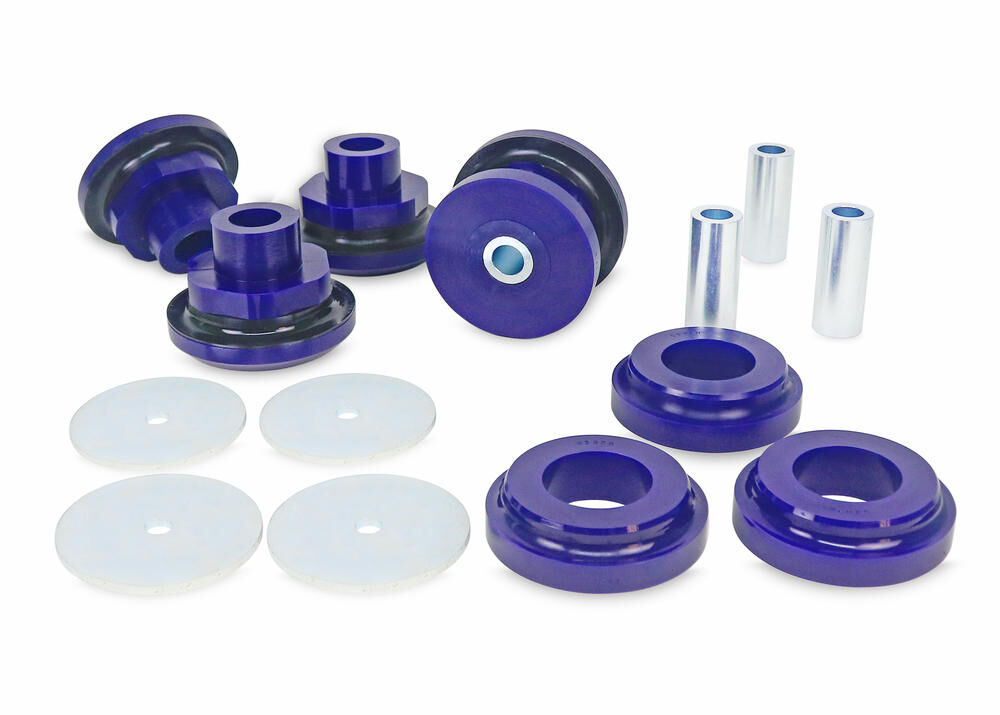

8 Bushings, 4 Tubes, 4 Washers
Kits Required IconKits Required
1
Fitting Position IconFitting Position
Rear Axle
Foot Note 3 IconFoot Note 3
lifetime warranty
Sub brand IconSub brand
SuperPro SPF
EAN IconEAN
9317745053927
Product Note IconProduct Note
Boost precision and control; a complete, premium upgrade. Includes: 8 Subframe Bushings, 4 Tubes & 4 Washers
  • Lifetime Warranty
Brand SuperPro
SKU SPF5392K
Unit Of Measure Kit
