SuperPro Rear Leaf Spring - Rear Eye Bushing Kit to Suit Ford F150 12th Gen

SKU: SPF5788K

Benefit Note: These bushings are often overlooked when upgrading the suspension.

Leaf spring bushings stabilise the movement of the rear axle, inferior bushings in this area will cause the solid rear axle to move and impart rear end passive steer to the vehicle. It also causes the vehicle to "wander" all over the road and be unstable under heavy braking. This can be especially noticeable carrying a load or towing.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 38 mm
ID (B) 22.2 mm
Length (C) 44.5 mm
Flange Thickness (D) 7.4 mm
Flange OD (E) 51 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x14.3x90.5 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 38
ID (B) 22.2
Length (C) 44.5
FL (D) 7.4
FLOD (E) 51
C/Tube Qty 2
C/Tube Size 22.2x14.3x90.5
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here SuperPro Suspensions Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.524kg1.16lbs
Length5cm1.97"
Width26cm10.24"
Height18.5cm7.28"

Misc. Product Information

More Information
SKU IconSKU
SPF5788K
Kit Contents IconKit Contents

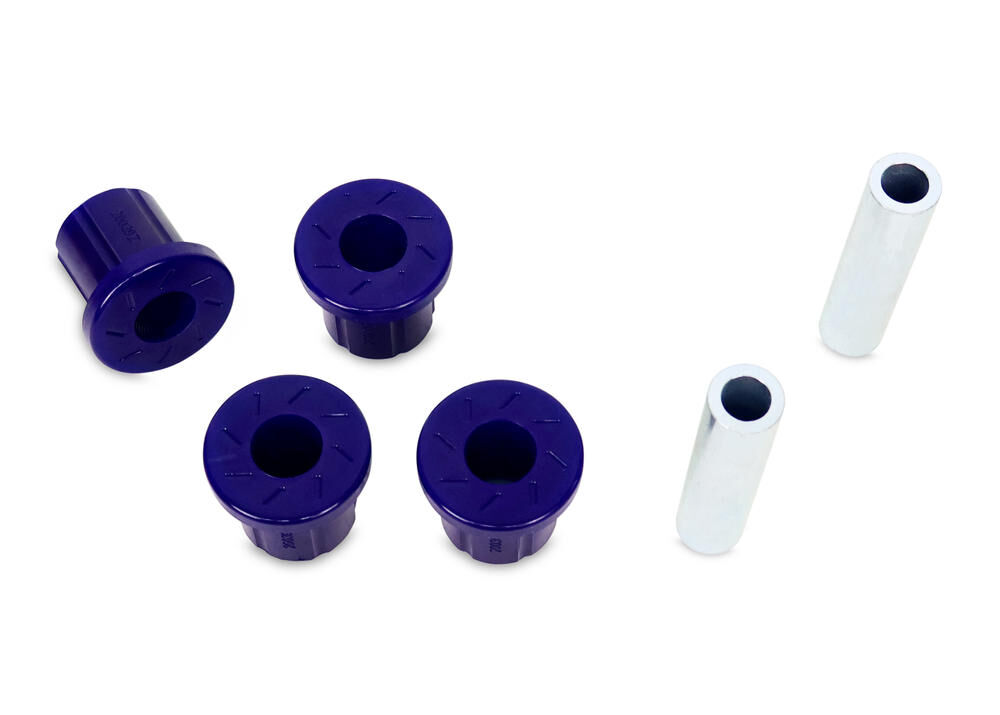

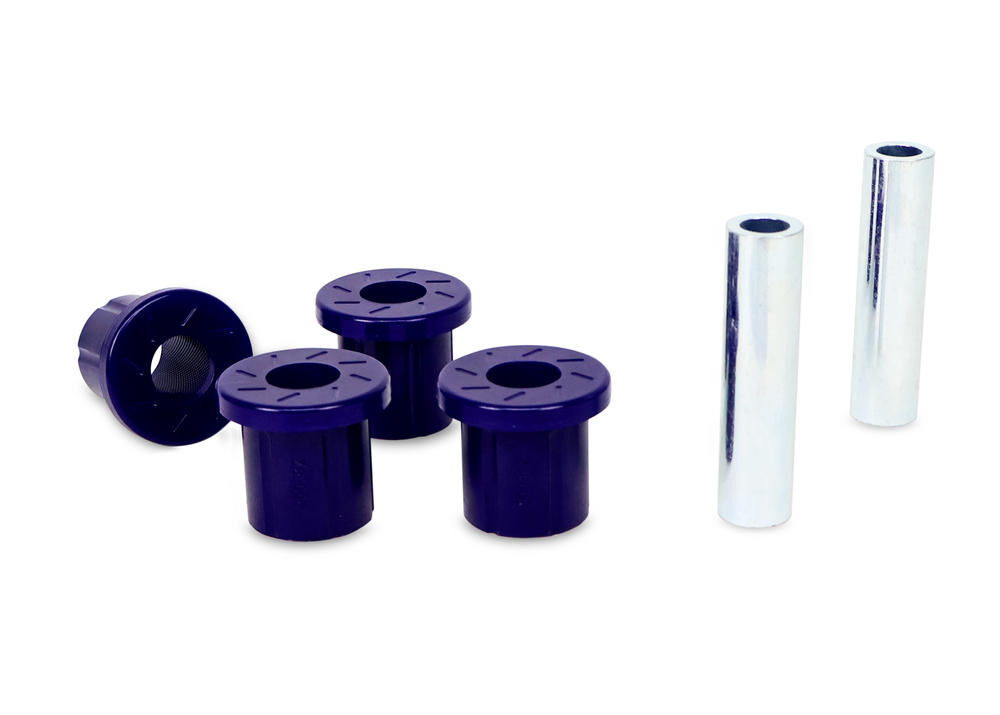

4 Bushings, 2 Tubes
Kits Required IconKits Required
1
Fitting Position IconFitting Position
Rear Axle
Foot Note 3 IconFoot Note 3
lifetime warranty
Sub brand IconSub brand
SuperPro SPF
EAN IconEAN
9317745057888
Product Note IconProduct Note
Boost precision and control; a complete, premium upgrade. Includes: 4 Leaf Spring Bushings & 2 Tubes
  • Lifetime Warranty
Brand SuperPro
SKU SPF5788K
Unit Of Measure Kit
