SuperPro Rear Control Arm Lower Rear - Inner Bushing Kit to Suit Tesla Model 3 and Model Y

SKU: SPF5765K

Benefit Note: Control arm bushes stabilise the movement of the arms to ensure the correct geometry is maintained in all situations. Worn or rubber bushes in these locations lead to dynamic changes in wheel alignment that effect the handling of a vehicle as well as the tyre life. SuperPro Bushings solve this issue and are the perfect repair or repair upgrade solution.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 44 mm
ID (B) 18.8 mm
Length (C) 48 mm
Flange Thickness (D) 9.5 mm
Flange OD (E) 41 mm
C/Tube Quantity 2
C/Tube ODxIDxL 19x12.3x48 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 44
ID (B) 18.8
Length (C) 48.0
FL (D) 9.5
FLOD (E) 41
C/Tube Qty 2
C/Tube Size 19x12.3x48
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here SuperPro Suspensions Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.43kg0.95lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKU IconSKU
SPF5765K
Kit Contents IconKit Contents
2 Shell Bushings, 2 Tubes
Kits Required IconKits Required
1
Fitting Position IconFitting Position
Rear Axle
Foot Note 3 IconFoot Note 3
lifetime warranty
Sub brand IconSub brand
SuperPro SPF
EAN IconEAN
9317745057659
Product Note IconProduct Note

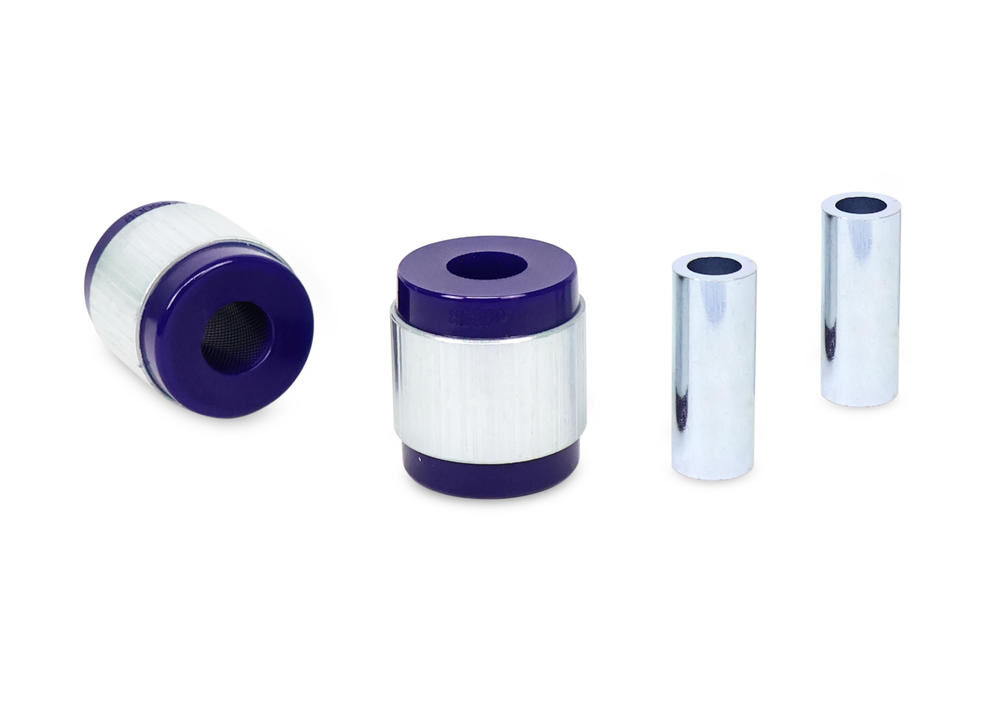

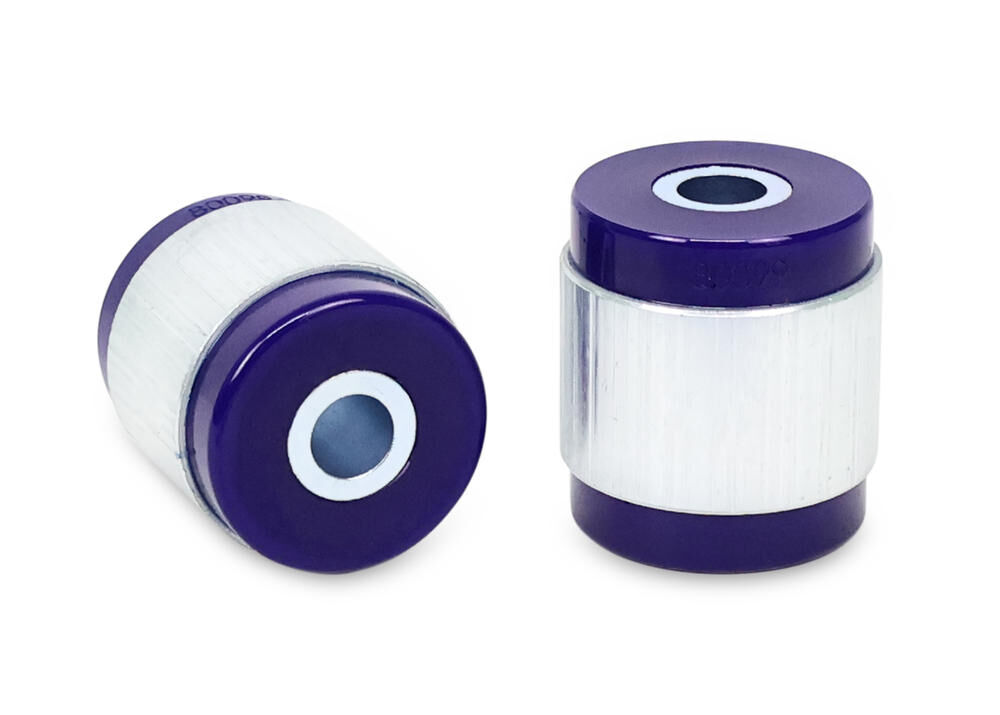

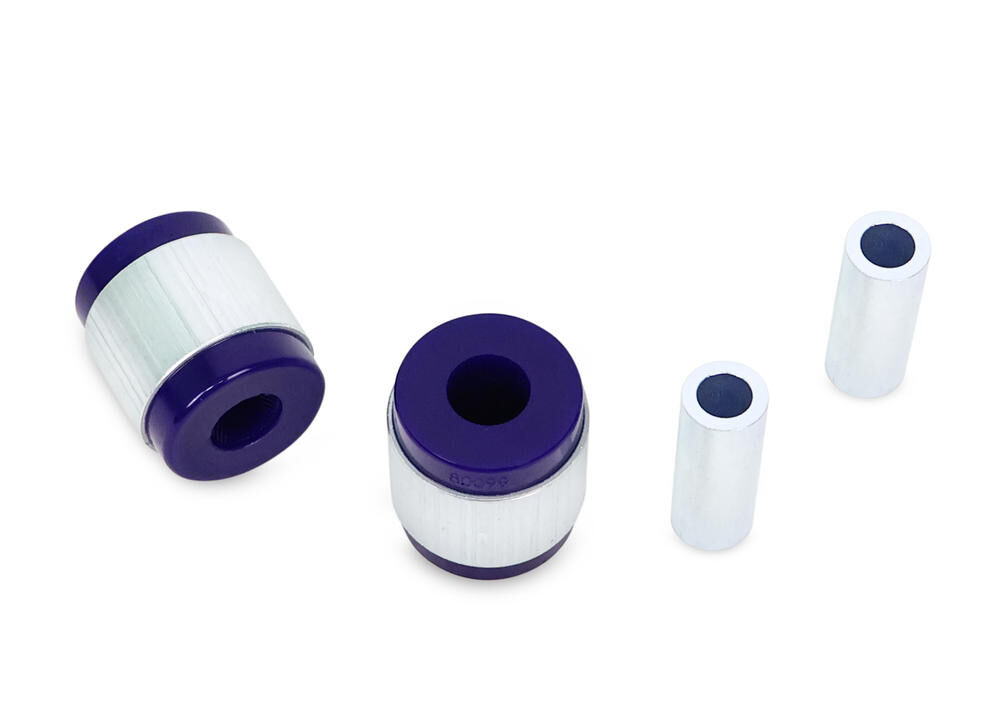

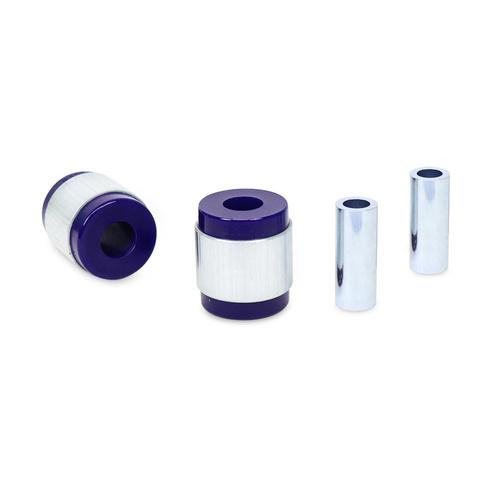

Maintains optimal alignment and makes handling consistent; a complete, premium upgrade. Includes: 2 Control Arm Shell Bushings & 2 Tubes
  • Lifetime Warranty
Brand SuperPro
SKU SPF5765K
Unit Of Measure Kit
