SuperPro 22mm Solid 3 Point Adjustable Rear Sway Bar to suit Holden Commodore VE

SKU: RC0001RZ-22

Does not suit FE3 Suspension


Kit Specifications

Diameter (mm) 22
Diameter (in) Fraction 7/8"
Diameter (in) Decimal 0.866
Material Solid Spring Steel

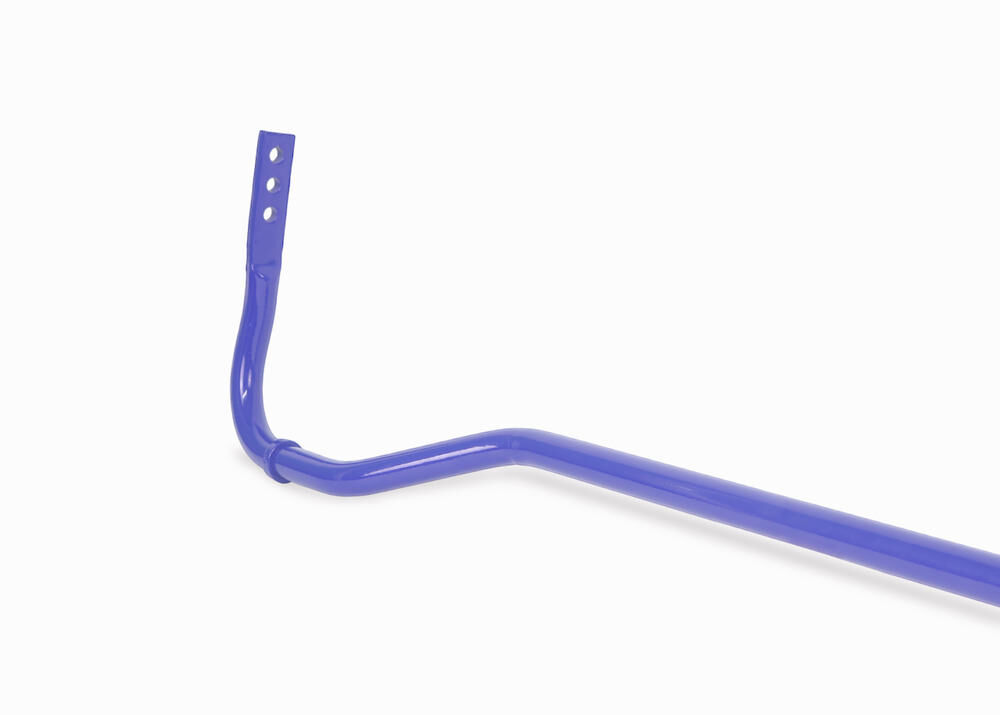

Sway Bar Adjustment Type 3 Point Adjustable

Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.


Sway Bar Adjustment Settings

Setting Effective Bar Size (mm) % Change vs Previous Setting % Stiffer Than OE
Soft - Comfort / low grip 21 mm - -17.0%
Medium - Balanced 22 mm +20.5% +0.0%
Hard - Maximum roll control 23 mm +19.5% +19.5%

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight3.7kg8.16lbs
Length150cm59.06"
Width20cm7.87"
Height50cm19.69"

Misc. Product Information

More Information
SKU IconSKU
RC0001RZ-22
Kit Contents IconKit Contents

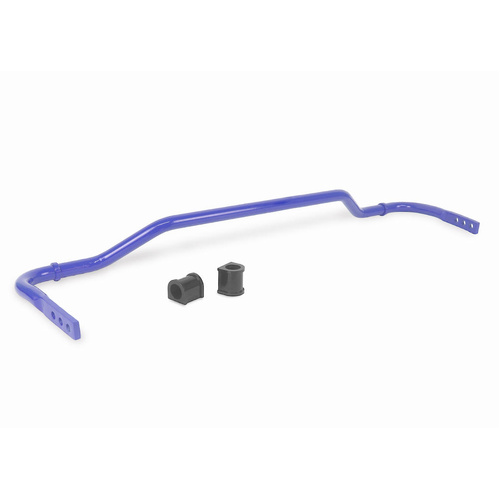

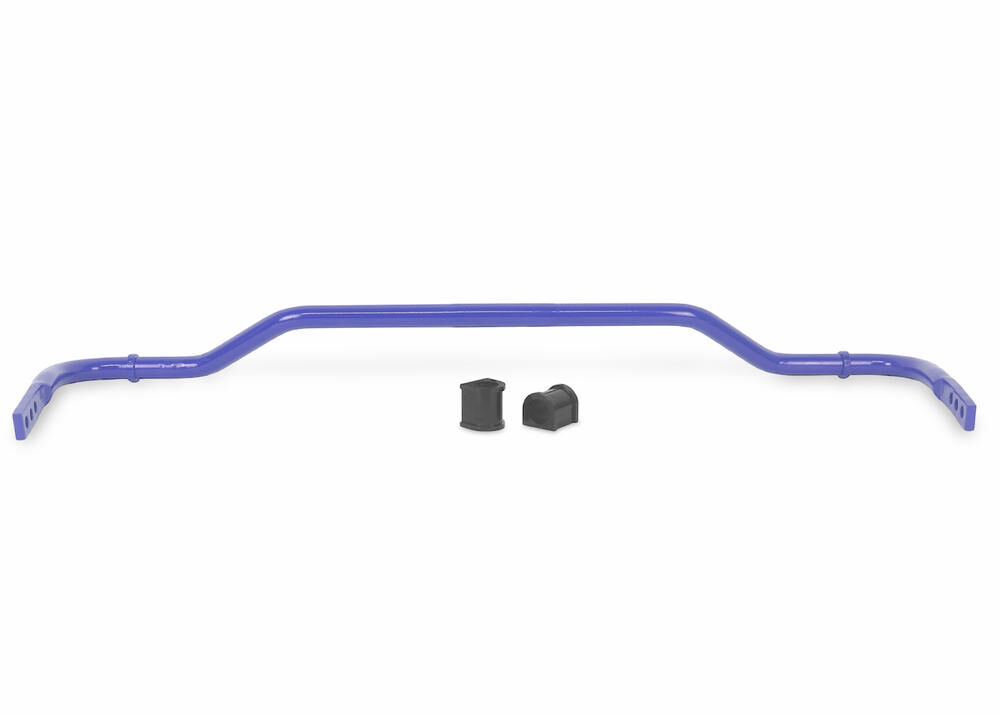

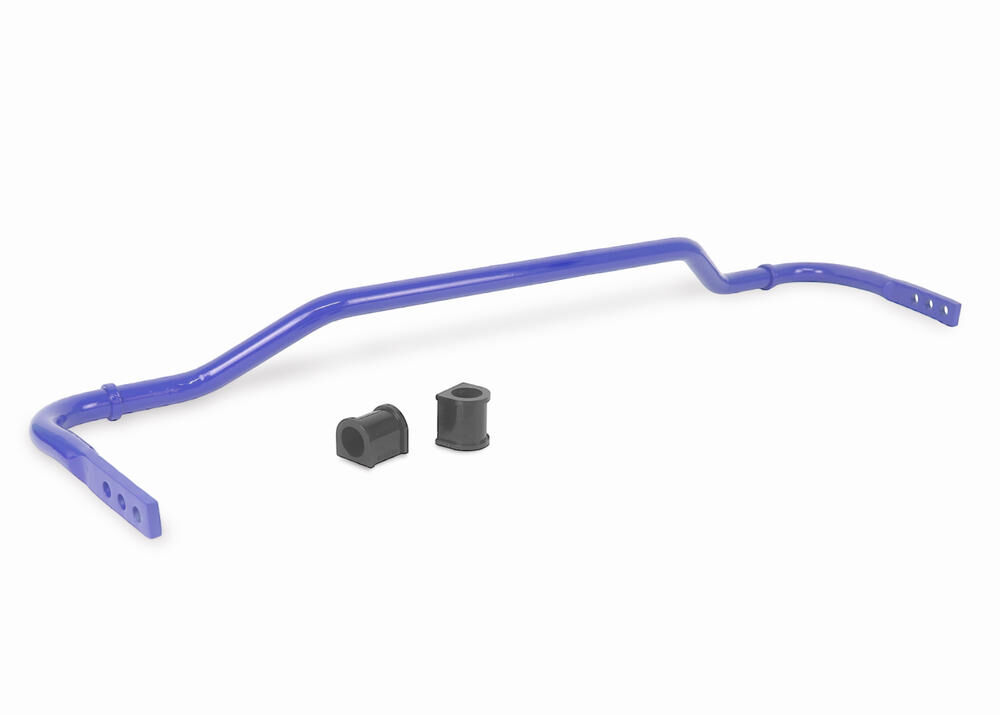

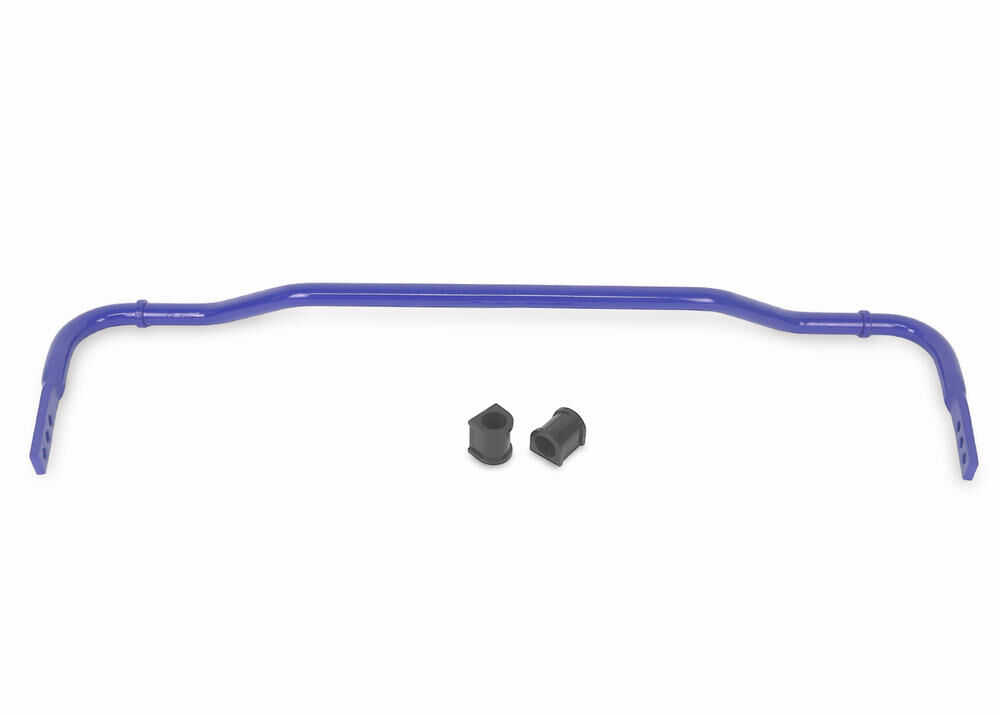

1 Sway Bar, 2 Bushings
Kits Required IconKits Required
1
Fitting Position IconFitting Position
Rear Axle
Foot Note 3 IconFoot Note 3
lifetime warranty
Sub brand IconSub brand
Roll Control
EAN IconEAN
9317745750840
Product Note IconProduct Note
22mm Heavy Duty 3 Position Blade Adjustable Sway Bar
  • Lifetime Warranty
Brand SuperPro
SKU RC0001RZ-22
Unit Of Measure Each
