SuperPro Panhard Rod Bush Kit

SKU: SPF0182K


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 36 mm 30 mm
ID (B) 25 mm 20.6 mm
Length (C) 21.5 mm 21.5 mm
Flange Thickness (D) 6.5 mm 6.5 mm
Flange OD (E) 45 mm 40 mm
C/Tube Quantity 1 /1 1 /1
C/Tube ODxIDxL 20.5x14.3x44.4 / 25x19x44.5 mm 20.5x14.3x44.4 / 25x19x44.5 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 36 30
ID (B) 25 20.6
Length (C) 21.5 21.5
FL (D) 6.5 6.5
FLOD (E) 45 40
C/Tube Qty 1 /1 1 /1
C/Tube Size 20.5x14.3x44.4 / 25x19x44.5 20.5x14.3x44.4 / 25x19x44.5
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here SuperPro Suspensions Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.208kg0.46lbs
Length5cm1.97"
Width21cm8.27"
Height15.5cm6.1"

Misc. Product Information

More Information
SKU IconSKU
SPF0182K
Kit Contents IconKit Contents

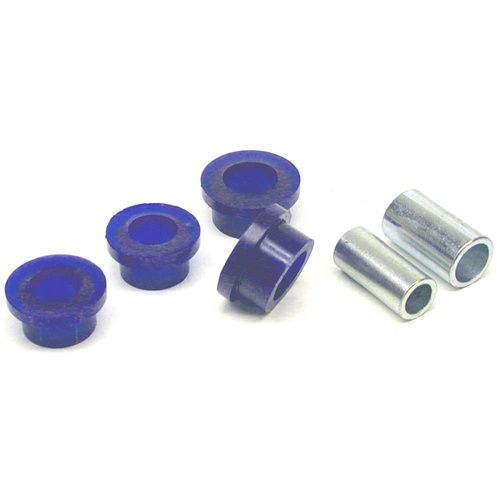

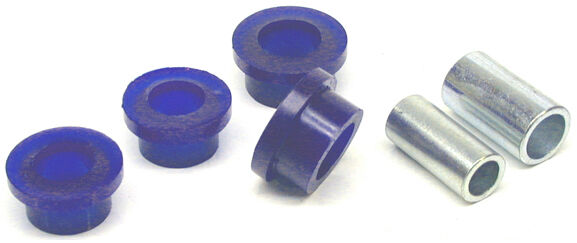

4 Bushings, 2 Tubes
Kits Required IconKits Required
1
Fitting Position IconFitting Position
Front Axle
Foot Note 3 IconFoot Note 3
lifetime warranty
Sub brand IconSub brand
SuperPro SPF
EAN IconEAN
9317745001829
Product Note IconProduct Note
Boost precision and control; a complete, premium upgrade. Includes: 4 Bushings & 2 Tubes
  • Lifetime Warranty
Brand SuperPro
SKU SPF0182K
Unit Of Measure Kit
