SuperPro Lower Outer-Front Trunnion Bush Kit

SKU: SPF1844SSK


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 8 mm
OD (A) 22.65 mm
ID (B) 17.5 mm
Length (C) 14 mm
Flange Thickness (D) 2.5 mm
Flange OD (E) 34 mm
C/Tube Quantity 4
C/Tube ODxIDxL 17.6x14.35x30 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 8
OD (A) 22.65
ID (B) 17.5
Length (C) 14.0
FL (D) 2.5
FLOD (E) 34
C/Tube Qty 4
C/Tube Size 17.6x14.35x30
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here SuperPro Suspensions Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.132kg0.29lbs
Length5cm1.97"
Width21cm8.27"
Height15.5cm6.1"

Misc. Product Information

More Information
SKU IconSKU
SPF1844SSK
Kit Contents IconKit Contents
8 Bushings, 4 Tubes
Kits Required IconKits Required
1
Fitting Position IconFitting Position
Front Axle
Foot Note 3 IconFoot Note 3
lifetime warranty
Sub brand IconSub brand
SuperPro SPF
EAN IconEAN
9317745018445
Product Note IconProduct Note

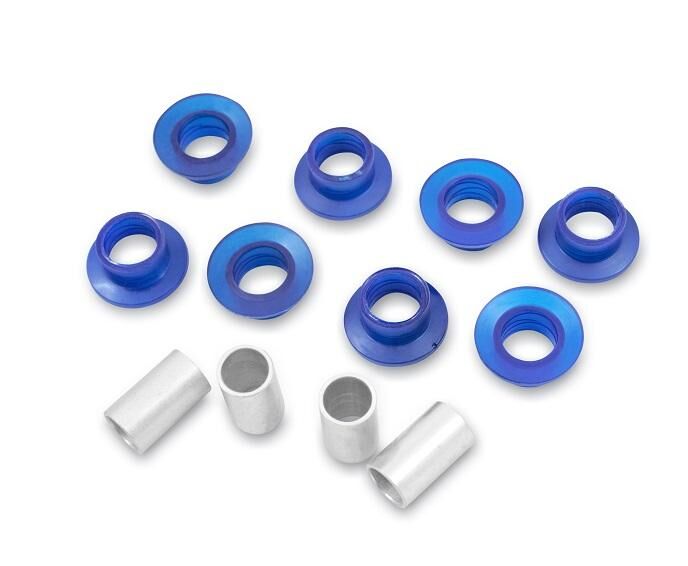

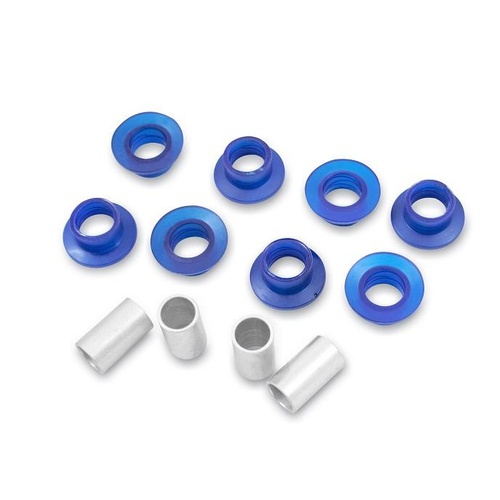

Built tough and designed to be maintenance free; a complete, premium upgrade. Includes: 8 Lower Outer-Front Trunnion Bushings & 4 Tubes
  • Lifetime Warranty
Brand SuperPro
SKU SPF1844SSK
Unit Of Measure Kit
