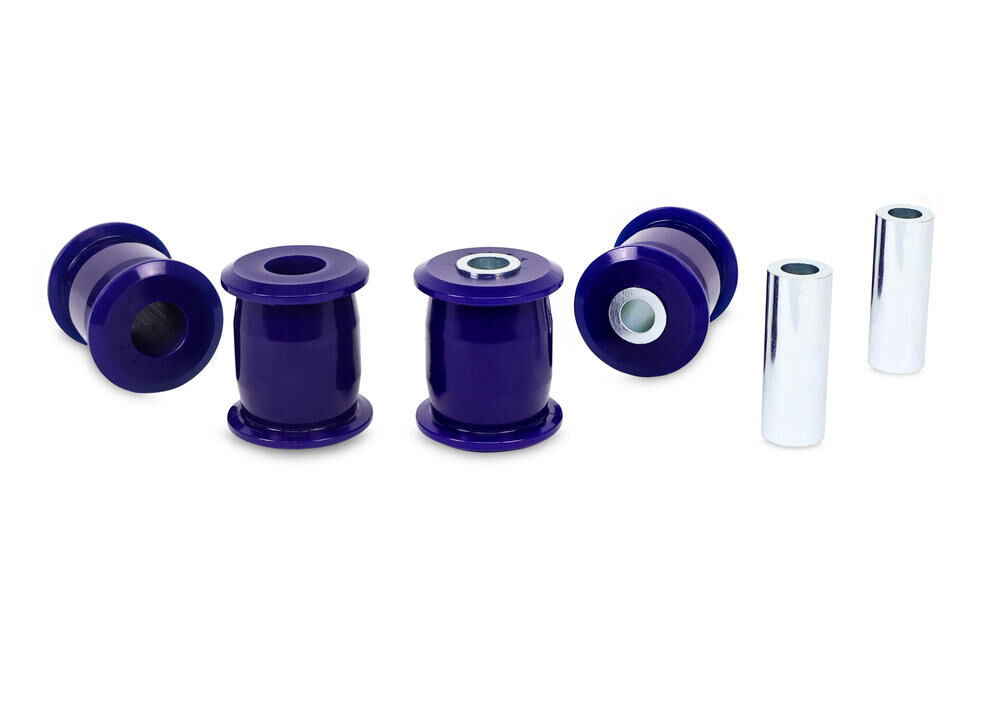

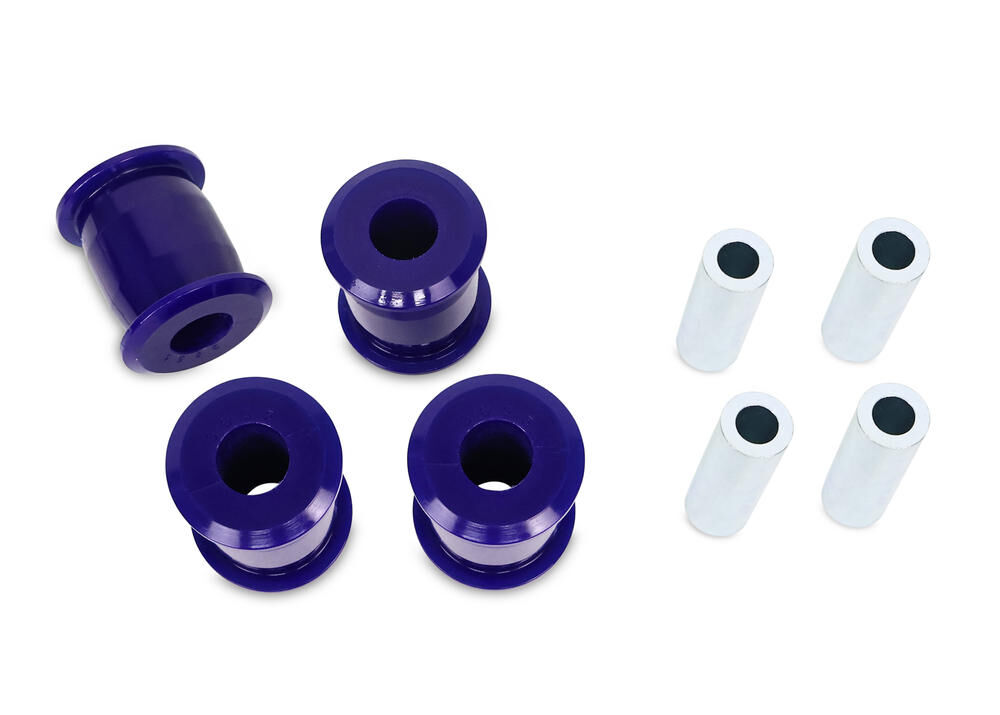

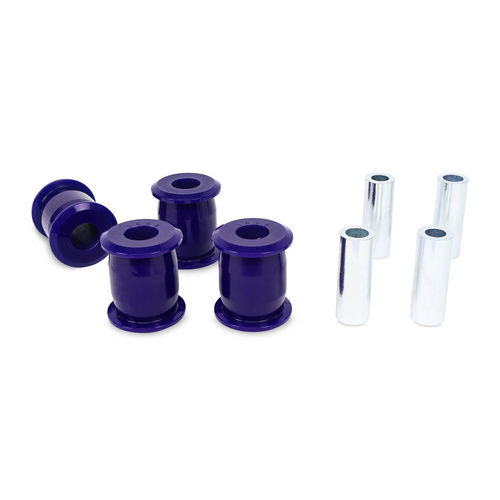

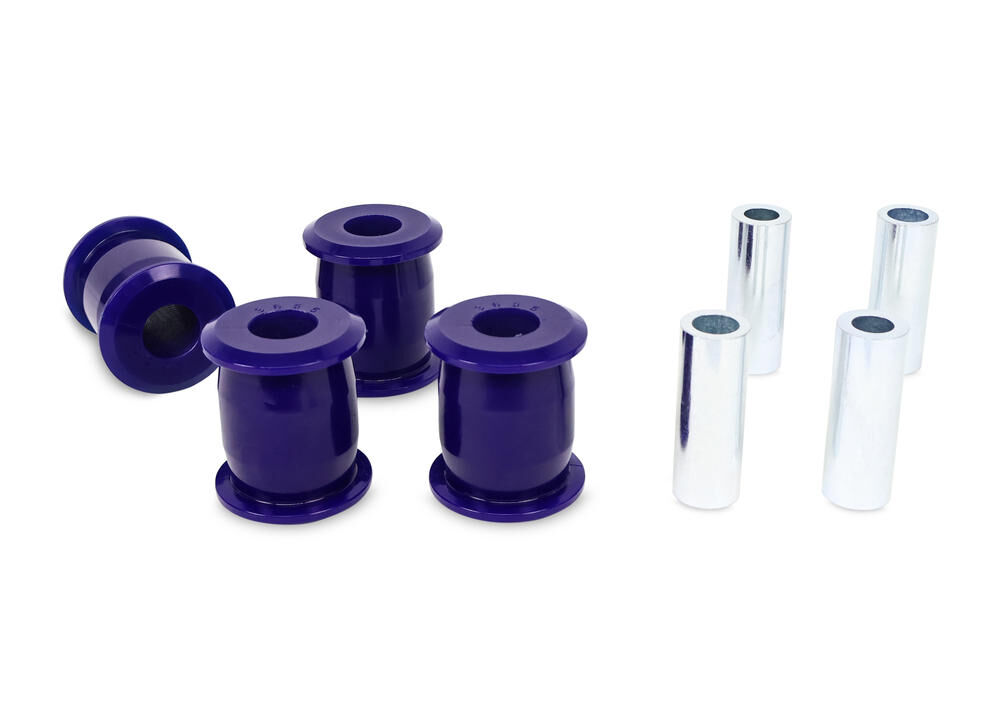

SuperPro Front Trailing Arm Lower - Bushing Kit to Suit Jeep Gladiator JT and Wrangler JL

SKU: SPF5776K

Benefit Note: Trailing arm bushings stabilise the movement of the arms to ensure the correct geometry is maintained in all situations. Worn or rubber bushes in these locations lead to dynamic changes in wheel alignment that effect the handling of a vehicle as well as the tyre life. SuperPro Bushings solve this issue and are the perfect repair or repair upgrade solution.


Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 4 mm
OD (A) 48 mm
ID (B) 23.5 mm
Length (C) 65 mm
Flange Thickness (D) 6 mm
Flange OD (E) 56 mm
C/Tube Quantity 2 / 2
C/Tube ODxIDxL 24x14.3x66.5 / 24x16.2x66.5 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

Bush Type 10
QTY 4
OD (A) 48
ID (B) 23.5
Length (C) 65.0
FL (D) 6
FLOD (E) 56
C/Tube Qty 2 / 2
C/Tube Size 24x14.3x66.5 / 24x16.2x66.5
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here SuperPro Suspensions Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.8kg1.76lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKU IconSKU
SPF5776K
Kit Contents IconKit Contents
4 Bushings, 4 Tubes
Kits Required IconKits Required
1
Fitting Position IconFitting Position
Front Axle
Foot Note 3 IconFoot Note 3
lifetime warranty
Sub brand IconSub brand
SuperPro SPF
EAN IconEAN
9317745057765
Product Note IconProduct Note
Engineered with strength and durability in mind; a complete, premium upgrade. Includes: 4 Trailing Arm Bushings & 4 Tubes
  • Lifetime Warranty
Brand SuperPro
SKU SPF5776K
Unit Of Measure Kit
