When lifting the 2005 to current model Hilux 4WD, the Constant Velocity (CV) joints are put on an increased angle, helping to accelerate the wear on the joint and putting additional stress on the CV boots that will lead to splitting and premature failure of the CV.

The SuperPro bolt on kit corrects the geometry of the front axles and CV's by lowering the front diff approximately 25mm.

Reducing the angles the CV joints are operating at will help avoid the expensive replacement costs of CV's and boots.

This wear is accelerated further if larger & wider wheels and tyres are fitted.

Kit Specifications

Bush Type
Bush Quantity
OD (A)
ID (B)
Length (C)
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size

Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	0.8kg	1.76lbs
Length	5cm	1.97"
Width	26cm	10.24"
Height	18.5cm	7.28"

Misc. Product Information

More Information

SKU	TRCHILUXDD

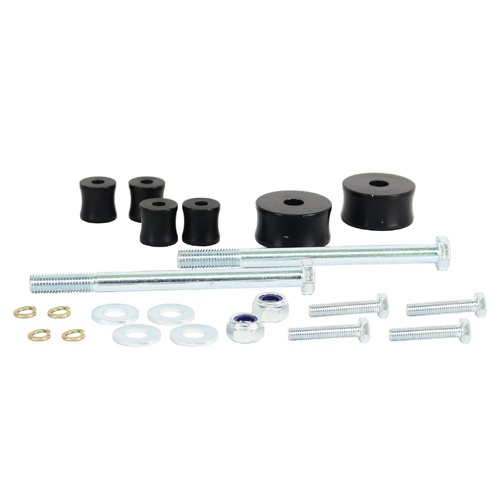

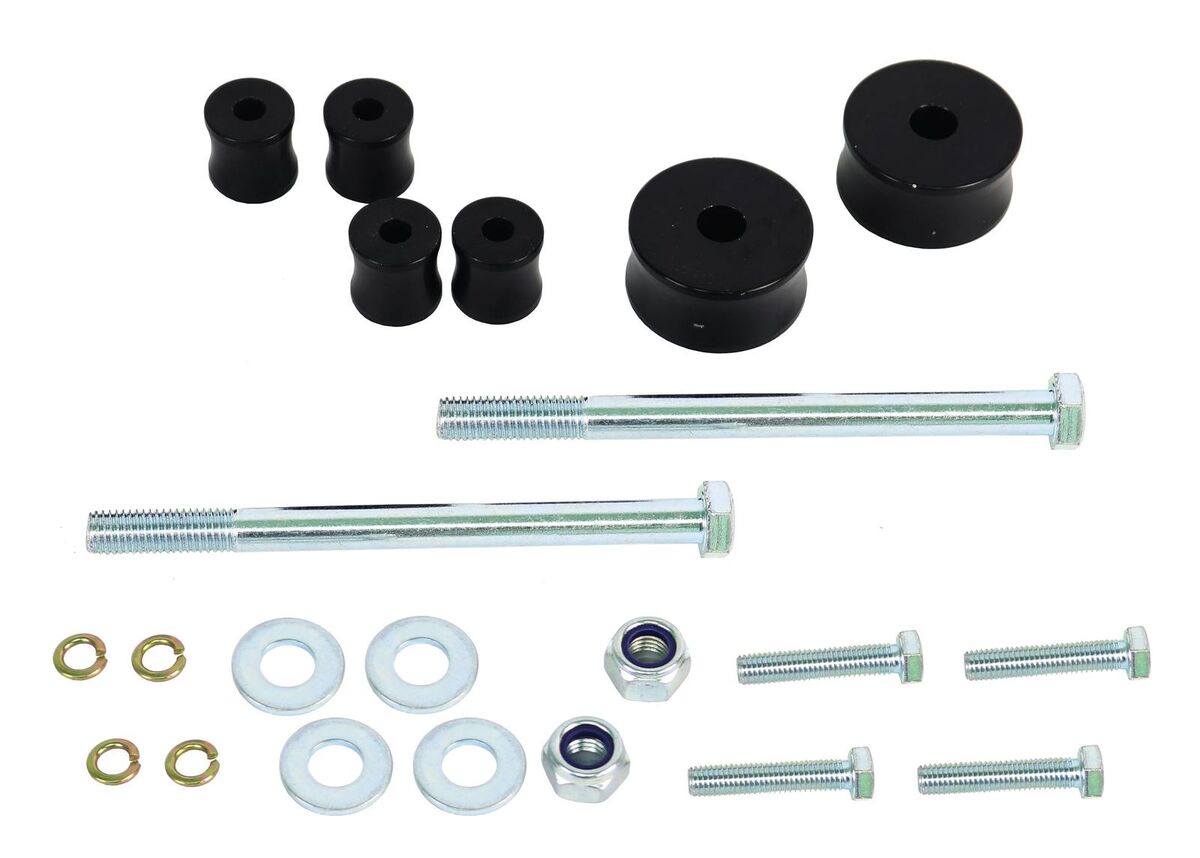

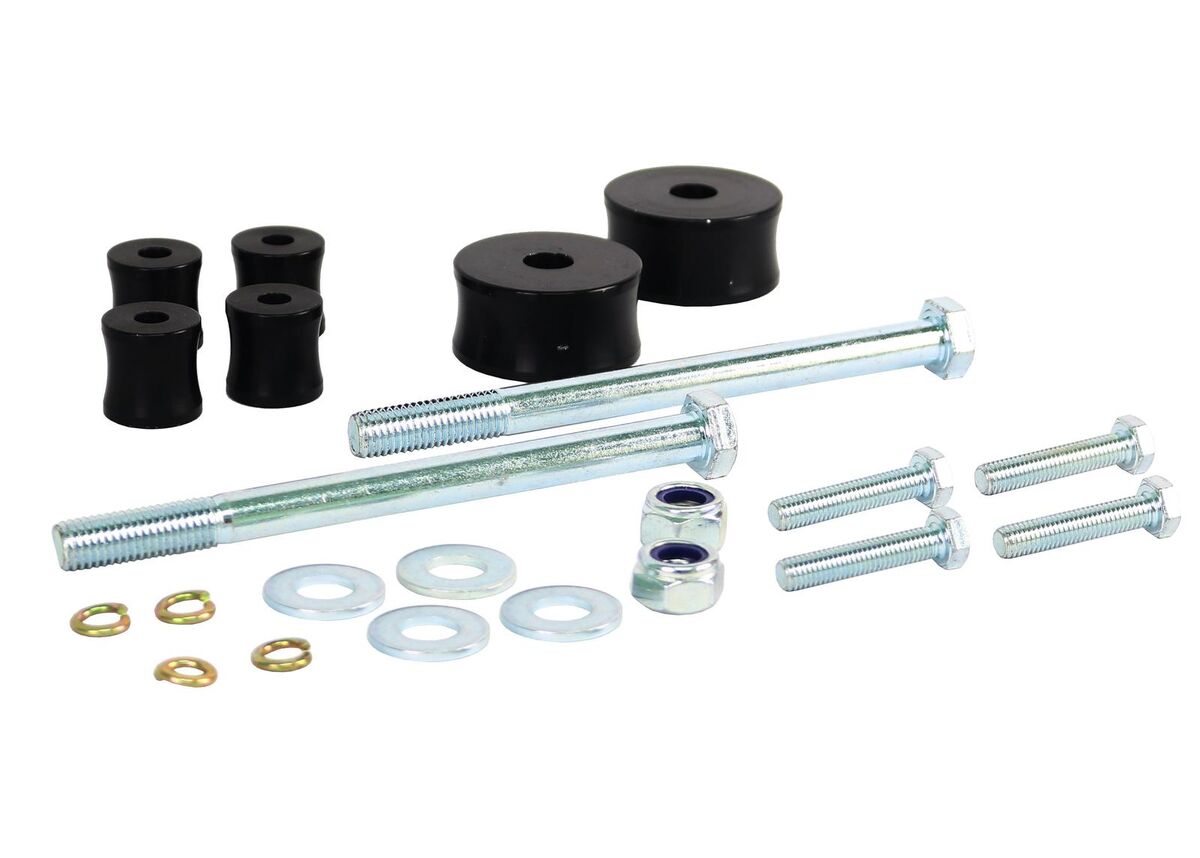

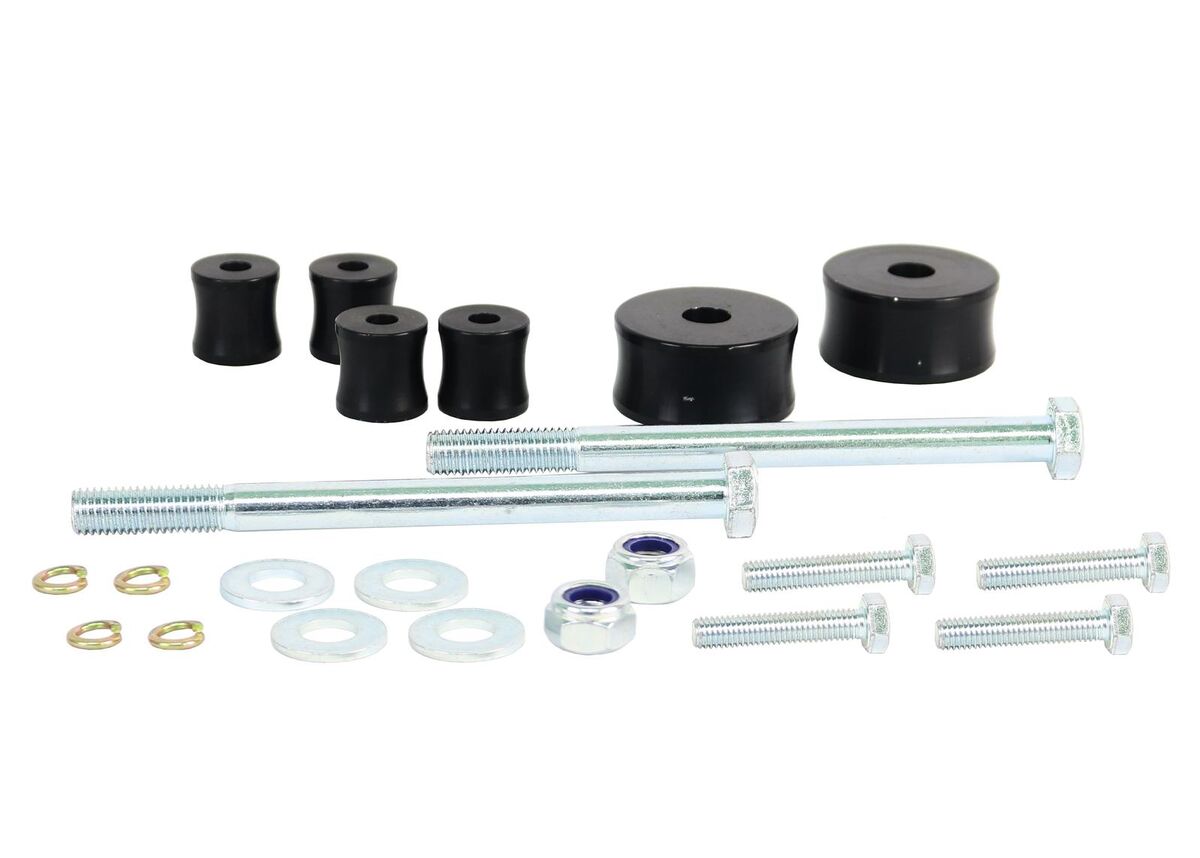

Kit Contents	6SP,6BOLTS,8W,2N
Kits Required	1
Fitting Position	Front Axle
Foot Note 3	Lifetime Warranty
Sub brand	Roll Control
EAN	9317745780854
Product Note	Enhance performance and traction; a complete, premium upgrade. Includes: 6 Spacers, Bolts, 8 Washers & 2 Nuts
