Suits Lifted vehicles.

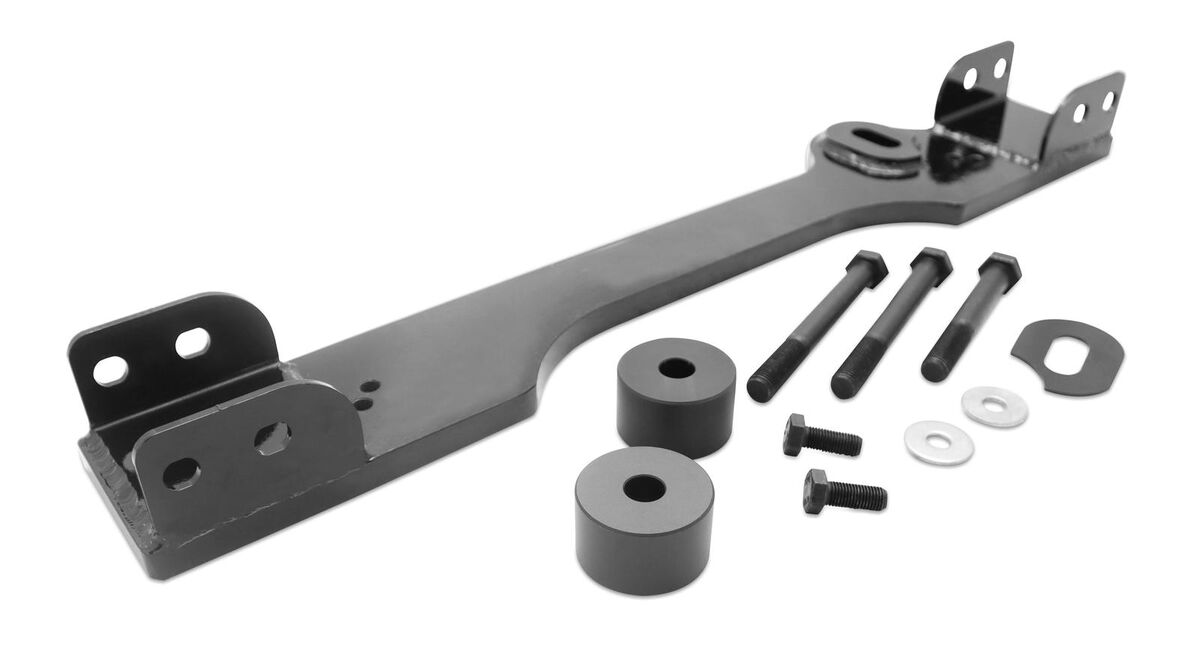

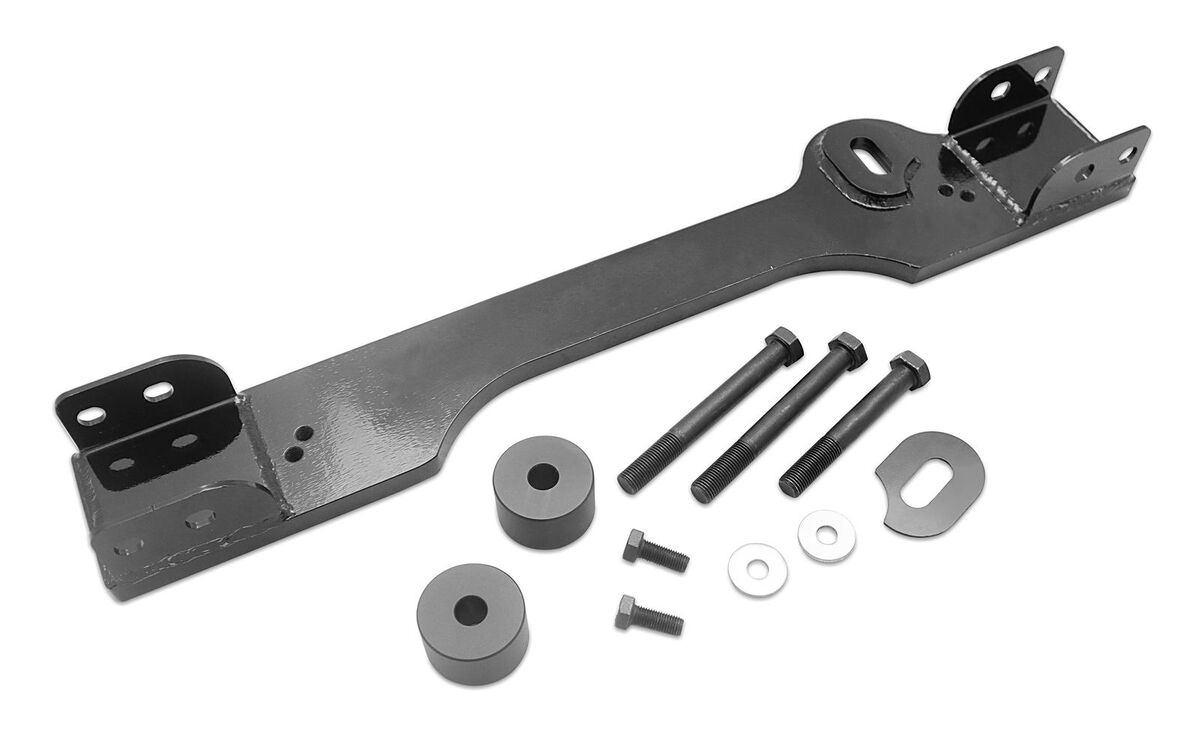

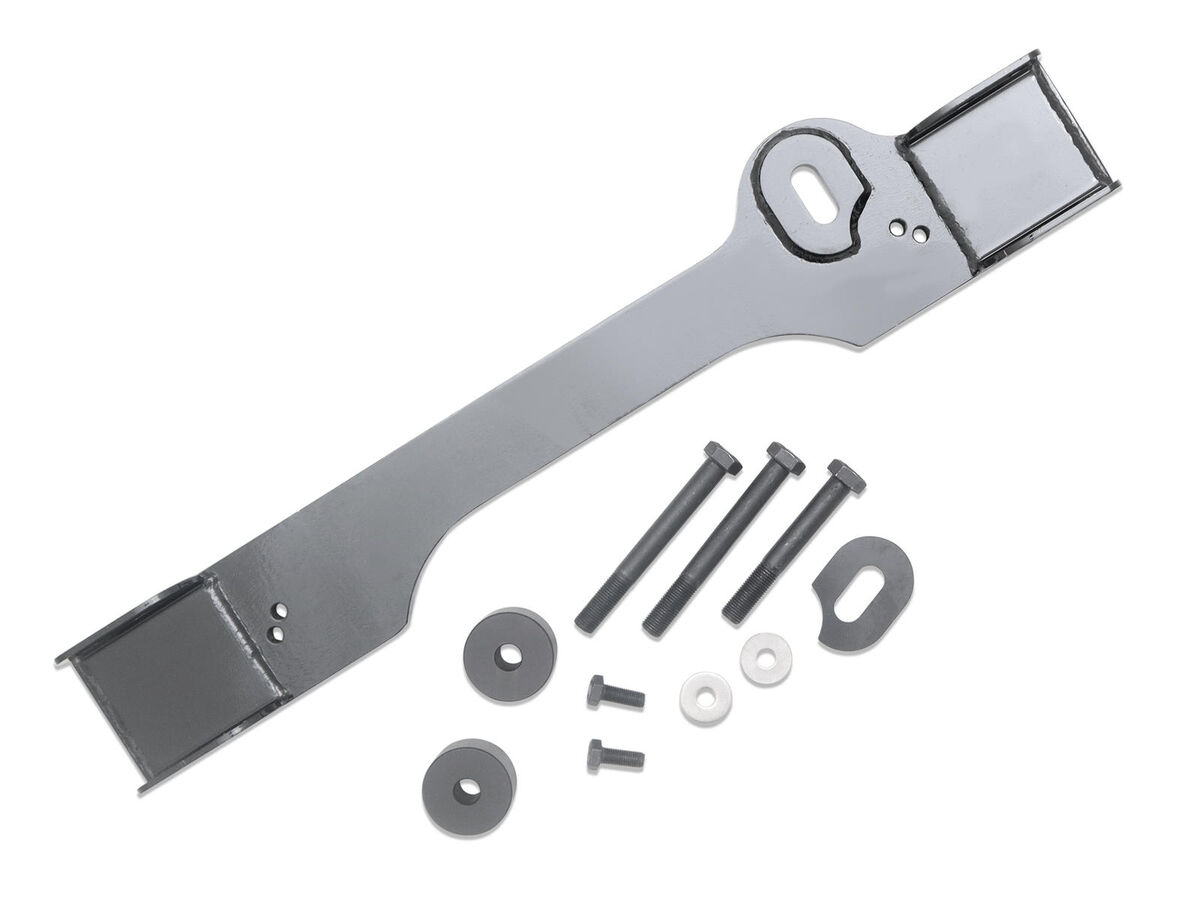

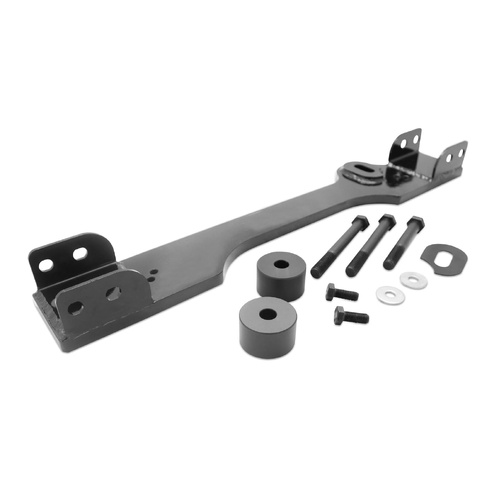

The kit is supplied complete with all required spacers, bolts, washers and nuts.

When lifting a vehicle, the Constant Velocity (CV) joints are put on an increased angle, helping to accelerate the wear on the joint and putting additional stress on the CV boots. The added down travel from adding extended shocks can also cause the joint to exceed the maximum operating angle, which causes the CV joints to bind up and cease to operate.

The SuperPro bolt-on kit corrects the geometry of the front axles and CV's by lowering the front diff approximately 25mm.

Reducing the angles on the CV joints can help get them back into the normal operating range, helping to avoid the expensive replacement costs of CV's.

Kit Specifications

Bush Type
Bush Quantity
OD (A)
ID (B)
Length (C)
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size

Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	7.7kg	16.98lbs
Length	0.8cm	0.31"
Width	10cm	3.94"
Height	20cm	7.87"

Misc. Product Information

More Information

SKU	TRCCOLDD
Kit Contents	1 Kit
Kits Required	1
Fitting Position	Front Axle
Foot Note 3	Lifetime Warranty
Sub brand	Roll Control
EAN	9317745800439
Product Note	Enhance performance and traction; a complete, premium upgrade. Includes: 1 Kit
