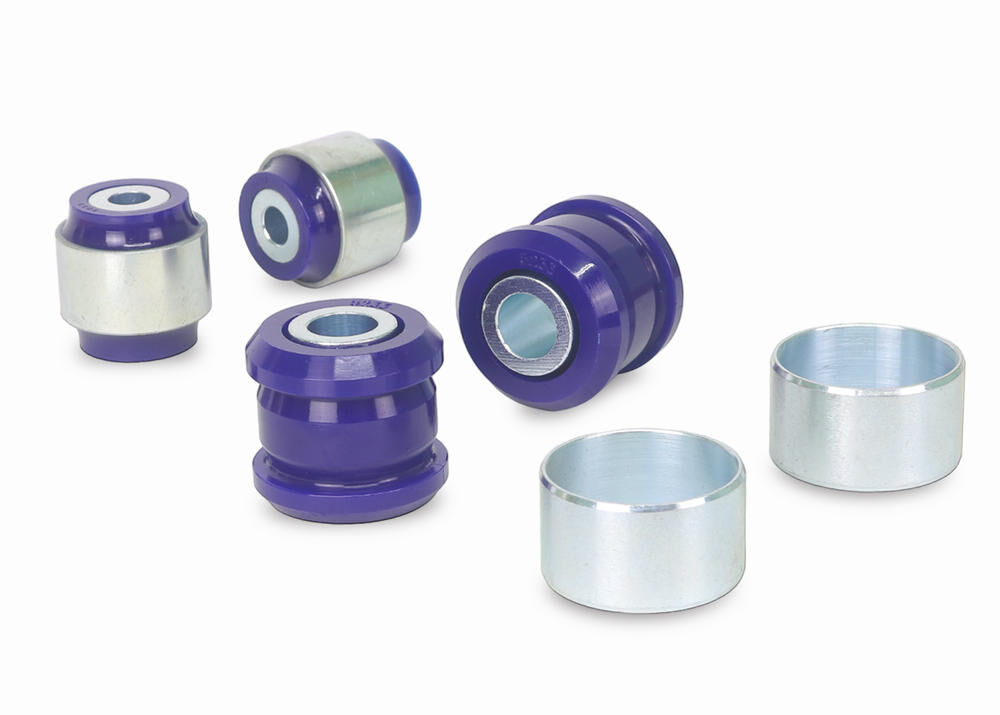

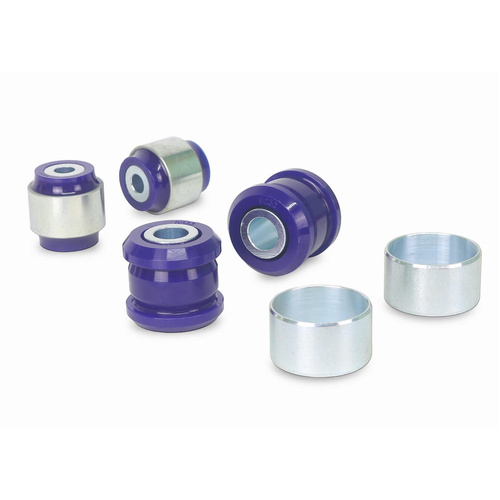

SuperPro Front Control Arm Lower Front & Rear Bush Kit to suit Nissan Micra K13 & Note E12

SKU: SPF5233K


Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing 17 - Shell With Flange Bushing
Bush Quantity 2 mm 2 mm
OD (A) 49 mm 44.5 mm
ID (B) BI=33.8 BII=29.8 mm 23.9 mm
Length (C) 49 mm 45 mm
Flange Thickness (D) 10.4 mm 9.5 mm
Flange OD (E) 56 mm 33.9 mm
C/Tube Quantity 2 / 2 2 / 2
C/Tube ODxIDxL 24x12.3x45 / 30x19.20x50 mm 24x12.3x45 / 30x19.20x50 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing
Bushing Type 17 - Shell With Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 10 17
QTY 2 2
OD (A) 49 44.5
ID (B) BI=33.8 BII=29.8 23.9
Length (C) 49.0 45.0
FL (D) 10.4 9.5
FLOD (E) 56 33.9
C/Tube Qty 2 / 2 2 / 2
C/Tube Size 24x12.3x45 / 30x19.20x50 24x12.3x45 / 30x19.20x50
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here SuperPro Suspensions Bushing Type & Size Register

Bushing Type 10
Bushing Type 17

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.1kg2.43lbs
Length5cm1.97"
Width26cm10.24"
Height18.5cm7.28"

Misc. Product Information

More Information
SKU IconSKU
SPF5233K
Kit Contents IconKit Contents
4B,4T,2S
Kits Required IconKits Required
1
Fitting Position IconFitting Position
Front Axle
Foot Note 1 IconFoot Note 1
Standard replacement
Foot Note 3 IconFoot Note 3
lifetime warranty
Sub brand IconSub brand
SuperPro SPF
EAN IconEAN
9317745052333
Product Note IconProduct Note
Holds vehicle alignment, boosting performance; a complete, premium upgrade. Includes: 4 Control Arm Bushings, Tubes & Sleeves
  • Lifetime Warranty
Brand SuperPro
SKU SPF5233K
Unit Of Measure Kit
