SuperPro Front Control Arm Lower Front Bush Kit to suit Nissan Qashqai & Renault Kadjar

SKU: SPF5180K

Control arm bushes stabilise the movement of the arms to ensure the correct geometry is maintained in all situations. Worn or rubber bushes in these locations lead to dynamic changes in wheel alignment that effect the handling of a vehicle as well as the tyre life.

SuperPro Bushings solve this issue and are the perfect repair or repair upgrade solution.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing 7 - Pin Bush With & Without Spigot
Bush Quantity 2 mm 4 mm
OD (A) 55 mm 45 mm
ID (B) 31 mm 32.5 mm
Length (C) 20.5 mm 15.25 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity 2 2
C/Tube ODxIDxL 33x14.2x50 mm 33x14.2x50 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

Bush Type 16 7
QTY 2 4
OD (A) 55 45
ID (B) 31 32.5
Length (C) 20.5 15.3
FL (D)
FLOD (E)
C/Tube Qty 2 2
C/Tube Size 33x14.2x50 33x14.2x50
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here SuperPro Suspensions Bushing Type & Size Register

Bushing Type 7
Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.8kg1.76lbs
Length5cm1.97"
Width21cm8.27"
Height15.5cm6.1"

Misc. Product Information

More Information
SKU IconSKU
SPF5180K
Kit Contents IconKit Contents

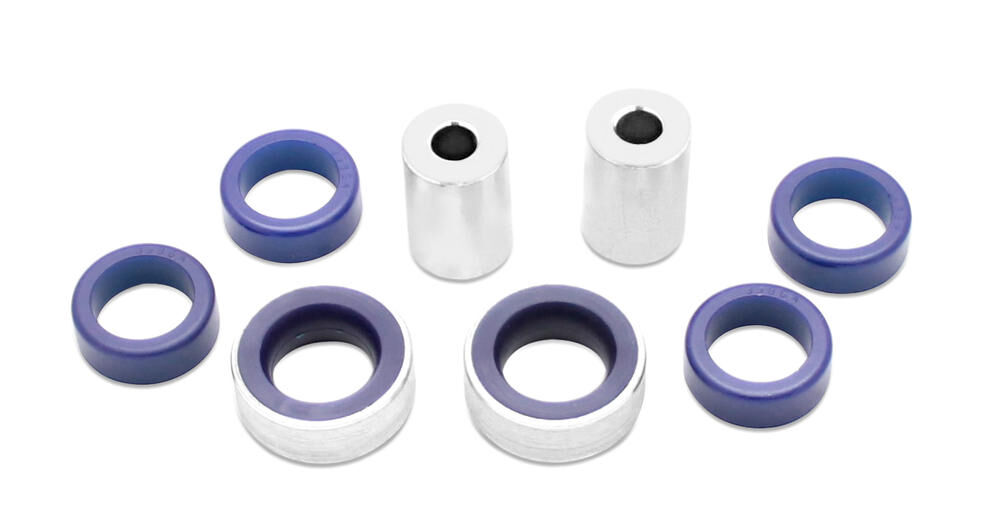

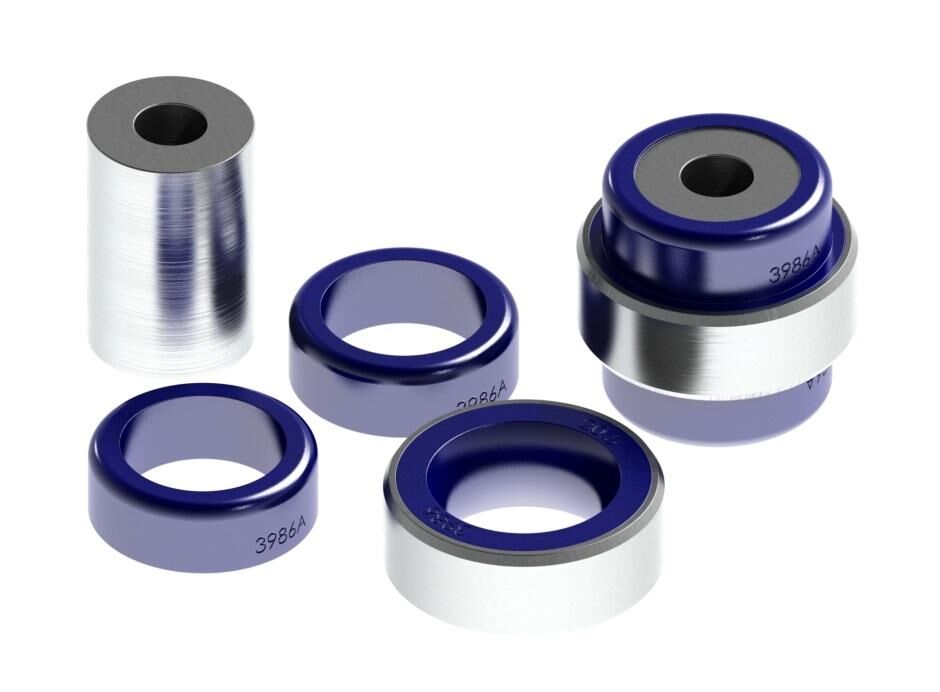

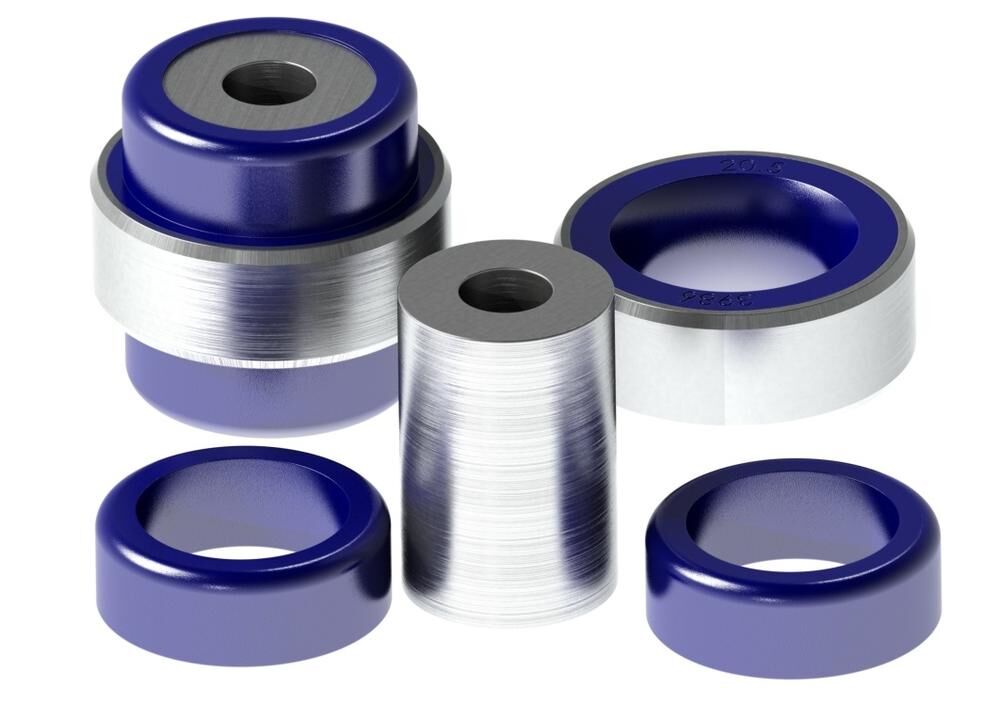

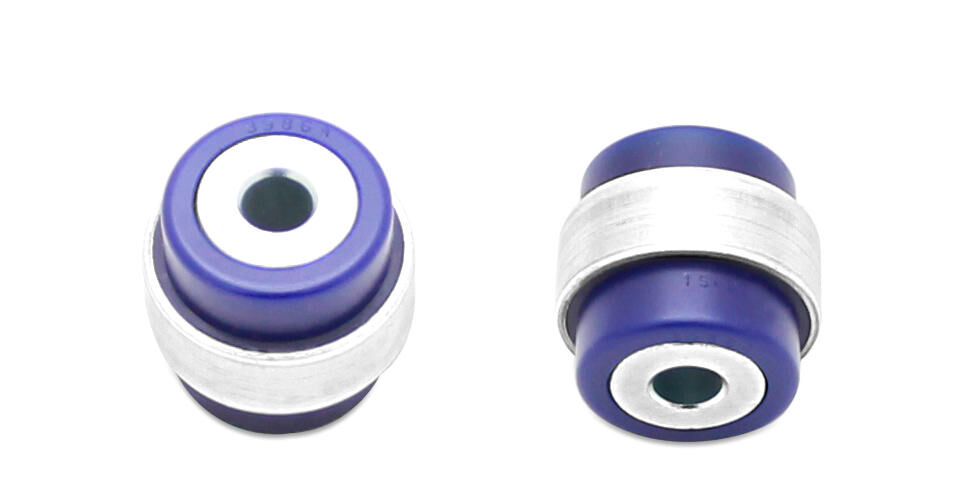

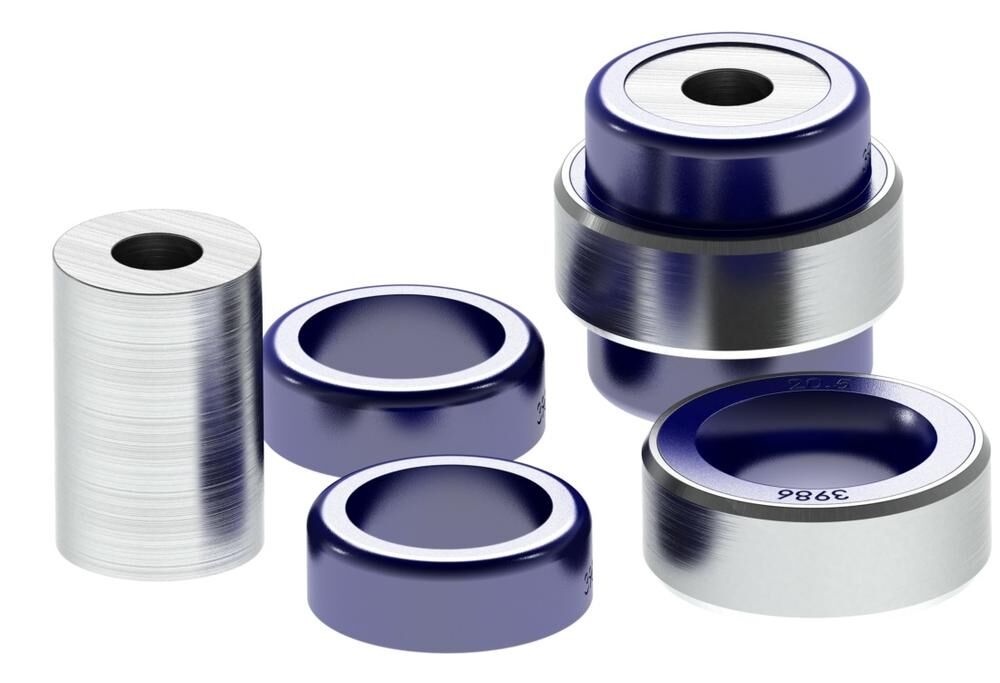

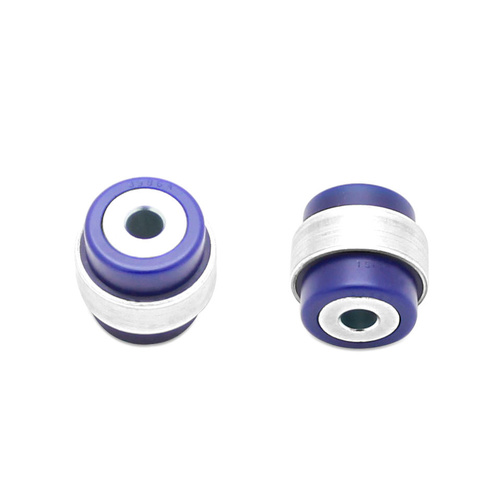

6 Bushings, 2 Tubes
Kits Required IconKits Required
1
Fitting Position IconFitting Position
Front Axle
Foot Note 3 IconFoot Note 3
lifetime warranty
Sub brand IconSub brand
SuperPro SPF
EAN IconEAN
9317745051800
Product Note IconProduct Note
Improve suspension geometry and cornering traction; a complete, premium upgrade. Includes: 6 Control Arm Bushings & 2 Tubes
  • Lifetime Warranty
Brand SuperPro
SKU SPF5180K
Unit Of Measure Kit
