SuperPro Front Control Arm - Geometry Correction Kit to Suit Audi, Seat, Skoda and Volkswagen MQB Fwd/Awd

SKU: KIT5360CADJK

Kit Content: SPF4175K and SPF4178K

This kit has all the essential bushes needed to effectively increase the handling performance of a modified vehicle. Ideally suited as an entry level kit for a modified vehicle with bigger wheels or tyres, brakes and lowered suspension.

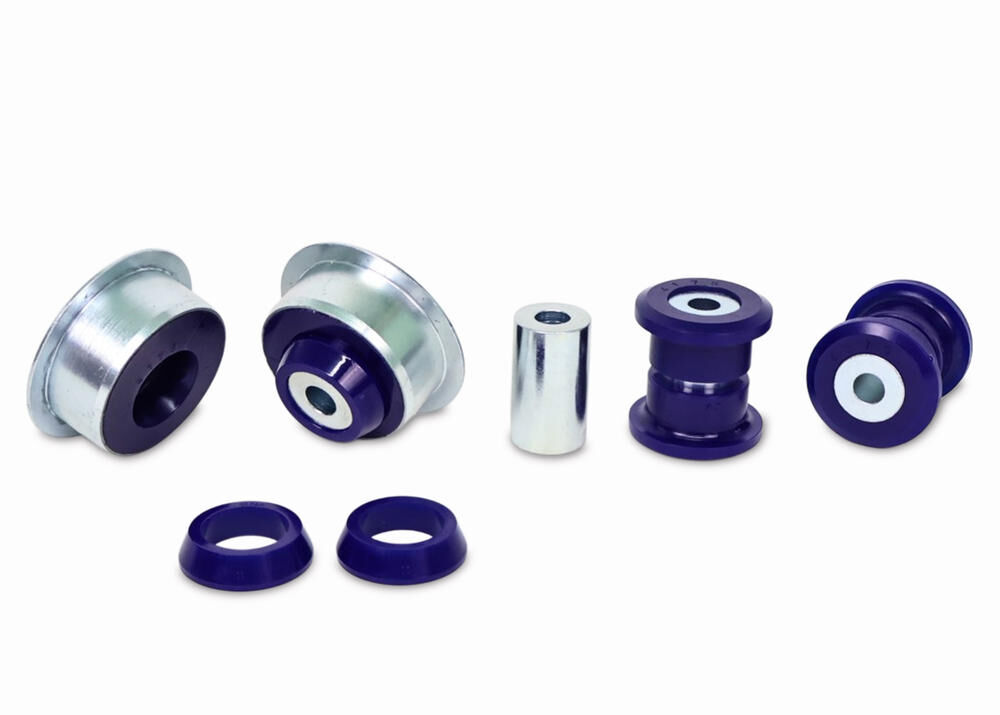

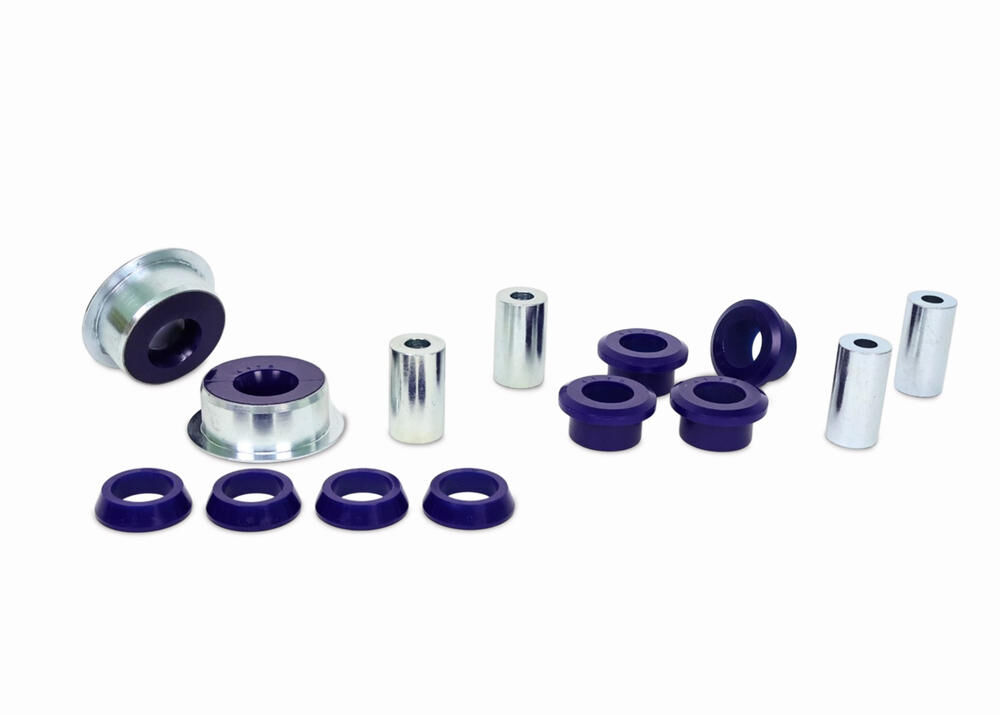

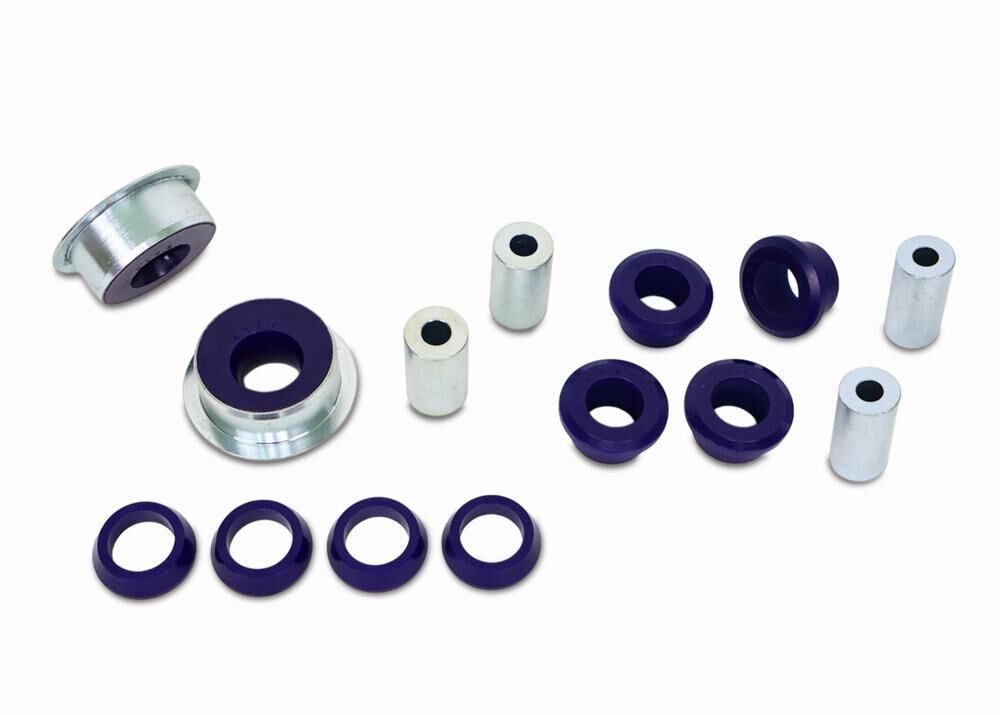

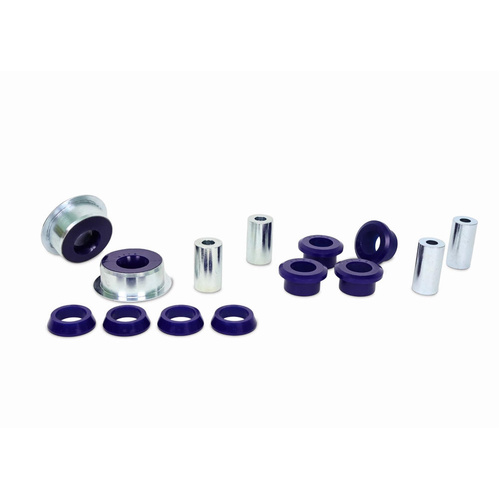

Kit Contains:

  • Front Control Arm Lower-Inner Front Bush Kit
  • Front Control Arm Lower-Inner Rear Anti Lift Bush Kit - Performance Option

Kit Specifications

Bush Type 1 - Shackle Bushing 3 - Half Tapered Cotton Reel Bush 17 - Shell With Flange Bushing
Bush Quantity 4 mm 4 mm 2 mm
OD (A) 37 mm AI=44 AII=36.5 mm 64.4 mm
ID (B) 27 mm 28.5 mm 28.57 mm
Length (C) 25 mm 11 mm 28 mm
Flange Thickness (D) 7 mm 2 mm 11 mm
Flange OD (E) 50 mm
C/Tube Quantity 2 / 2 2 / 2 2 / 2
C/Tube ODxIDxL 27x12.3x54 / 28.57x13x50 mm 27x12.3x54 / 28.57x13x50 mm 27x12.3x54 / 28.57x13x50 mm
Similar Bushing Size Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 3 - Half Tapered Cotton Reel Bush
Bushing Type 17 - Shell With Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Offset No
Caster Offset No
Caster Offset No

Bushing Design Dimensions (mm)

Bush Type 1 3 17
QTY 4 4 2
OD (A) 37 AI=44 AII=36.5 64.4
ID (B) 27 28.5 28.57
Length (C) 25.0 11.0 28.0
FL (D) 7 2 11
FLOD (E) 50
C/Tube Qty 2 / 2 2 / 2 2 / 2
C/Tube Size 27x12.3x54 / 28.57x13x50 27x12.3x54 / 28.57x13x50 27x12.3x54 / 28.57x13x50
Similar Bushings Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here SuperPro Suspensions Bushing Type & Size Register

Bushing Type 1
Bushing Type 3
Bushing Type 17

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.5kg3.31lbs
Length22cm8.66"
Width14cm5.51"
Height14cm5.51"

Misc. Product Information

More Information
SKU IconSKU
KIT5360CADJK
Kit Contents IconKit Contents
10 Bushings, 4 Tubes
Kits Required IconKits Required
1
Fitting Position IconFitting Position
Front Axle
Foot Note 1 IconFoot Note 1
Performance Alignment
Foot Note 3 IconFoot Note 3
lifetime warranty
Sub brand IconSub brand
SuperPro Kits
EAN IconEAN
9317745811992
Product Note IconProduct Note
  • Lifetime Warranty
Brand SuperPro
SKU KIT5360CADJK
Unit Of Measure Kit
