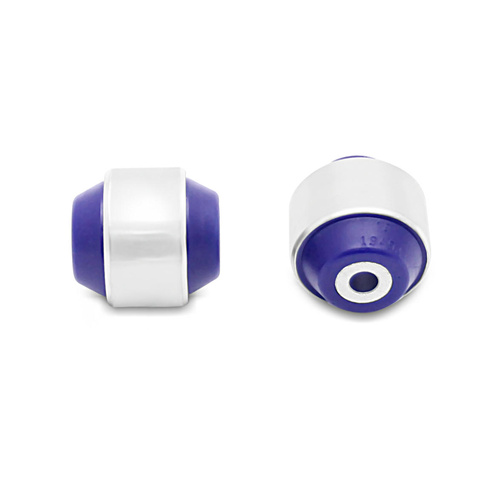

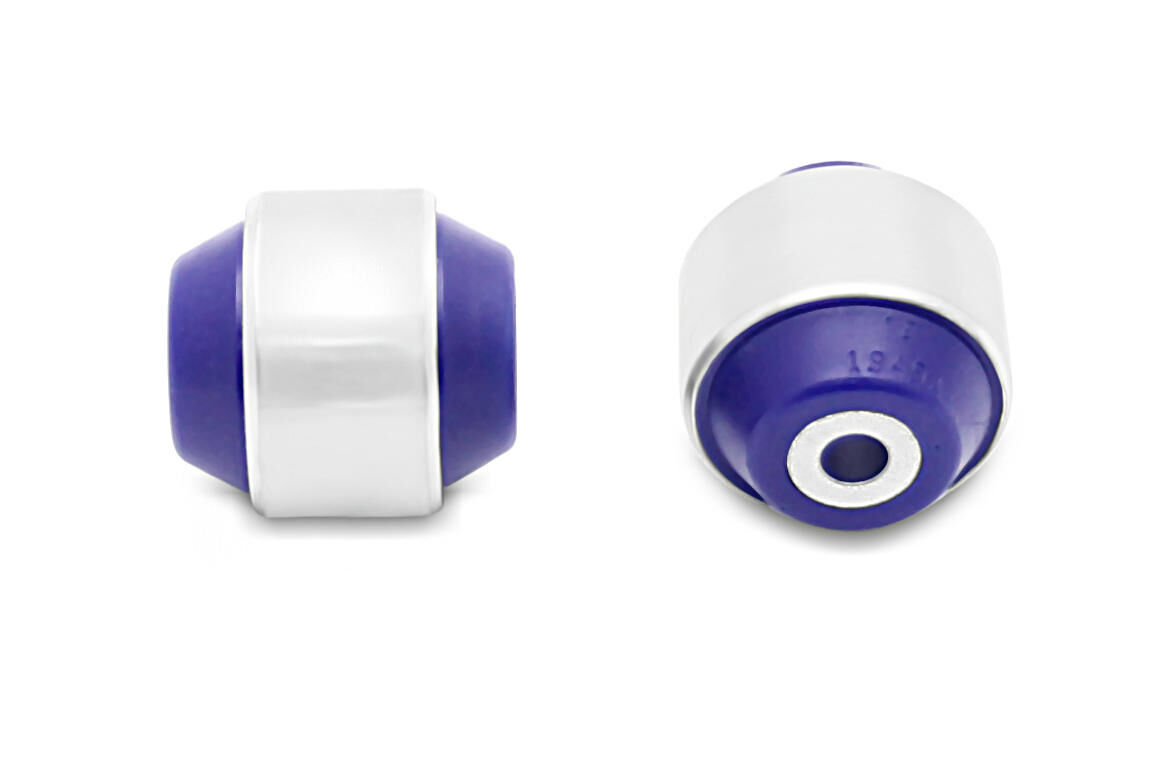

SuperPro Control Arm Lower-Rear Bush Kit

SKU: SPF4685K


Kit Specifications

Bush Type 3 - Half Tapered Cotton Reel Bush 16 - Shell Without Flange Bushing
Bush Quantity 4 mm 2 mm
OD (A) AI=43 AII=31 mm 52 mm
ID (B) 22 mm 22.22 mm
Length (C) 12 mm 30 mm
Flange Thickness (D) 1 mm
Flange OD (E) 43 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 22.22x12.3x54.5 mm 22.22x12.3x54.5 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register

Bushing Type 3 - Half Tapered Cotton Reel Bush
Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 3 16
QTY 4 2
OD (A) AI=43 AII=31 52
ID (B) 22 22.22
Length (C) 12.0 30.0
FL (D) 1
FLOD (E) 43
C/Tube Qty 2 2
C/Tube Size 22.22x12.3x54.5 22.22x12.3x54.5
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here SuperPro Suspensions Bushing Type & Size Register

Bushing Type 3
Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.35kg0.77lbs
Length5cm1.97"
Width26cm10.24"
Height18.5cm7.28"

Misc. Product Information

More Information
SKU IconSKU
SPF4685K
Kit Contents IconKit Contents
2B,4SP,2T
Kits Required IconKits Required
1
Fitting Position IconFitting Position
Front Axle
Foot Note 1 IconFoot Note 1
Standard replacement
Foot Note 2 IconFoot Note 2
to suit 52mm ID arm
Foot Note 3 IconFoot Note 3
lifetime warranty
Sub brand IconSub brand
SuperPro SPF
EAN IconEAN
9317745046851
Product Note IconProduct Note
Improves steering feedback and response; a complete, premium upgrade. Includes: 2 Control Arm Bushings, Tubes & 4 Spacers
  • Lifetime Warranty
Brand SuperPro
SKU SPF4685K
Unit Of Measure Kit
