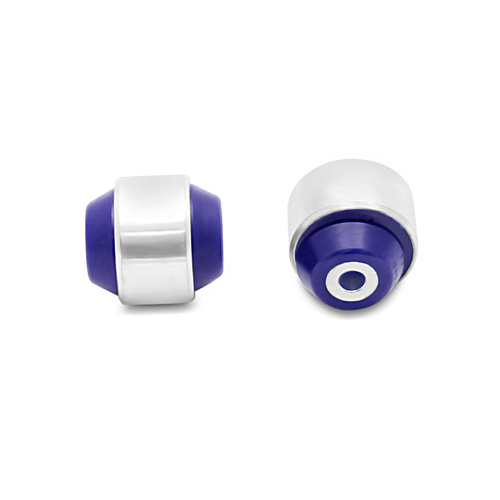

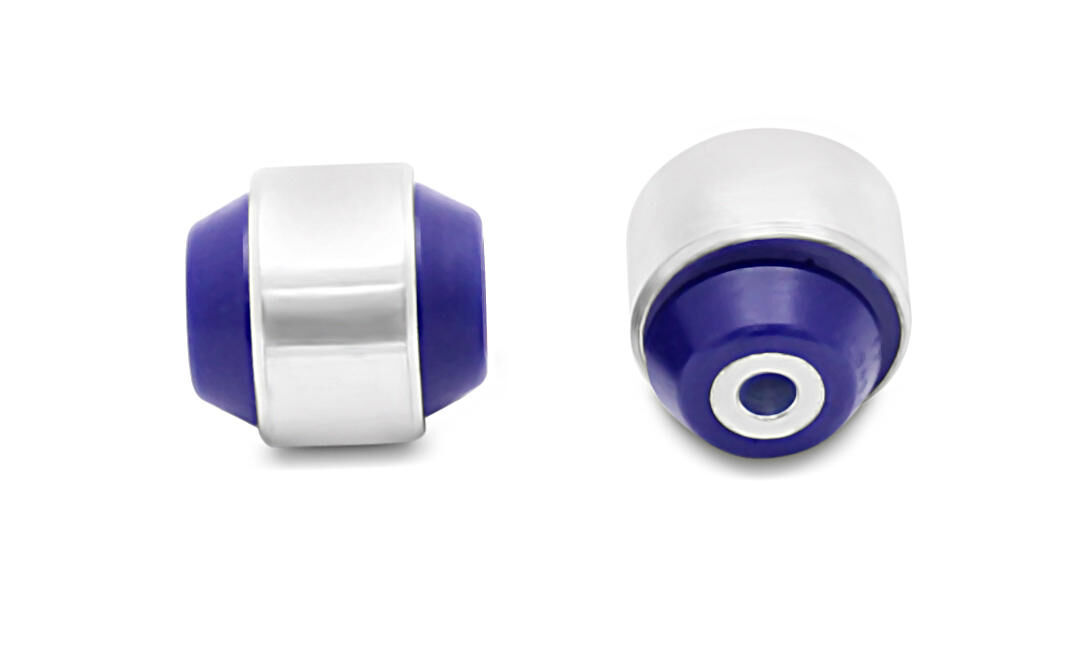

SuperPro Control Arm Lower-Rear Bush Kit - Single Offset
SKU: SPF4686K
SKU: SPF4686K
- Maintains optimal alignment and makes handling consistent; a complete, premium upgrade. Includes: 2 Control Arm Bushings, Tubes & 4 Spacers
Use this kit to rectify a steering pull after a vehicle has been aligned to the manufacturer's specifications.
Supplied with an offset bush to be fitted to the passenger side and a standard bush for the driver's side, these kits stagger the caster or setback by repositioning the ball joint slightly forward in the chassis.
This is a non tyre wearing geometry change that has a substantial effect on a vehicles ability to track straight and other handling characteristics.
Follow the installation instructions and the problem is solved.
Kit Specifications
| Bush Type | 16 - Shell Without Flange Bushing | 3 - Half Tapered Cotton Reel Bush | 16 - Shell Without Flange Bushing |
|---|---|---|---|
| Bush Quantity | 1 mm | 4 mm | 1 mm |
| OD (A) | 52 mm | AI=43 AII=31 mm | 52 mm |
| ID (B) | 22.22 mm | 22 mm | 22.22 mm |
| Length (C) | 30 mm | 12 mm | 30 mm |
| Flange Thickness (D) | 1 mm | 12.5 mm | |
| Flange OD (E) | 43 mm | ||
| C/Tube Quantity | 2 | 2 | 2 |
| C/Tube ODxIDxL | 22.22x12.3x54.5 mm | 22.22x12.3x54.5 mm | 22.22x12.3x54.5 mm |
| Similar Bushing Size | Click Here | Click Here | Click Here |
Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register
| Alignment | Alignment Adjustment Type | Alignment On Car Adjustable |
|---|---|---|
| Caster | Offset | No |
| Caster | Offset | No |
| Caster | Offset | No |
Bushing Design Dimensions (mm)
| Bush Type | 16 | 3 | 16 |
|---|---|---|---|
| QTY | 1 | 4 | 1 |
| OD (A) | 52 | AI=43 AII=31 | 52 |
| ID (B) | 22.22 | 22 | 22.22 |
| Length (C) | 30.0 | 12.0 | 30.0 |
| FL (D) | 1 | 12.5 | |
| FLOD (E) | 43 | ||
| C/Tube Qty | 2 | 2 | 2 |
| C/Tube Size | 22.22x12.3x54.5 | 22.22x12.3x54.5 | 22.22x12.3x54.5 |
| Similar Bushings | Click Here | Click Here | Click Here |
Looking for that hard-to-find part? Start your search here SuperPro Suspensions Bushing Type & Size Register
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 0.583kg | 1.29lbs |
| Length | 5cm | 1.97" |
| Width | 26cm | 10.24" |
| Height | 18.5cm | 7.28" |
Misc. Product Information
 SKU | SPF4686K |
|---|---|
 Kit Contents | 2B,4SP,2T |
| Kits Required | 1 |
 Fitting Position | Front Axle |
| Foot Note 1 | alignment correction |
| Foot Note 2 | to suit 52mm ID arm |
| Foot Note 3 | lifetime warranty |
| Sub brand | SuperPro SPF |
| EAN | 9317745046868 |
| Product Note | Maintains optimal alignment and makes handling consistent; a complete, premium upgrade. Includes: 2 Control Arm Bushings, Tubes & 4 Spacers |
- Lifetime Warranty
| Brand | SuperPro |
| SKU | SPF4686K |
| Unit Of Measure | Kit |
