SuperPro Bushings are the perfect suspension upgrade or replacement solution!

• Lifetime Warranty
• Enhances your vehicles handling and performance
• Unaffected by extreme temperatures, oils, water or coolant
• A superior alternative to rubber: providing higher quality, quieter, longer lasting bushings
• Made with SuperPro's proprietary engineering-grade polyurethane formula
• Designed, engineered and manufactured in Australia

Upgrade your car with SuperPro for enhanced performance, better alignment and increased service life.

SuperPro is the leading aftermarket suspension bushing manufacturer with 40+ years of experience. SuperPro has a competitive edge over all aftermarket bushing brands with our products being developed, tested and designed in Australia, ensuring greater quality during the manufacturing and engineering process with the ability to develop advanced bushing designs. SuperPro bushings offer greater quality and reliability through their unique materials, made from a proprietary polyurethane mix which has been thoroughly tested and refined over 40+ years to suit Australia's harsh conditions. Our innovative bushings have been produced with the input of highly skilled suspension technicians and engineers, ensuring the best quality and evaluation in product development.

SuperPro polyurethane bushings provide various benefits including corrected or maintained steering geometry, better handling, increased safety, improved tyre wear, improved fuel efficiency and enhanced performance. Quality and excellence are ensured through an experienced and dedicated engineering team at SuperPro.

Kit Specifications

Bush Type	3 - Half Tapered Cotton Reel Bush	16 - Shell Without Flange Bushing	16 - Shell Without Flange Bushing
Bush Quantity	4 mm	1 mm	1 mm
OD (A)	AI=48 AII=34 mm	60.3 mm	60.3 mm
ID (B)	24 mm	21.8 mm	21.8 mm
Length (C)	12.5 mm	26.3 mm	26.3 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity	2	2	2
C/Tube ODxIDxL	24x14.3x51 mm	24x14.3x51 mm	24x14.3x51 mm
Similar Bushing Size	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Caster	Offset	No
Caster	Offset	No
Caster	Offset	No

Bushing Design Dimensions (mm)

Bush Type	3	16	16
QTY	4	1	1
OD (A)	AI=48 AII=34	60.3	60.3
ID (B)	24	21.8	21.8
Length (C)	12.5	26.3	26.3
FL (D)
FLOD (E)
C/Tube Qty	2	2	2
C/Tube Size	24x14.3x51	24x14.3x51	24x14.3x51
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here SuperPro Suspensions Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	0.579kg	1.28lbs
Length	5cm	1.97"
Width	21cm	8.27"
Height	15.5cm	6.1"

Misc. Product Information

More Information

SKU	SPF3171K
Kit Contents	6B,2S,1IS,2T
Kits Required	1
Fitting Position	Front Axle
Foot Note 1	Steering Pull Correction Kit
Foot Note 3	Lifetime Warranty
Sub brand	SuperPro SPF
EAN	9317745031710

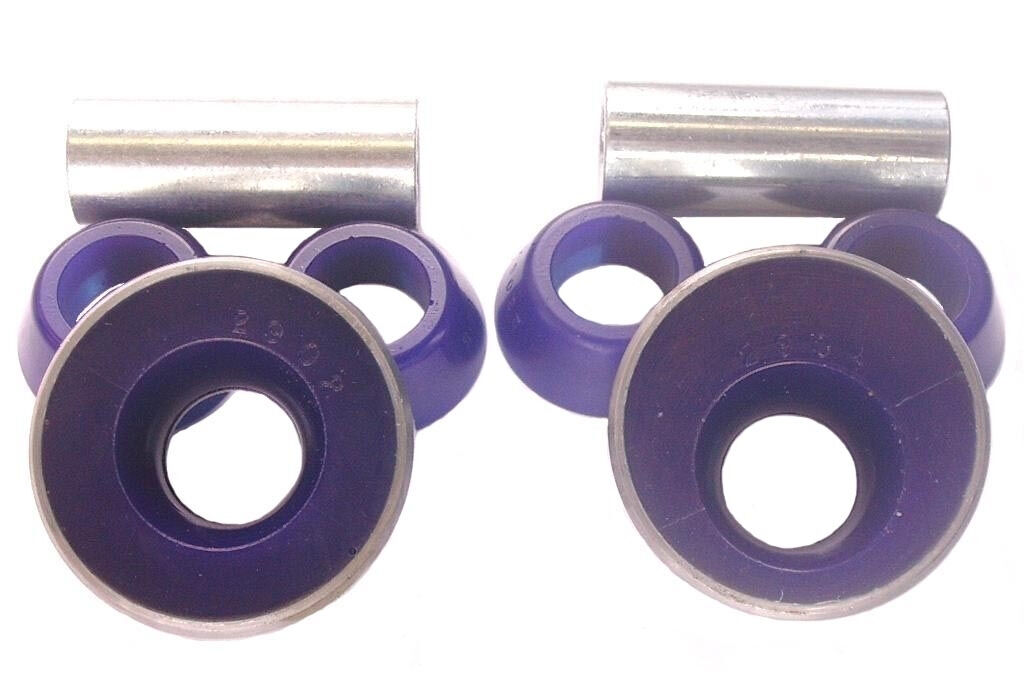

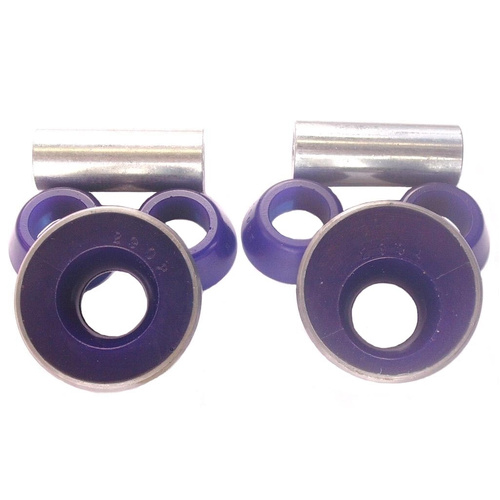

Product Note	Improve suspension geometry and cornering traction; a complete, premium upgrade. Includes: 6 Control Arm Bushings, 2 Tubes, Sleeves & 1 Instruction Sheet
