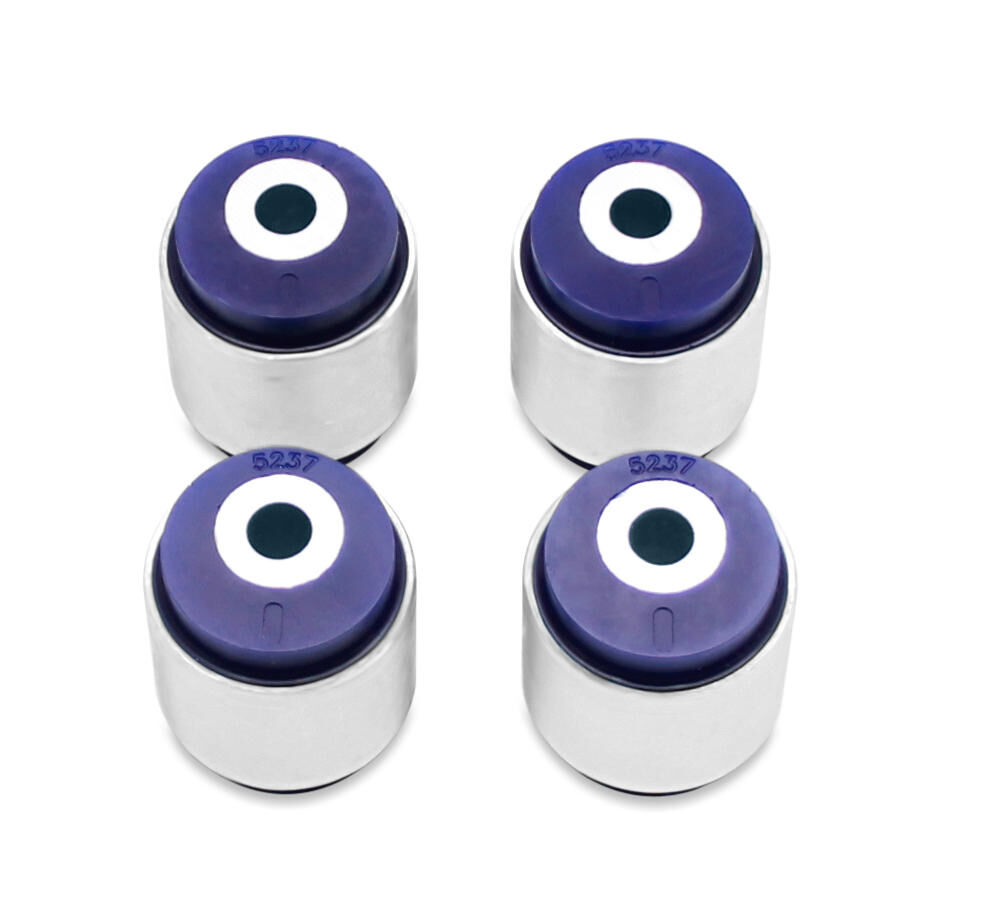

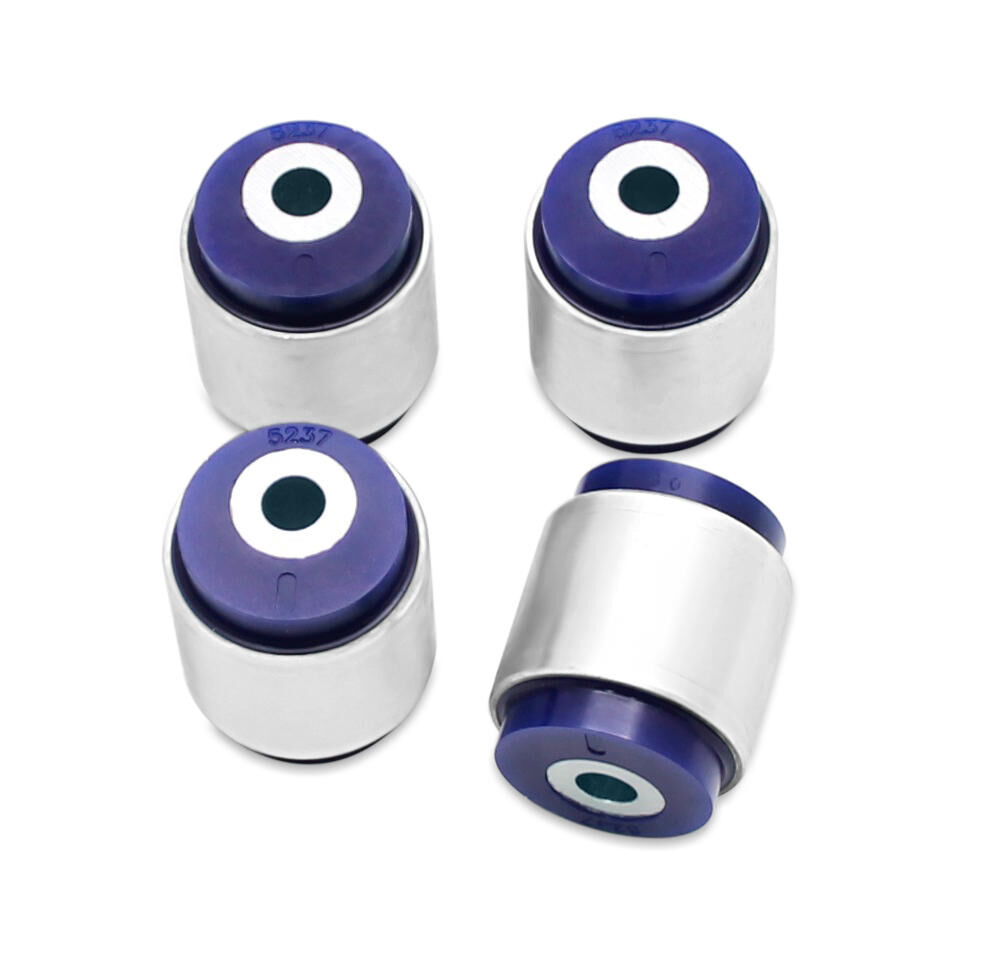

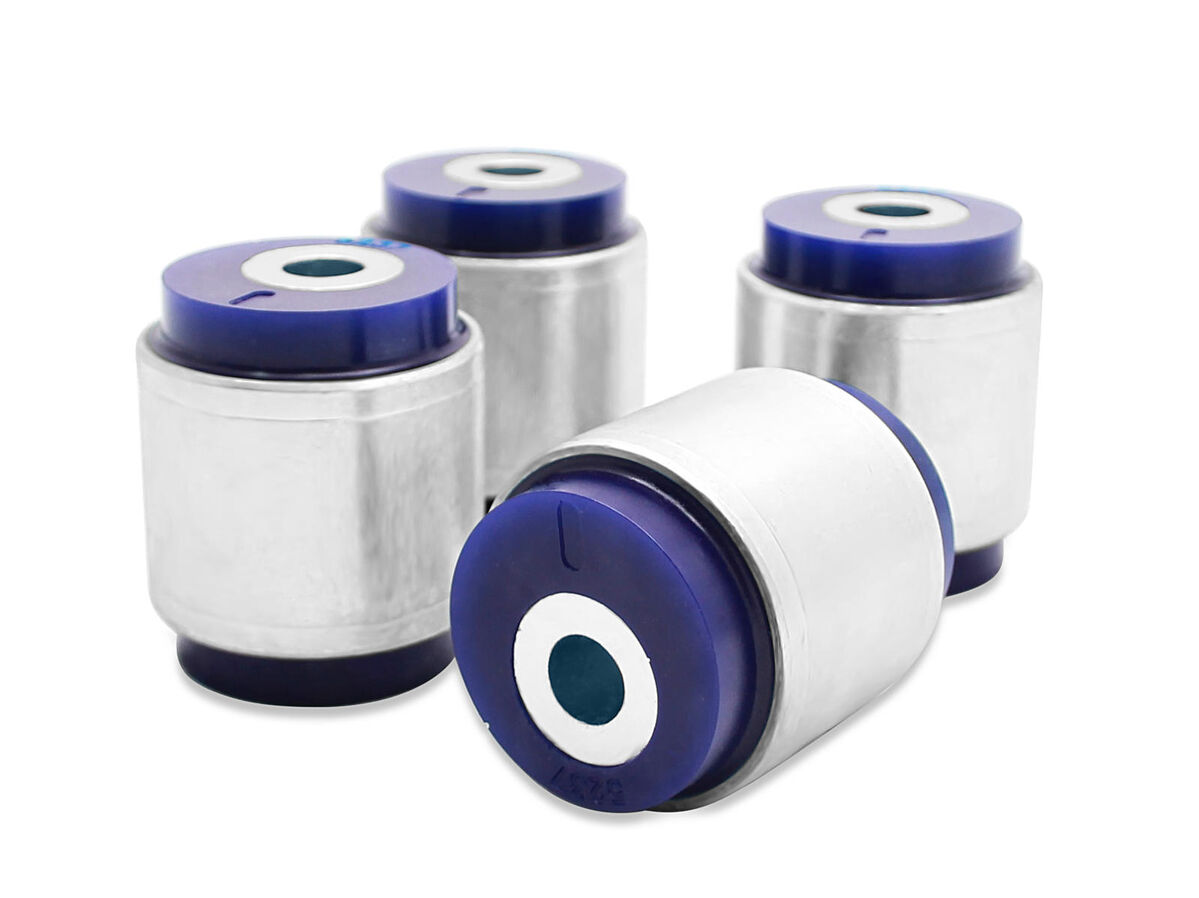

SuperPro Control Arm Bush Kit to suit Suzuki Jimny & Sierra

SKU: SPF5237K

Control arm bushes stabilise the movement of the arms to ensure the correct geometry is maintained in all situations. Worn or rubber bushes in these locations lead to dynamic changes in wheel alignment that effect the handling of a vehicle as well as the tyre life.

SuperPro Bushings solve this issue and are the perfect repair or repair upgrade solution.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 4 mm
OD (A) 51.5 mm
ID (B) 23.8 mm
Length (C) 60 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity 4
C/Tube ODxIDxL 24x12.3x60 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Offset No

Bushing Design Dimensions (mm)

Bush Type 16
QTY 4
OD (A) 51.5
ID (B) 23.8
Length (C) 60.0
FL (D)
FLOD (E)
C/Tube Qty 4
C/Tube Size 24x12.3x60
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here SuperPro Suspensions Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.365kg3.01lbs
Length5cm1.97"
Width26cm10.24"
Height18.5cm7.28"

Misc. Product Information

More Information
SKU IconSKU
SPF5237K
Kit Contents IconKit Contents
1
Kits Required IconKits Required
1
Fitting Position IconFitting Position
Front Axle
Foot Note 3 IconFoot Note 3
lifetime warranty
Sub brand IconSub brand
SuperPro SPF
EAN IconEAN
9317745052371
Product Note IconProduct Note
Holds vehicle alignment, boosting performance; a complete, premium upgrade. Includes: 4 Control Arm Bushings
  • Lifetime Warranty
Brand SuperPro
SKU SPF5237K
Unit Of Measure Kit
