SuperPro Heavy Duty 4WD sway bars offer increased grip, better handling and a more precise driving experience on and off road.

• Lifetime Warranty
• Greater Tyre Grip On and Off Road
• Designed, tested and made in Australia
• Fully adjustable for complete control over your drive
• Heavy duty design built to take a hit off road
• Better handling, sharper steering and less body roll
• High torsional steel to maintain articulation

If you are carrying heavier rear loads or If you want a more precise driving experience on and off road, than upgrading to a Heavy Duty SuperPro 4x4 sway bar is a must!

SuperPro, with over 40 years of experience in the automotive industry has identified that fitting larger sway bars, particularly in the rear, has two main effects, vehicle balance in terms of understeer and oversteer, and increased roll resistance. Both effects can provide increased overall handling and safety benefits when driving 4WD. A larger rear sway bar, or the addition of a rear sway bar, helps in providing more neutral characteristic in the handling. This is due to the increase in roll stiffness at the rear, which changes the loading of the rear wheels under conditions of increased cornering load.

Kit Specifications

Diameter (mm)	18
Diameter (in) Fraction	23/32"
Diameter (in) Decimal	0.708
Material	Solid Spring Steel

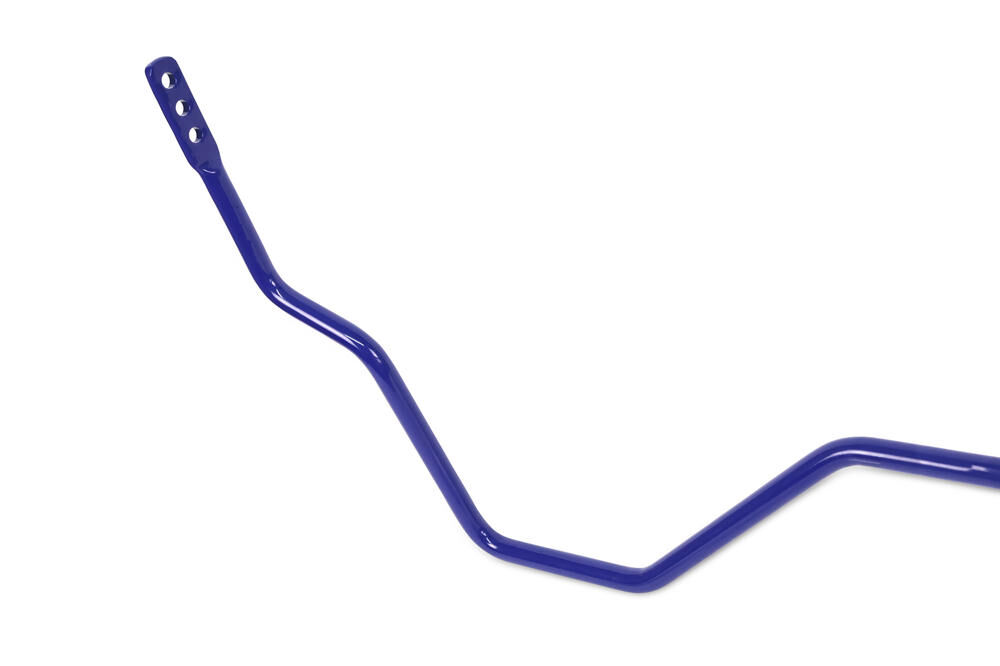

Sway Bar Adjustment Type	3 Point Adjustable

Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.

Sway Bar Adjustment Settings

Setting	Effective Bar Size (mm)	% Change vs Previous Setting	% Stiffer Than OE
Soft - Comfort / low grip	17 mm	-	+27.4%
Medium - Balanced	18 mm	+25.7%	+60.2%
Hard - Maximum roll control	19 mm	+24.1%	+98.9%

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	4.4kg	9.7lbs
Length	150cm	59.06"
Width	20cm	7.87"
Height	50cm	19.69"

Misc. Product Information

More Information

SKU	RC0027RZ-18
Kit Contents	1SB,1 Fitting Kit
Kits Required	1
Fitting Position	Rear Axle
Foot Note 1	can't be used with Airbags fitted in the rear
Foot Note 2	does not suit vehicles with diff mounted proportioning valve
Foot Note 3	Lifetime Warranty
Sub brand	Roll Control
EAN	9317745770206

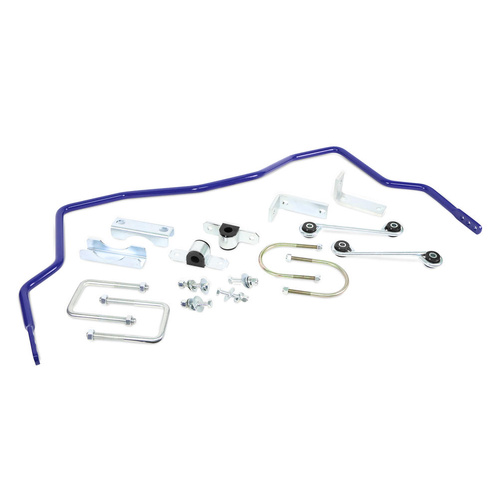

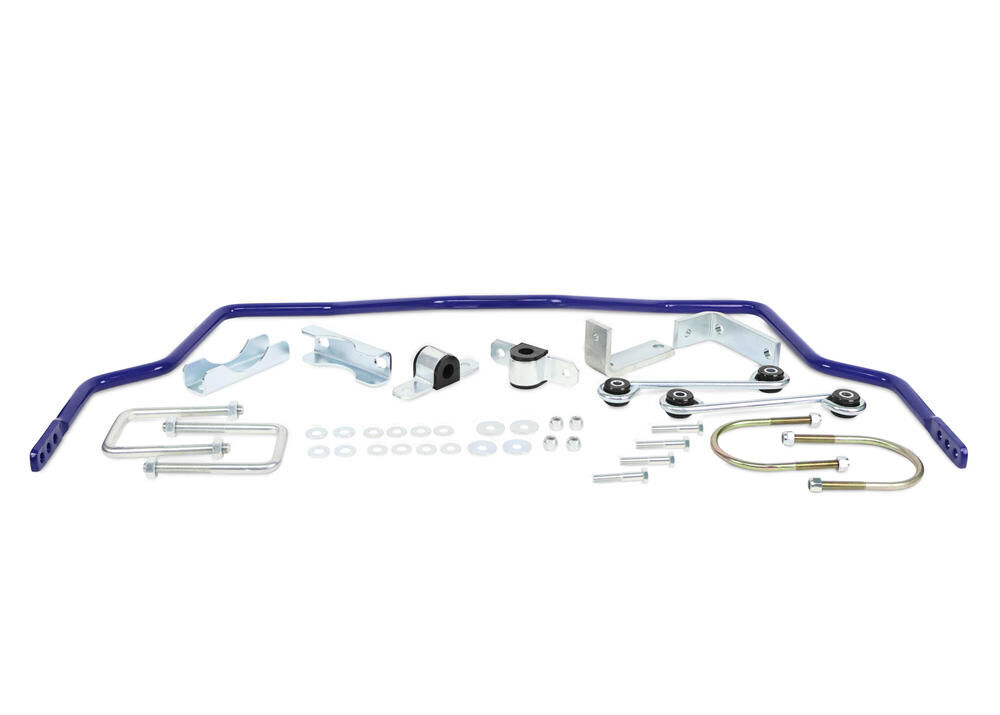

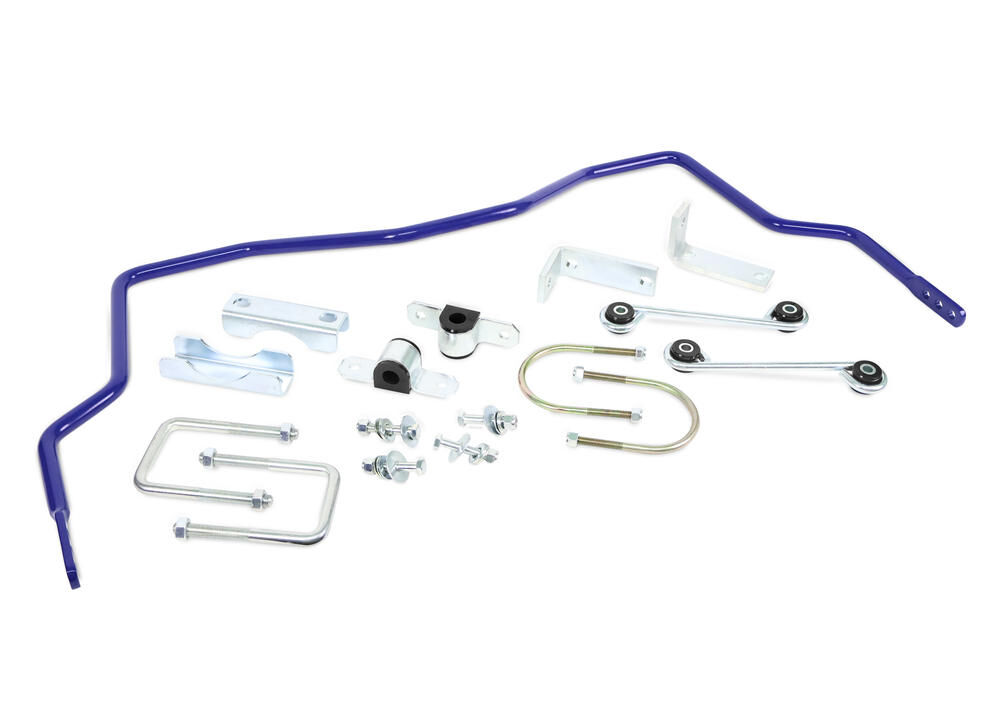

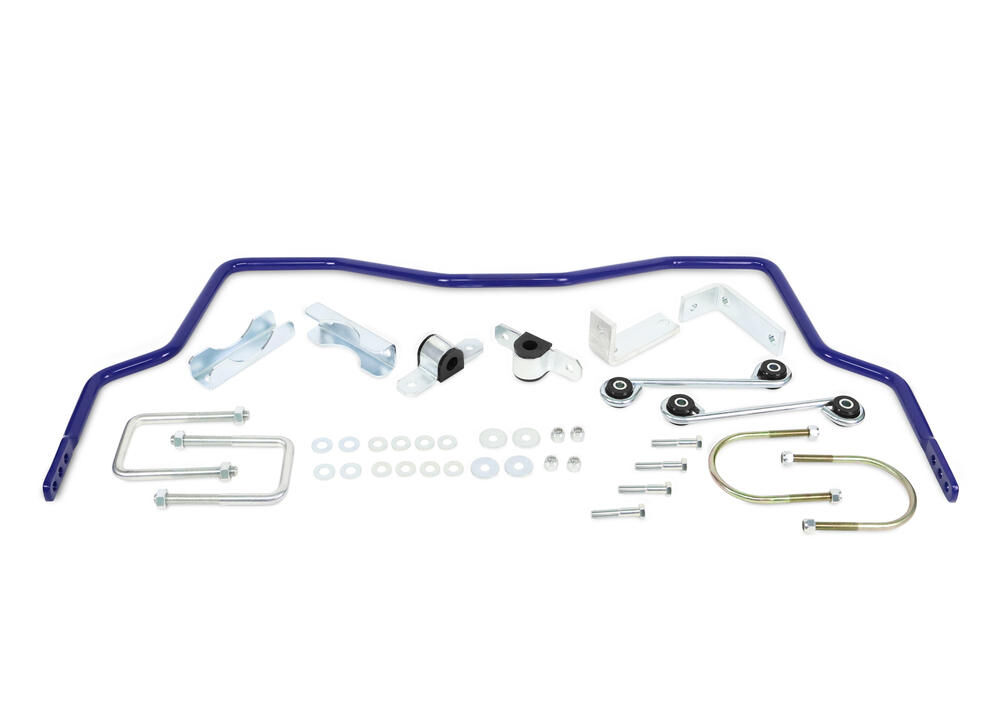

Product Note	Reduces vehicle sway and improves control in corners; a complete, premium upgrade. Includes: 18mm Heavy Duty 3 Position Blade Adjustable Rear Sway Bar & 1 Fitting Kit
