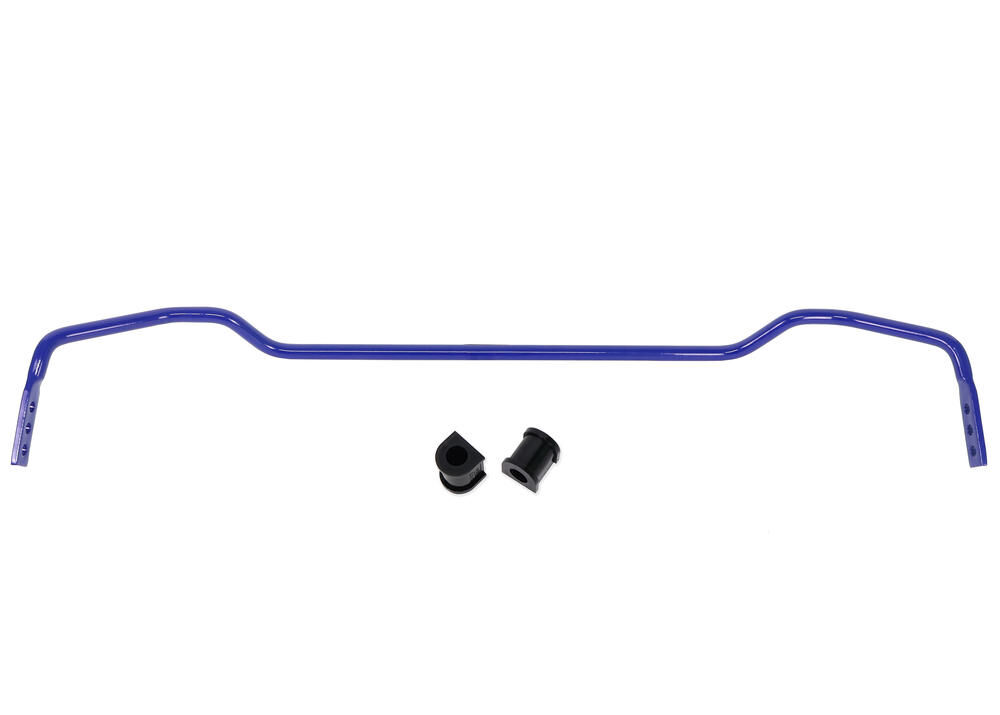

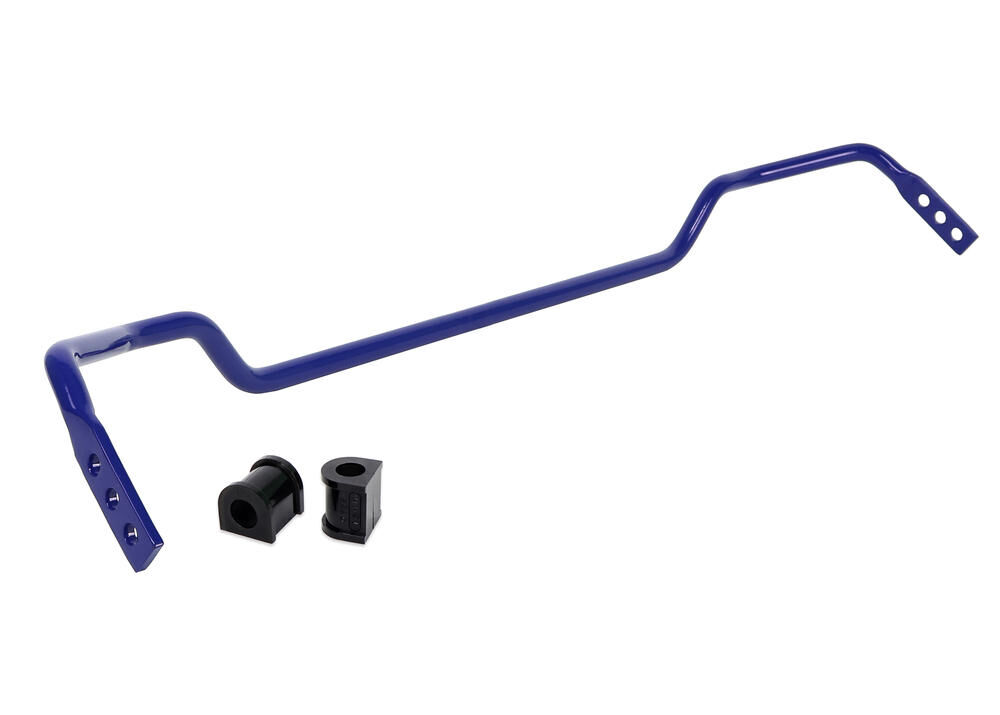

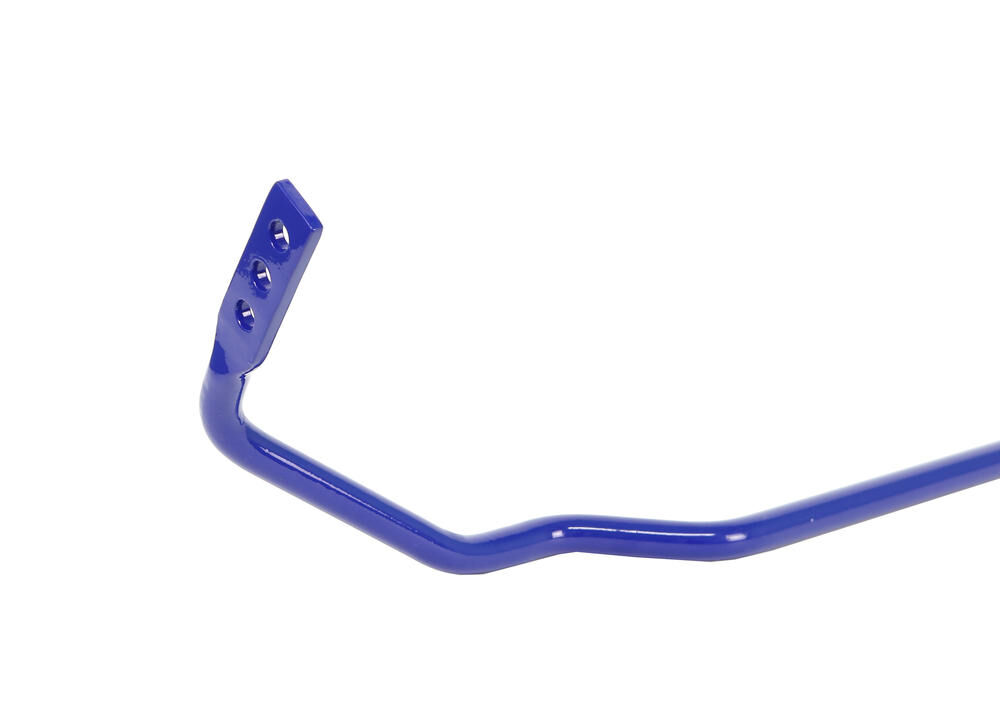

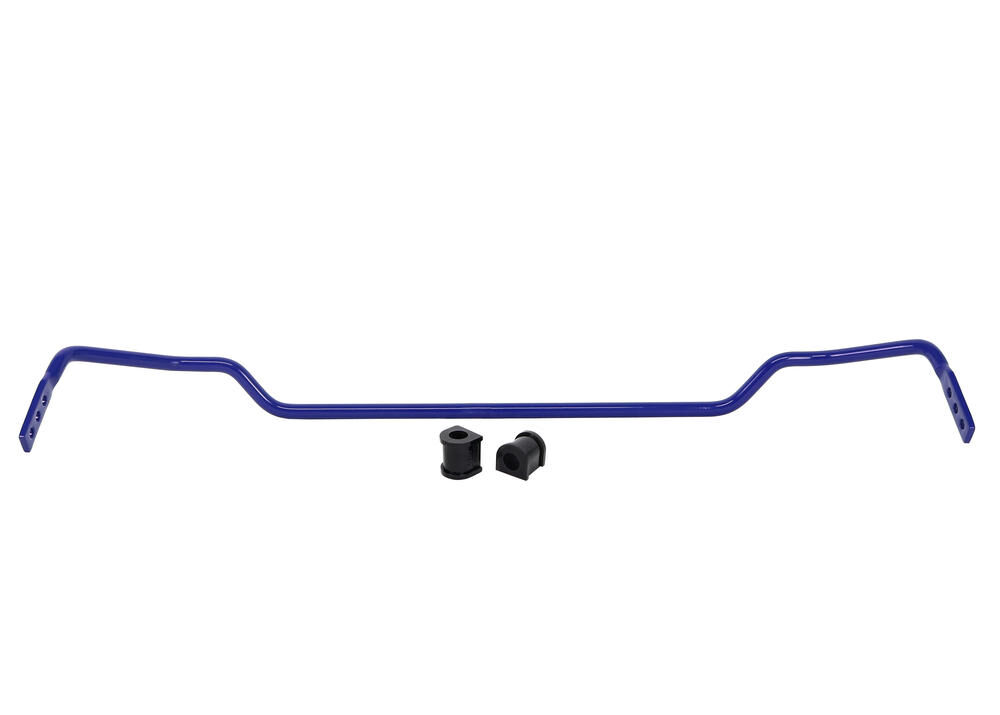

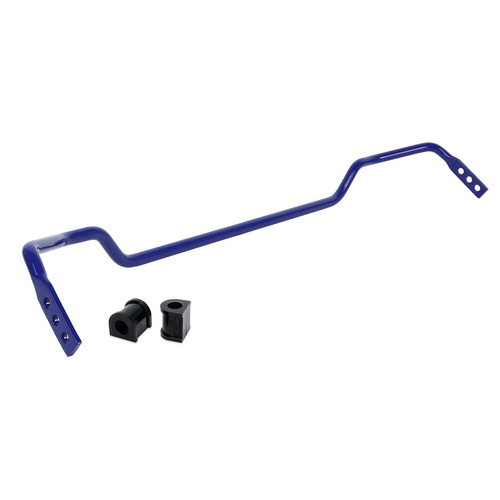

SuperPro 16mm Heavy Duty 3 Position Blade Adjustable Rear Sway Bar to suit Mazda MX-5 NC
SKU: RC0049RZ-16
SKU: RC0049RZ-16
- Makes handling more predictable and reliable; a complete, premium upgrade. Includes: 16mm Heavy Duty 3 Position Blade Adjustable Rear Sway Bar & 2 Bushings
SuperPro's sway bar range has been designed to provide daily, track and hobbyist cars with better driving characteristics, increasing your vehicles driving performance.
- Lifetime Warranty
- Greater Tyre Grip in all driving situations
- Designed, tested and made in Australia
- Better handling, sharper steering and less body roll
- Race-spec Chromoly with progressive design
- 30% Lighter lower unsprung weight
A SuperPro sway bar is a simple and effective upgrade for your daily or track vehicle enhancing its driving performance and handling capabilities. Designed to ensure your car has the ability to maintain maximum tyre contact with the road at all times.
SuperPro's sway bar engineering, manufacturing and technological expertise ensures better car performance and safety when cornering at speed or under load. SuperPro's sway bar range ensures that your vehicle load is distributed evenly over your tyres delivering longer tyre life and a better contact grip leading to a more comfortable driving experience. With the added bonus of precision driving improvements!
Kit Specifications
| Diameter (mm) | 16 |
|---|---|
| Diameter (in) Fraction | 5/8" |
| Diameter (in) Decimal | 0.629 |
| Material | Solid Spring Steel |
| Sway Bar Adjustment Type | 3 Point Adjustable |
Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.
Sway Bar Adjustment Settings
| Setting | Effective Bar Size (mm) | % Change vs Previous Setting | % Stiffer Than OE |
|---|---|---|---|
| Soft - Comfort / low grip | 15 mm | - | +245.8% |
| Medium - Balanced | 16 mm | +29.5% | +347.6% |
| Hard - Maximum roll control | 17 mm | +27.4% | +470.5% |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 2.1kg | 4.63lbs |
| Length | 120cm | 47.24" |
| Width | 20cm | 7.87" |
| Height | 10cm | 3.94" |
Misc. Product Information
 SKU | RC0049RZ-16 |
|---|---|
 Kit Contents | 1 Sway Bar, 2 Bushings |
| Kits Required | 1 |
 Fitting Position | Rear Axle |
| Foot Note 3 | Lifetime Warranty |
| Sub brand | Roll Control |
| EAN | 9317745771791 |
| Product Note | Makes handling more predictable and reliable; a complete, premium upgrade. Includes: 16mm Heavy Duty 3 Position Blade Adjustable Rear Sway Bar & 2 Bushings |
- Lifetime Warranty
| Brand | SuperPro |
| SKU | RC0049RZ-16 |
