Mazda BT-50 / Ford PX Ranger Koni Raid 2" Lift Kit

SKU: MAZKIT-045

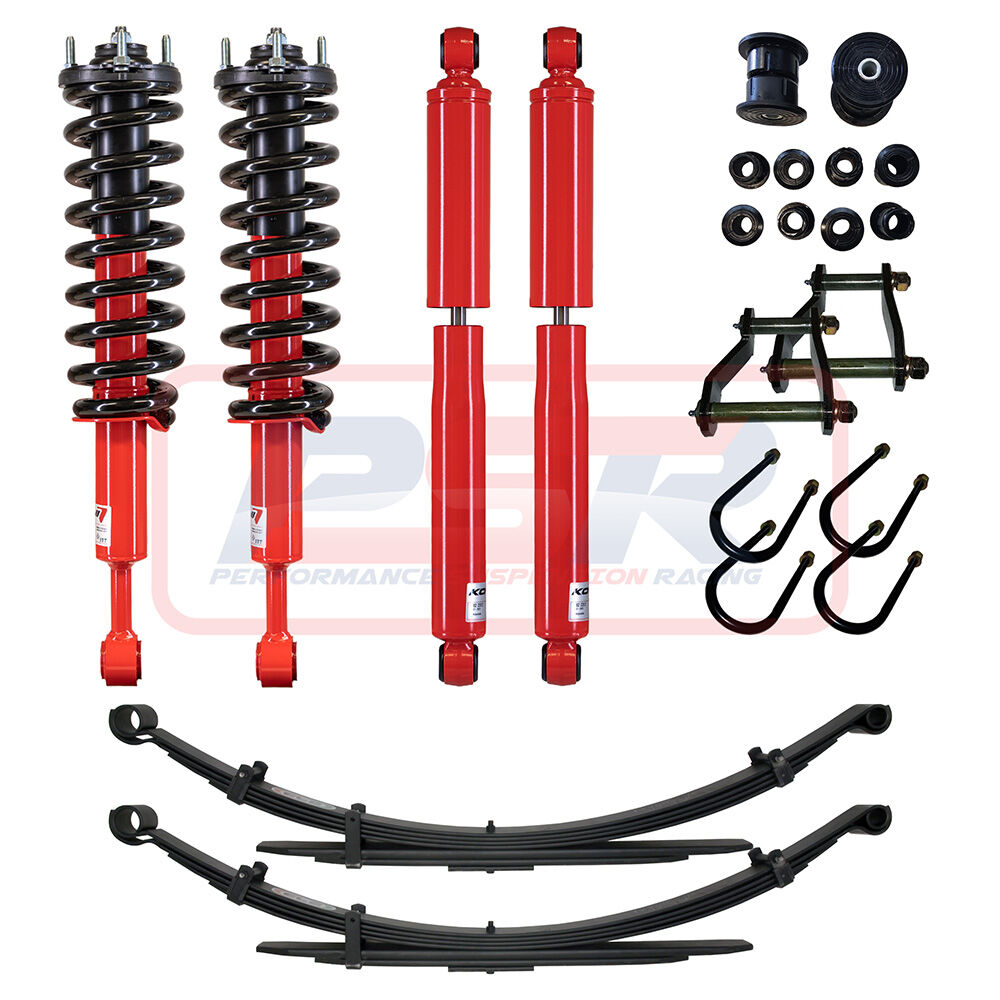

This kit contains Koni Raid 88-Series front struts pre-assembled with PSR coil springs and HD strut tops, Koni Raid 90-Series rear shocks, leaf springs, bush kit greasable shackles and U-bolts.

Koni 88-Series Shock Absorber Key Features:

  • Twin-tube hydraulic, oil filled
  • 55mm outer body diameter
  • 36mm piston with PTFE coated band
  • Heat resistant viton seals
  • Ideal for off road and desert situations
  • Rebound adjustable and serviceable

Koni 90-Series Shock Absorber Key Features:

  • Twin-tube hydraulic, oil filled
  • 70mm outer body diameter
  • 42mm piston with PTFE coated band
  • Hard chromed 18mm rod
  • Heat resistant viton seals
  • Large oil capacity for efficient heat dissipation
  • Proven in the Simpson Desert, Canning Stock Route and Dakar Rally



Please be aware that all assembled struts are dispatched at a height that from our experience is set to the advertised height in the product listing. All leaf springs are manufactured to the height described with the constant load advertised on the vehicle. We cannot be held accountable for variations on vehicles and/or the variation of weights of accessories that would require further adjustments of heights once installed. Any height adjustment required to achieve the desired ride height is at the installers discretion and is at no way our responsibility.

Please click here to see product warranty information.

Brand Performance Suspension Racing
SKU MAZKIT-045
Unit Of Measure Kit
