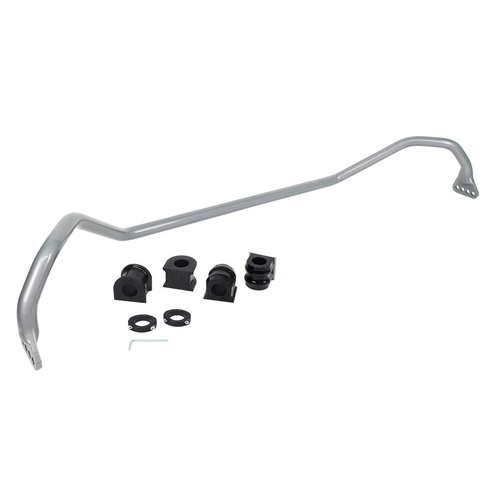

Whiteline Front Sway Bar - 26mm 4 Point Adjustable to Suit Holden Commodore VE, VF and HSV

SKU: BHF62Z

Benefit Note: Engineered to 'Activate More Grip', sway bars are principally designed to reduce body roll or sway. By reducing body roll, lateral loads are spread more evenly across the tyres thereby increasing cornering grip and improving outright performance. This Whiteline 26mm 4 point adjustable sway bar = more grip = better handling = outright performance - it's the best dollar for dollar handling improvement you can make to your vehicle. In fact, benefits extend to improvements in handling, safety and tyre wear without affecting ride quality or comfort.


Kit Specifications

Diameter (mm) 26
Diameter (in) Fraction 1 1/32"
Diameter (in) Decimal 1.023
Material Solid Spring Steel
Sway Bar Adjustment Type 4 Point Adjustable

Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.


Sway Bar Adjustment Settings

Setting Effective Bar Size (mm) % Change vs Previous Setting % Stiffer Than OE
Soft - Comfort / low grip 24 mm - -46.0%
Medium - Balanced 25 mm +17.7% -36.4%
Intermediate - Sport 26 mm +17.0% -25.7%
Hard - Maximum roll control 27 mm +16.3% -13.5%

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight6.8kg14.99lbs
Length170cm66.93"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUBHF62Z
Components Per1 Sway Bar, 2 Bushings, 2 Lateral Locks
Kits Required1
Sub brandPerformance
Product NoteImproves stability and control, transforming vehicle performance the perfect, complete upgrade. Includes: 1 Sway Bar, 2 Bushings, 2 Lateral Locks
EAN9319924347155
  • Lifetime Warranty
Brand Whiteline
SKU BHF62Z
