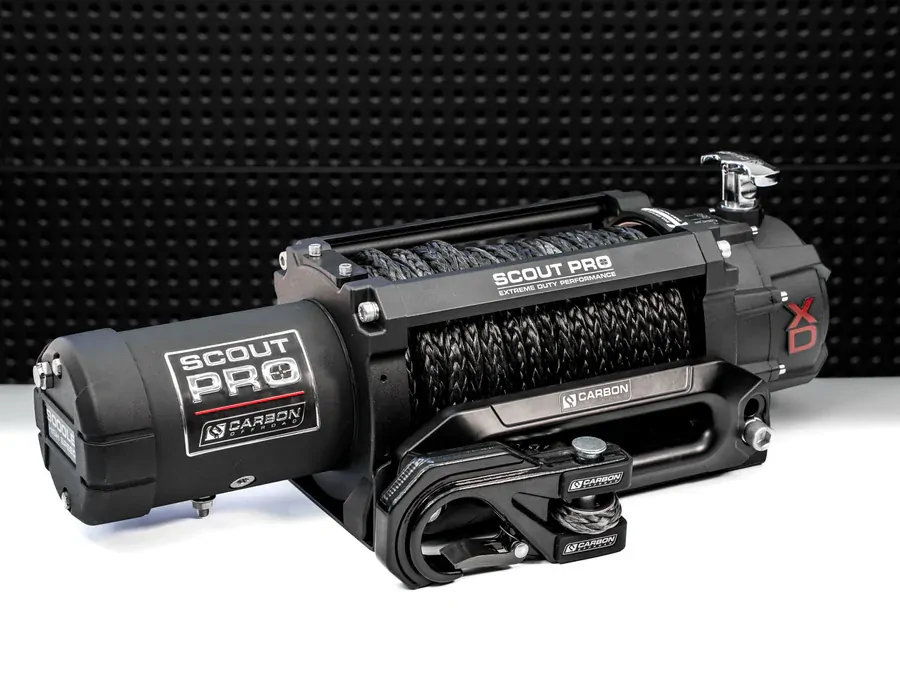

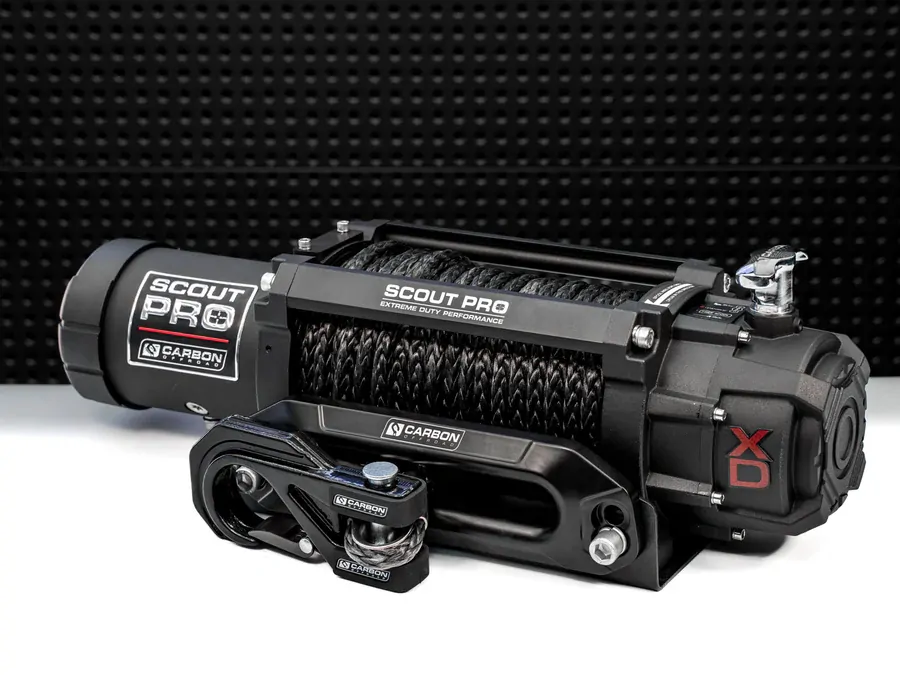

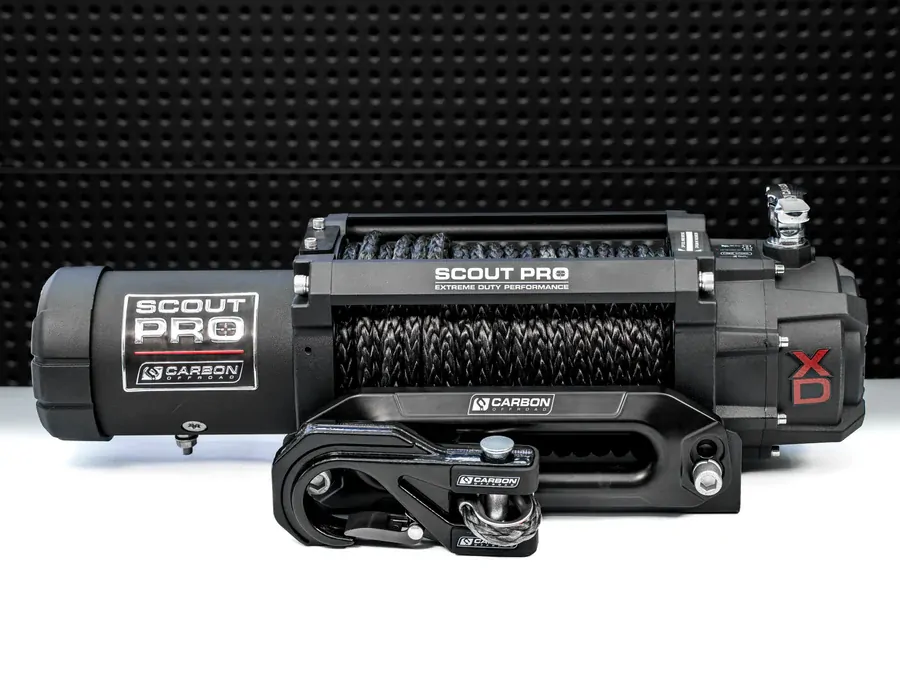

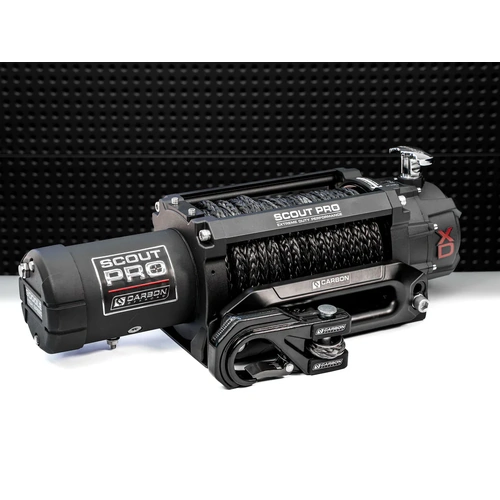

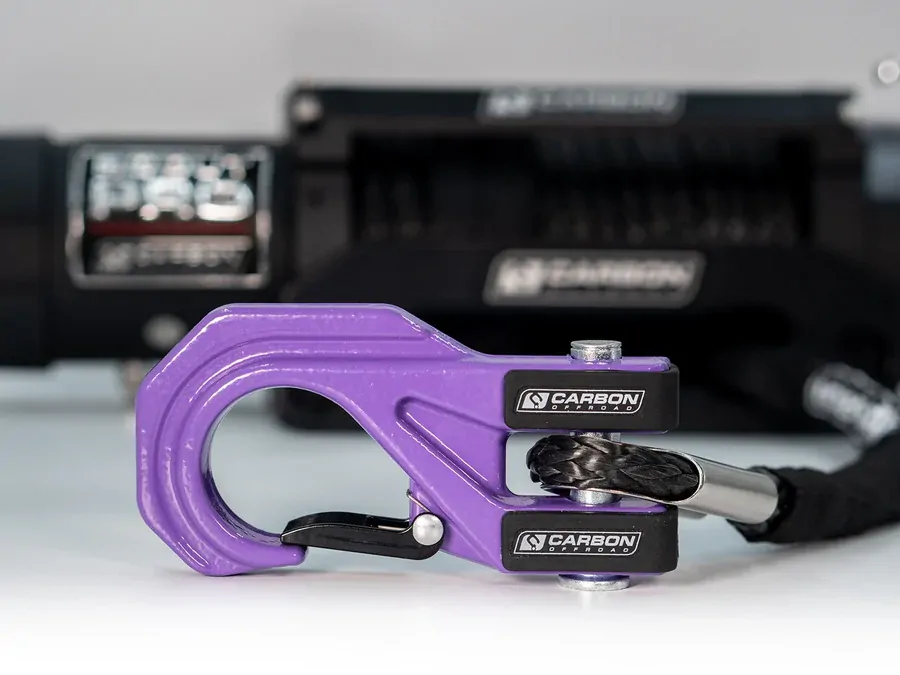

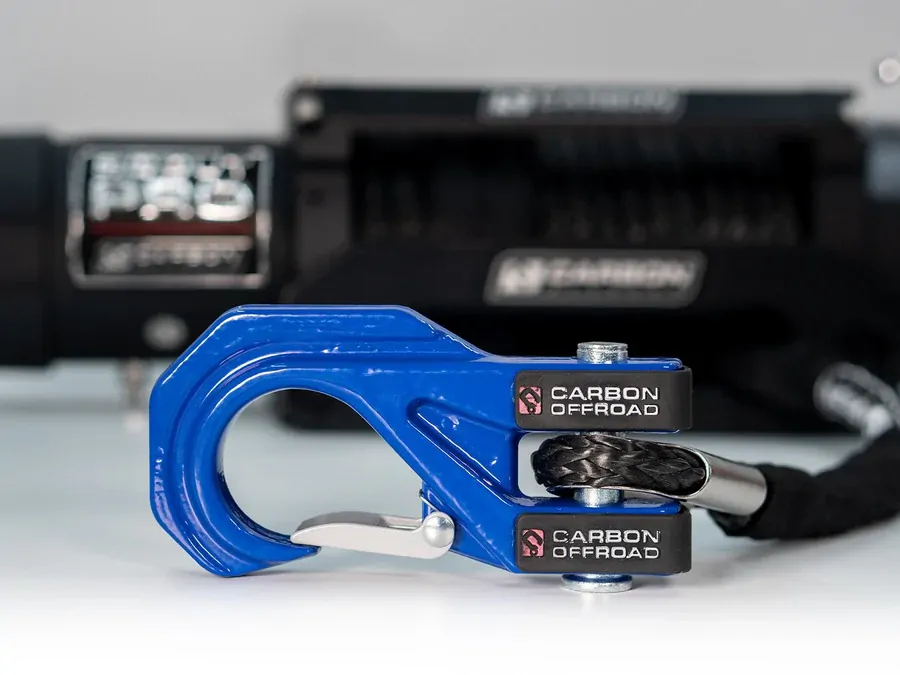

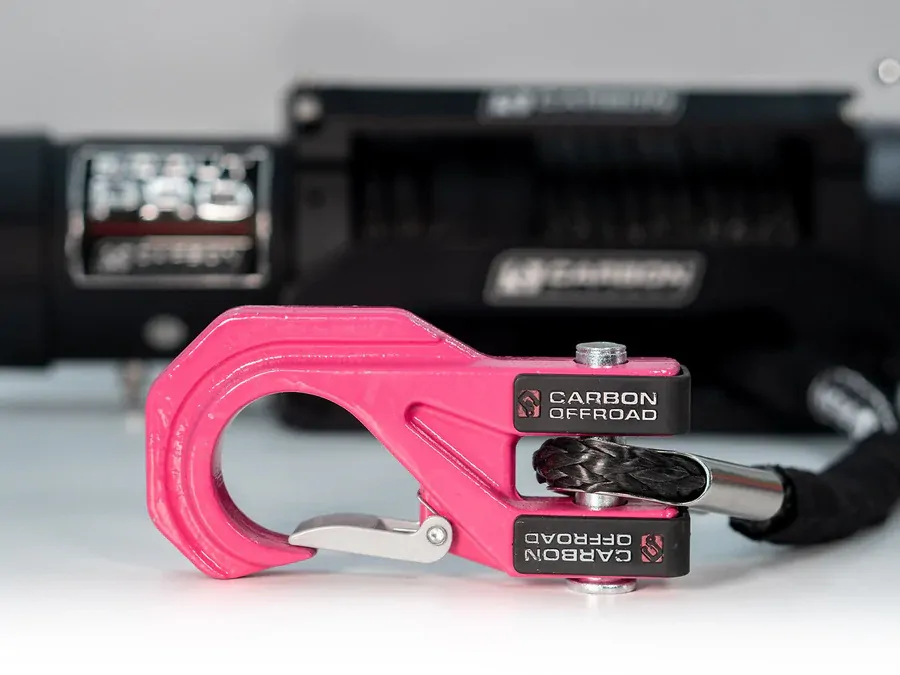

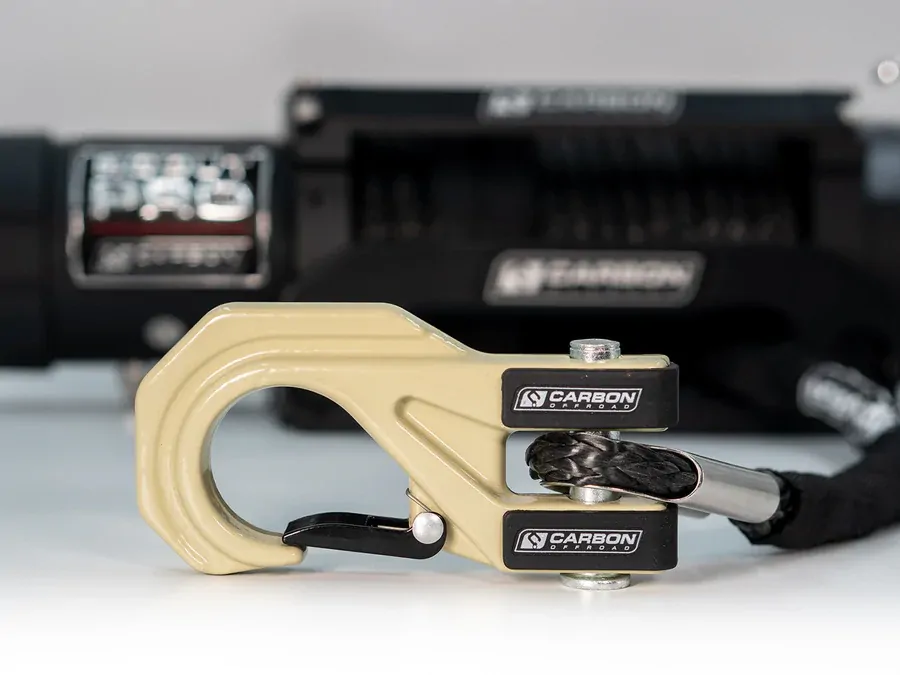

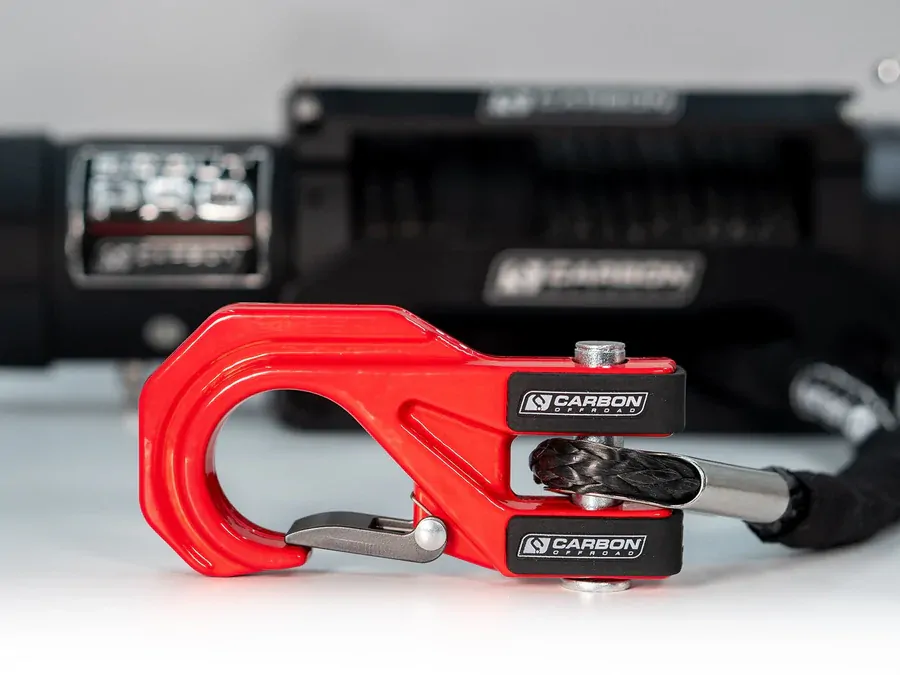

Carbon Scout Pro - 15000lb Winch V3 with Black Mega Hook

SKU: CW-XD15BLK

The Carbon Offroad Scout Pro 15K is a powerhouse built to bridge the gap between mid-size 4x4 winches and full-blown truck-grade brutes.

Running a slide-in camper? Fully loaded for a trip around Aus? Driving a fully loaded RAM 2500, Silverado HD, F-250, or an overland-ready LandCruiser that's well past a 12K winch's comfort zone? If your rig needs more muscle without stepping up to our 20K truck winch, this is your sweet spot.

From the slick rock climbs of Moab and the boulder-strewn Rubicon Trail to the sandstone ledges of Sand Hollow and the mud bogs of Tassie, the Scout Pro 15K has been tested and proven where it counts.

The Scout Pro 15K delivers the strength, durability, and confidence you need to handle the gnarliest recoveries and keep your adventure moving.

Our Extreme Duty Performance Series winches are built for frequent winching in harsh off-road conditions, perfect for rigs that are heavy, fully kitted, or towing off-road.

Did you know? "Module" is the unit that measures gear size - it's the ratio of the reference diameter of the gear divided by the number of teeth.

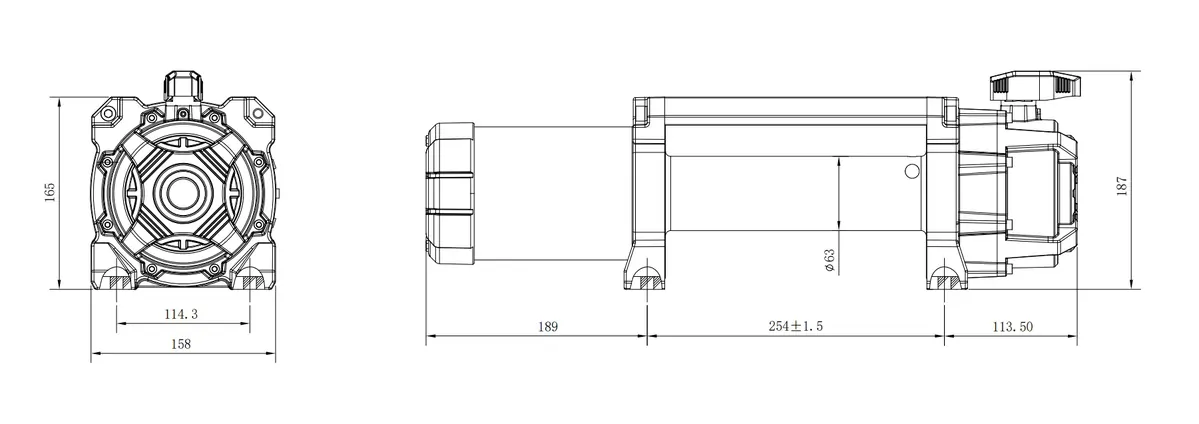

The Scout Pro series shares the same proven 2023 Version 3 winch chassis as our legendary 12K, meaning it fits most larger 4x4s and overland wagons. With its longer 7.0HP motor, check the tech drawings to confirm clearance and fitment on your mount. Most full-size trucks like RAM, F-Series, and Silverado will fit with ease, but any dual-cab ute, 70 Series, 200 Series, or similar wagon should be measured up before purchase. Fitment remains the responsibility of the installer or end user.

Please click here to see product warranty information.

Brand Carbon Offroad
SKU CW-XD15BLK
Unit Of Measure Each

Specifications

  • Part number: CW-XD15
  • Rated line pull: 15000 lbs, (6803kg) single-line
  • Motor: 12V DC 7 HP series wound motor (24V option available)
  • Remote Control: Wired with 3.6m lead
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 218:1
  • Rotating Ring Gear
  • Brake: Automatic brake in the motor bracket
  • Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • 5 Year Water Ingress Protection Warranty

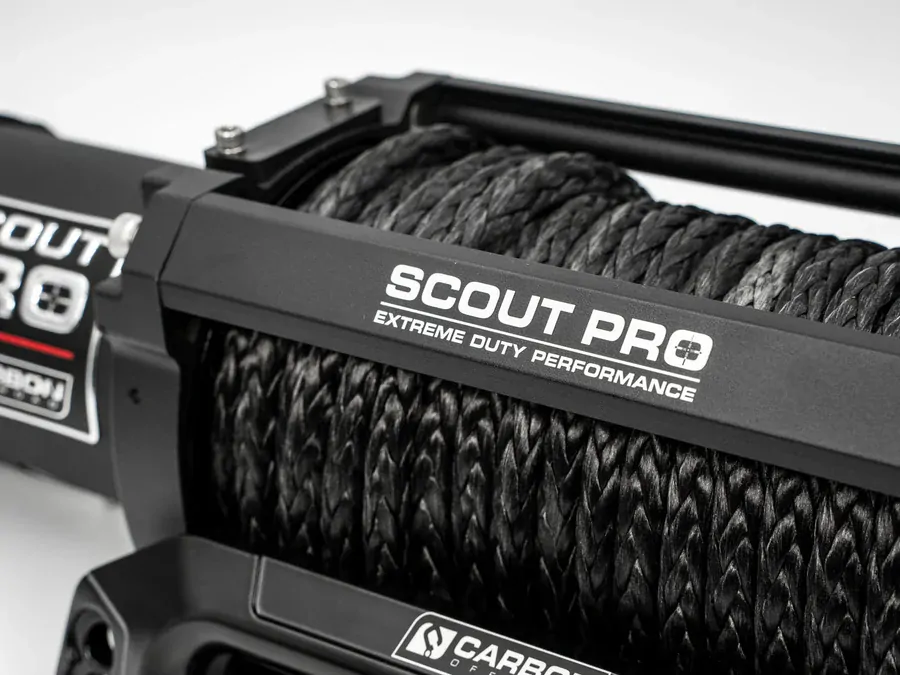

  • Synthetic Rope: 24m x 11mm diameter
  • Drum Diameter/Length: 63.5mm x 224mm
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 535 x 158 x 187mm
  • Packing Dimensions (L x W x H): 580 x 200 x 220mm
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 26.7



12V DC Performance Specs

Line Pull

Lbs.(Kgs.)

Line Speed

FT./min(M/min.)

Motor Current

(Amps)

Rated line pull

Lbs(Kgs.)

0

27.9 (8.5)

65 amps

1/15000 (6810)

2000 (910)

11.8 (3.6)

120 amps

2/12700 (5765)

6000 (2720) 9.5 (2.9)

160 amps

3/10770 (4890)

10000 (4540)

6.6 (2.0)

215 amps

4/9130 (4145)

13000 (5900) 4.6 (1.4)

265 amps



15000 (6818)

3.6 (1.1)

380 amps
