Carbon Winches 12K 12000LB Electric Winch with Synthetic Rope

SKU: CW-12K

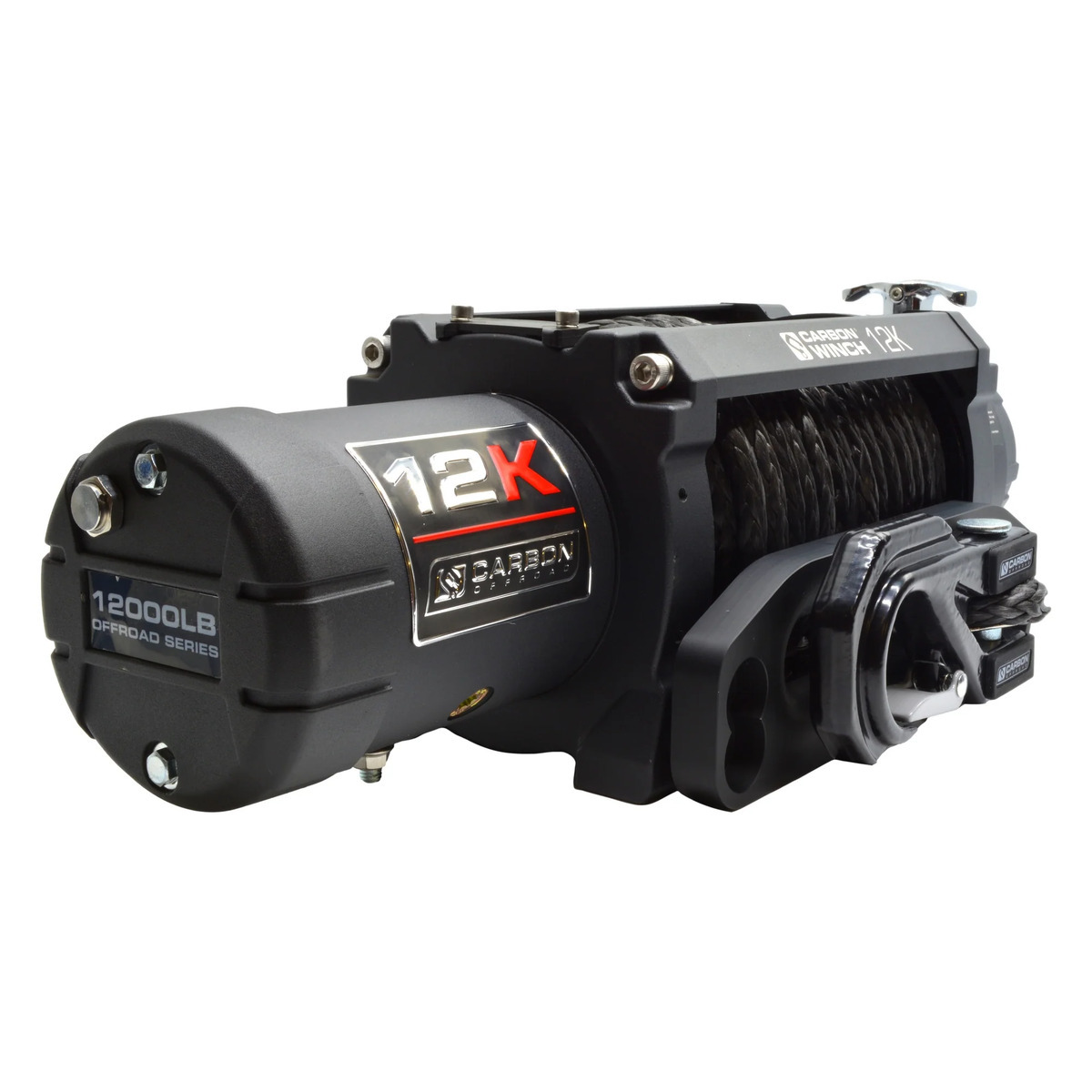

Carbon Winch 12k 12000lb Electric 12v 4x4 Winch

Version 3 2023 Model - Now Available IP68 Waterproof



The all new feature packed Ver.3 12000lb Winch from Carbon Offroad delivers a 4wd winch package boasting many extras to make the installation and use of your winch that much easier. The Carbon Winch features a newly upgraded rating of IP68, so your river crossings and mud runs are stress free, featuring a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch gets your recovery done with ease by using the wireless or wired remote(both included) from the safety and convenience of your driver's seat. IP68 meaning - Ingress Protection - 6 - Can withstand dust and dirt. 8 - Can be submerged under freshwater for 30 minutes up to 1.5mtrs depth, but not during operation.



You want the reliability of a winch that will perform when you need it to, time after time.

With a reliable 6.2HP motor and a tough 3 stage planetary gearbox the Carbon Winch will get you back on your journey and get you to your destination. The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to get you back winching if the need arises.



If you're capable with a few basic tools, installing a Carbon Winch is easy

With step by step instructions and many extras included to get the job done. We also thought of your safety by including an isolator switch with extra cabling, so when you're not using your winch it's safely turned off and no live power wires are at the front of your vehicle.

Mounting the control box is easy with a multi fit system that can either be mounted on the winch, above the winch drum or motor . Or with the bracket can be mounted to the vehicle or on top of your bullbar. As you know, "looks" are a big part of any 4x4 build, so we have included in your winch kit an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our own robust designed hook that makes you stand out from the crowd. Weight is a serious consideration with all 4wd accessories, the Carbon Winch is super lightweight at only 19.0kg



Carbon Winches Warranty

  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • 5 Year Water Ingress Protection Warranty



Winch Design Features

  • Designed by an Australian offroad business for the harsh Aussie and international conditions
  • Fully sealed to resist water, dirt and dust ingress into motor, drum and gearbox mechanisms. Ver.3 series was upgraded to IP68 ingress protection.
  • 12000lb pulling power with a fast line pull ratio of 216:1 using a triple planetary gear set
  • 6.2HP series wound 12 volt electric motor (24 volt option)
  • The Battery Isolator Switch supplied with the kit must be installed. Would you have a non-isolated or fused battery cable running to the back of your vehicle for towing or other Auxiliary uses? No. The winch is the same, it's power feed must be isolated to protect you and your car in the event of a multitude of unforeseen circumstances that can occur, such as a frontal accident, an unfused 500 amp cable can catch fire extremely fast when shorted out against a body component.
  • Wireless remote control unit with a lanyard- FULLY SEALED RECEIVER UNIT built into the control box. Simple to activate by holding both buttons down for 3 seconds to activate the remote control and turns off after 90 seconds of inactivity.
  • The Rotating ring gear clutch design is used for easy low drag free spool. This is arguably the easiest winch to free spool on the market.
  • Electroplated planetary gear sets for long life
  • 3 layer membrane breather unit pre-fitted to the electric motor to allow condensation to evaporate and equalise pressure during heat cycles.
  • Multi Fit Fairlead- there is no need to worry about which suits your bullbar! Simply install as standard fitment or move up to offset the rope outlet by 20mm.
  • All other internals are fully zinc electroplated for corrosion protection.
  • High performance motor brushes with copper impregnated contacts and corrosion plated brush mounts.
  • Smooth ball bearing motor operation with a fully balanced motor armature for superior performance.
  • Utilising a hoist style brake unit mounted to the drum end plate, this provides superior holding power by applying mechanical braking through the gear train with no heat generated in the drum. With no contact to the drum means there is no risk of heat damage to the synthetic rope.
  • 4 position mounting for the control box bracket over the motor, over the drum, on top for flat mounting plates and in front of the winch for the top mounting control box when the winch is mounted vertically. Alternatively, 500mm cables allow remote mounting of the control box separately to the winch



Technical features

Understanding the tech features of the winch will help you to decide if this winch is suitable for your requirements. From line speed to dimensions all specifications are important in helping you to understand what you are getting.

Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user.



What do you get in the kit?

  • Carbon 12000lb Winch (6.2HP motor, 216:1 gear ratio)
  • 24m x 10mm high strength synthetic winch rope
  • 1 x Carbon winch hook
  • 1 x 600A solenoid box Inc - all battery cables, wireless remote receiver, multi-fit mount
  • 1 x long black battery cable
  • 1 x Isolator switch
  • 1 x battery to isolator switch cable
  • 1 x Wireless remote
  • 1 x Wired remote
  • 1 x Multifit CNC Alloy fairlead (offset and standard position)
  • 4 x Mounting bolts
  • 3 x Allen keys
  • 2 x additional longer mounting bolts (fairlead mounting)
  • 2 x additional nuts for remote mounting solenoid box
  • 1 x Hook hand saver strap
  • 1 x Carbon lanyard
  • 1 x Carbon stubby cooler
  • Installation manual Included
  • Winch Dimensions ( L x W x H ): 21.7 x 6.3 x 6.8" (552 x 160 x 172mm )
  • Packing Dimensions ( L x W x H ): 24.2 x 14.5 x 9.8" ( 615 x 370 x 250mm )
  • Winch weight with synthetic rope attached: VERSION 3 - 19.0KG
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg

Please click here to see product warranty information.

Brand Carbon Offroad
SKU CW-12K
Unit Of Measure Each

Specifications

  • Part number: CW-12K
  • Rated line pull: 12000 lbs, (5450 kg) single-line
  • Motor: 12V DC 6.2HP series wound motor
  • Remote Control: Remote Switch, 12ft (3.7m) lead.
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary.
  • Gear Ratio: 216:1
  • Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
  • Brake: Full load automatic brake installed in the motor housing end plate. No heat in the drum.
  • Drum Diameter/Length: 64mm x 224mm
  • Synthetic Rope:24m x 10mm diameter
  • Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
  • Recommended Battery: 650 CCA minimum for winching
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Winch Dimensions ( L x W x H ): 21.7 x 6.3 x 6.8" (552 x 160 x 172mm )
  • Packing Dimensions( L x W x H ): 24.2 x 14.5 x 9.8" ( 615 x 370 x 250mm )
  • Winch weight with synthetic rope attached: VERSION 3 - 19.0KG
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg



12V DC performance specs (first layer of drum)

Line Pull

Lbs.(Kgs.)

Line Speed

FT./min(M/min.)

Motor

Current

Pull by layer

layer/Lbs(Kgs.)

0

43.3(13.2)

70 amps

1/12,000 (5450)

2000 (910)

11.5 (3.5)

130 amps

2/9800 (4450)

4000 (1810)

9.2(2.8)

170 amps

3/8300 (3770)

6000 (2720)

7.9 (2.4)

220 amps

4/7200 (3270)

8000 (3630)

6.9 (2.1)

265 amps



10000 (4540)

5.6 (1.7)

320 amps



12000 (5450)

4.6 (1.4)

390 amps
